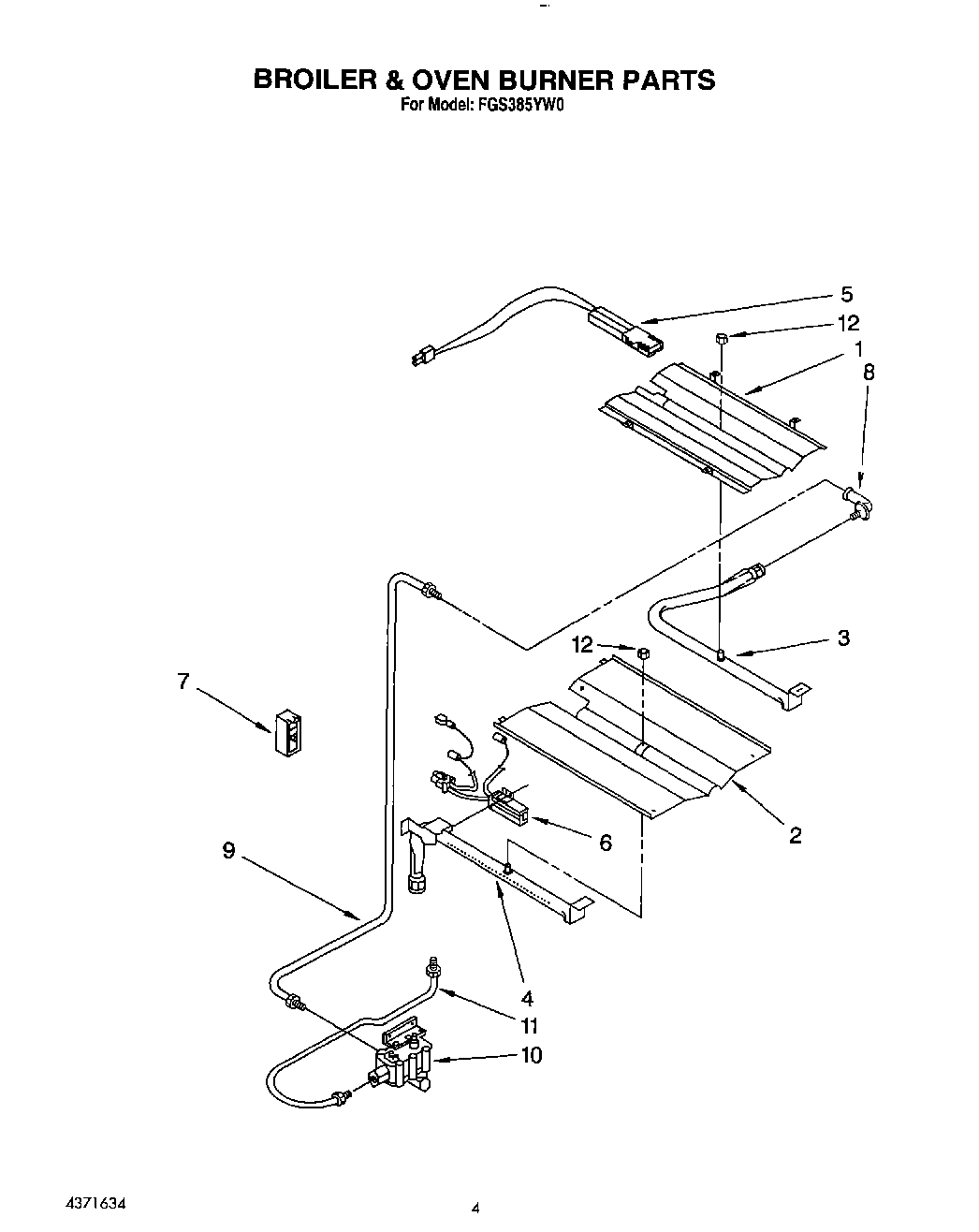

FGS385YW0 04 – BROILER & OVEN BURNER

Products

Position	Product
1	Baffle, Broiler Burner
2	Baffle, Oven Burner
3	Burner, Broiler
4	Burner, Oven
5	WP9751123 Whirlpool Oven Igniter
6	814269 Whirlpool Oven Flat Igniter
7	Module, Spark
8	Mixer, Elbow
9	Tubing, Valve To Mixing Elbow
10	Valve, Safety
11	Tubing, Valve To Regulator
12	Nut, Hex (2)
