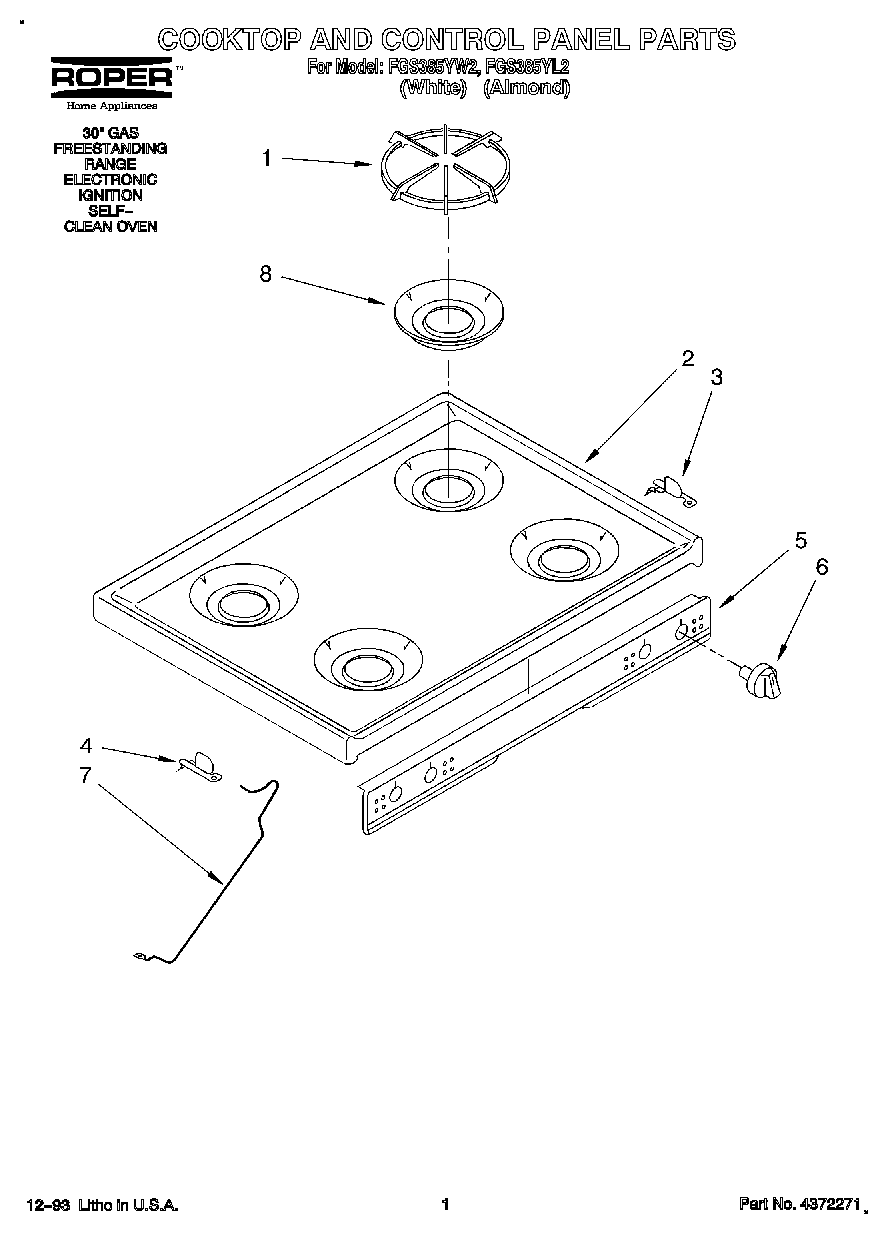

FGS385YW2 01 – COOKTOP AND CONTROL PANEL

Products

PositionProduct
1Grate (4)
2Top, Main (White)
2Top, Main (Almond)
3Bracket, Hinge RH
4Bracket, Hinge LH
5Panel, Manifold
6Knob, Control (4)
7Rod, Support Top
8Pan, Burner (4)
