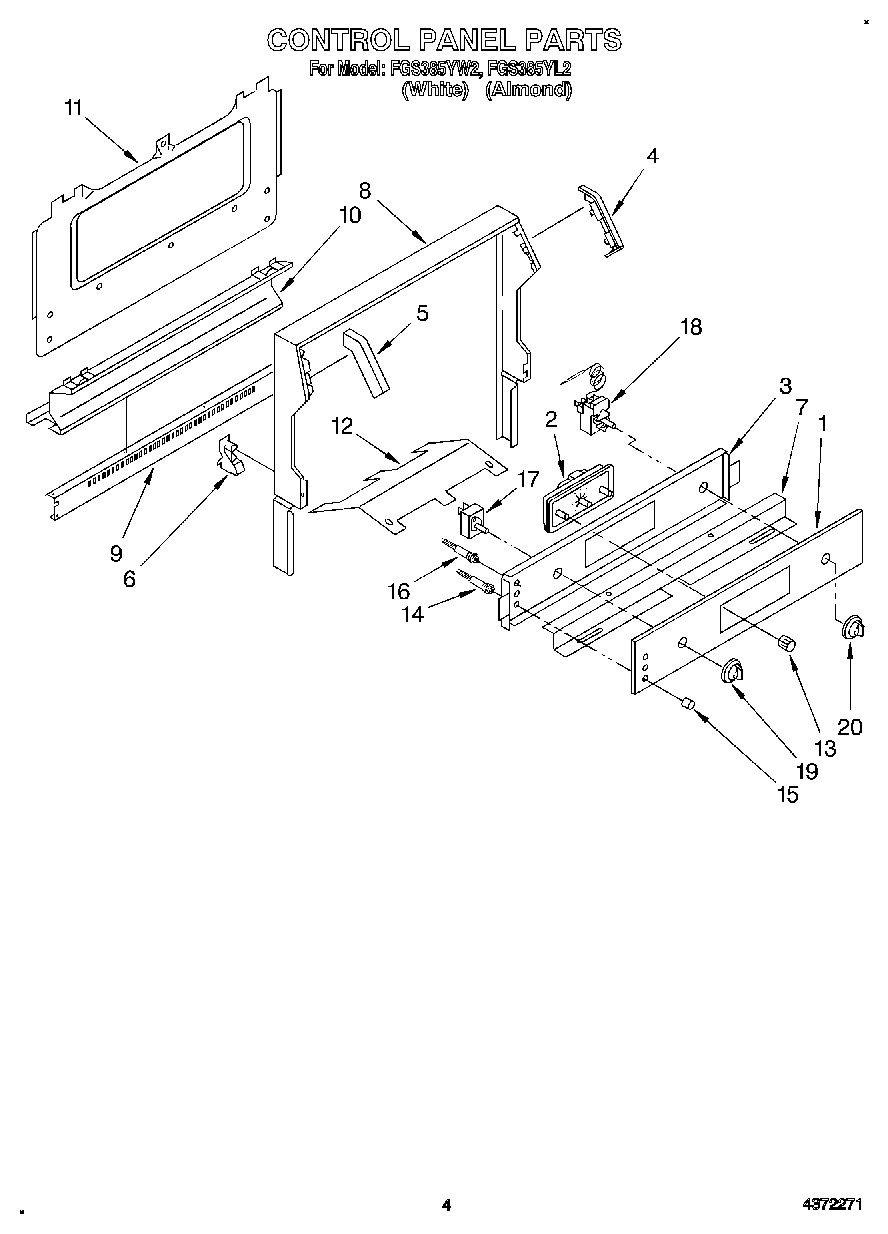

FGS385YW2 04 – CONTROL PANEL

FGS385YW2 04 – CONTROL PANEL

Written by

in

FGS385YW2 04 – CONTROL PANEL

Products

PositionProduct
1Panel, Control
2Clock, Timer
3Bracket, Timer
4Cap, End (R.H.)
5Cap, End (L.H.)
6Brace, Backguard
7Retainer, Timer
8Trim, Wrapper
9Trim, Vent
10Trim, Splasher (White)
10Trim, Splasher (Almond)
11Shield, Rear Wall
12Shield, Inner Bkgd
13Knob, Clock (3)
14Light, Indicator (2)
15Lens, Ind Light (3)
16Light, Indicator
17Switch, Selector
18Thermostat
19Knob, Selector
20Knob, Thermostat
