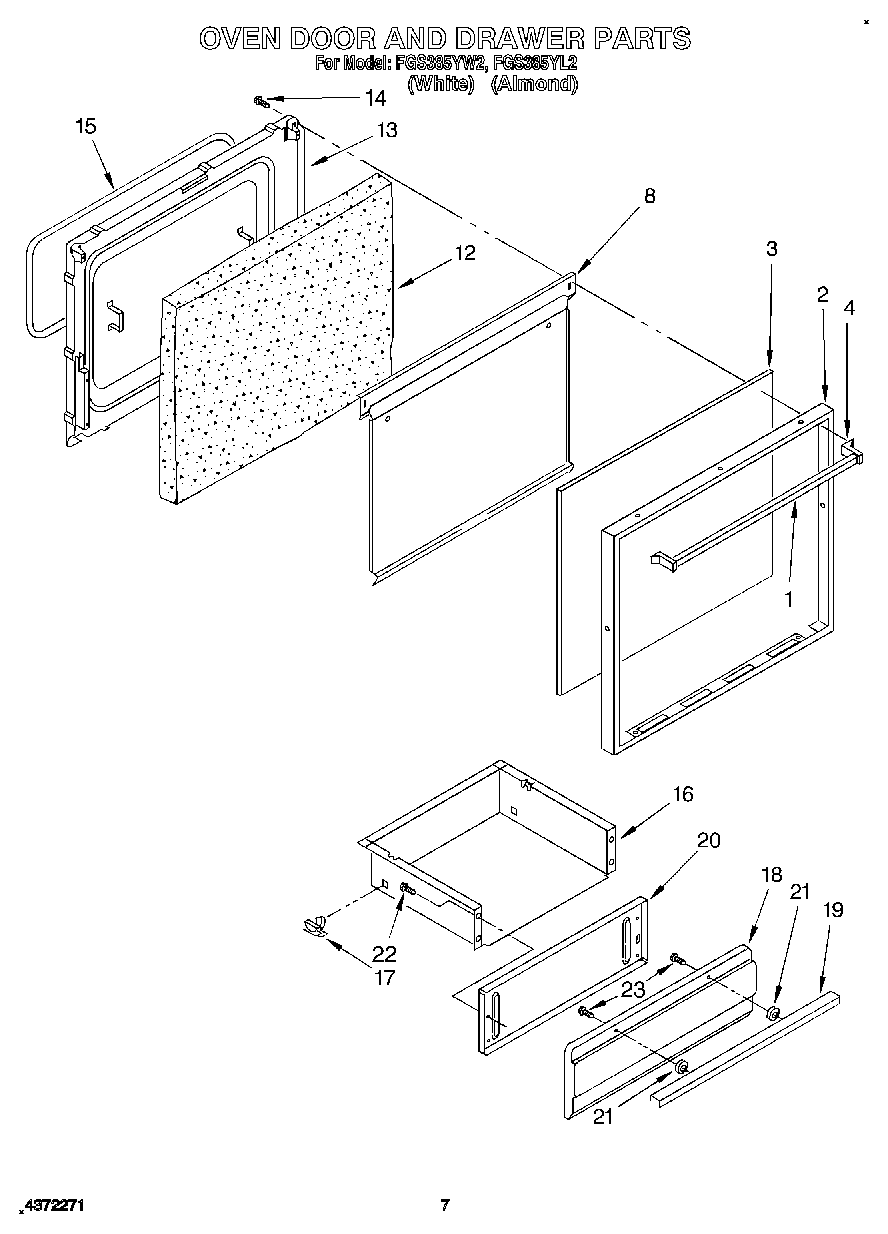

FGS385YW2 07 – OVEN DOOR AND DRAWER

FGS385YW2 07 – OVEN DOOR AND DRAWER

Written by

in

FGS385YW2 07 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Handle, Door
2	Trim, Door
3	Glass, Door
4	Endcap (2)
8	Shield, Heat
12	Insulation, Door
13	Liner, Oven Door
14	Screw, Handle
15	Seal, Oven Door
16	Drawer, Utility
17	Guide, Drawer
18	Panel, Drawer (White)
18	Panel, Drawer (Almond)
19	Handle, Utility Drawer
20	Shield, Panel
21	Spacer, Handle
22	Screw, Panel (4)
23	Screw, Handle (2)
