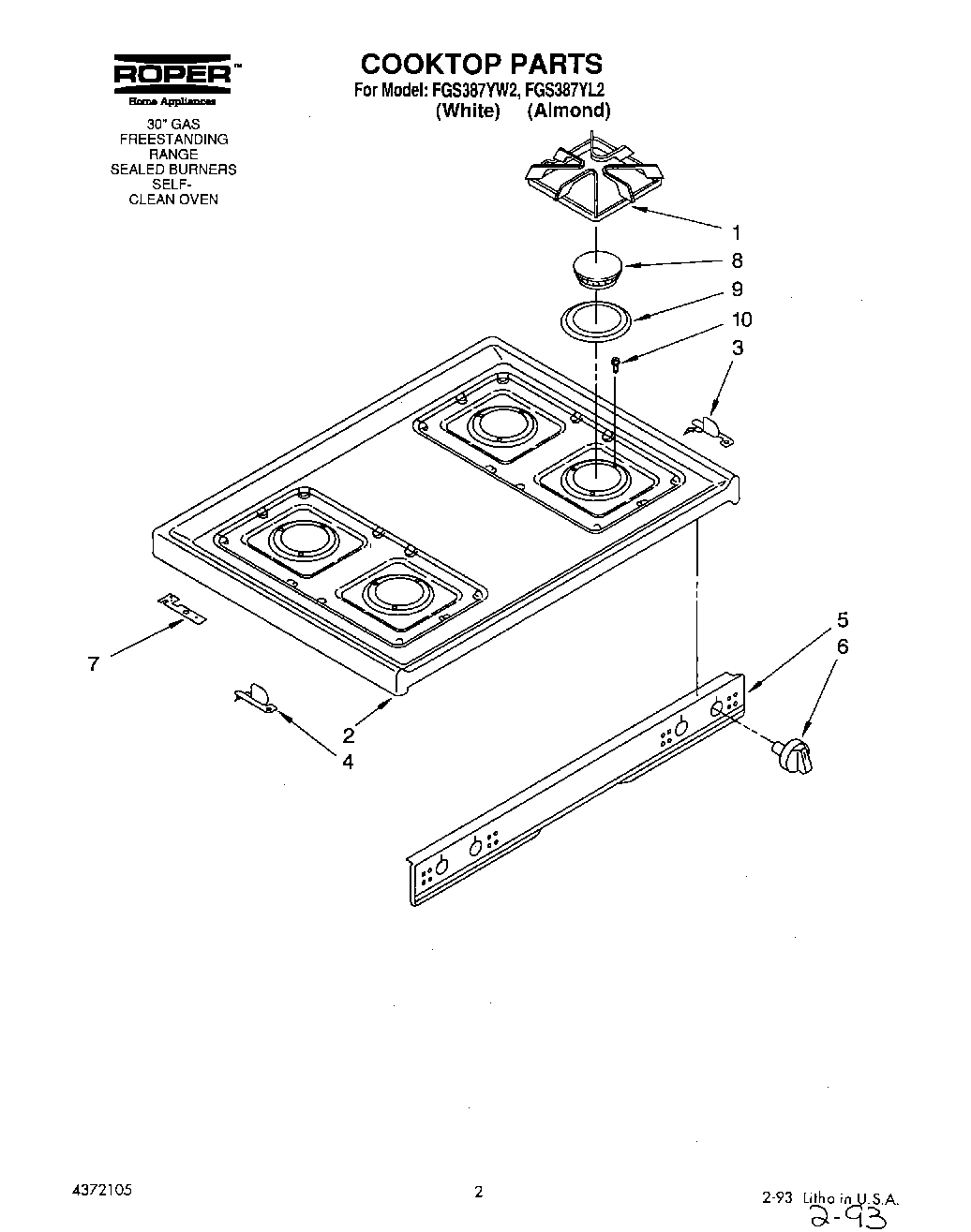

FGS387YL2 01 – COOKTOP AND CONTROL PANEL

FGS387YL2 01 – COOKTOP AND CONTROL PANEL

Written by

in

FGS387YL2 01 – COOKTOP AND CONTROL PANEL

Products

PositionProduct
1Grate
2Top, Main (Almond)
2Top, Main (White)
3Bracket, Hinge RH
4Bracket, Hinge LH
5Panel, Manifold
6Knob, Control (4)
7Bracket, Mounting (L.H.)
7Bracket, Mounting (R.H.)
8Cap, Burner
9Ring, Trim
10Screw, Burner Mtg.
