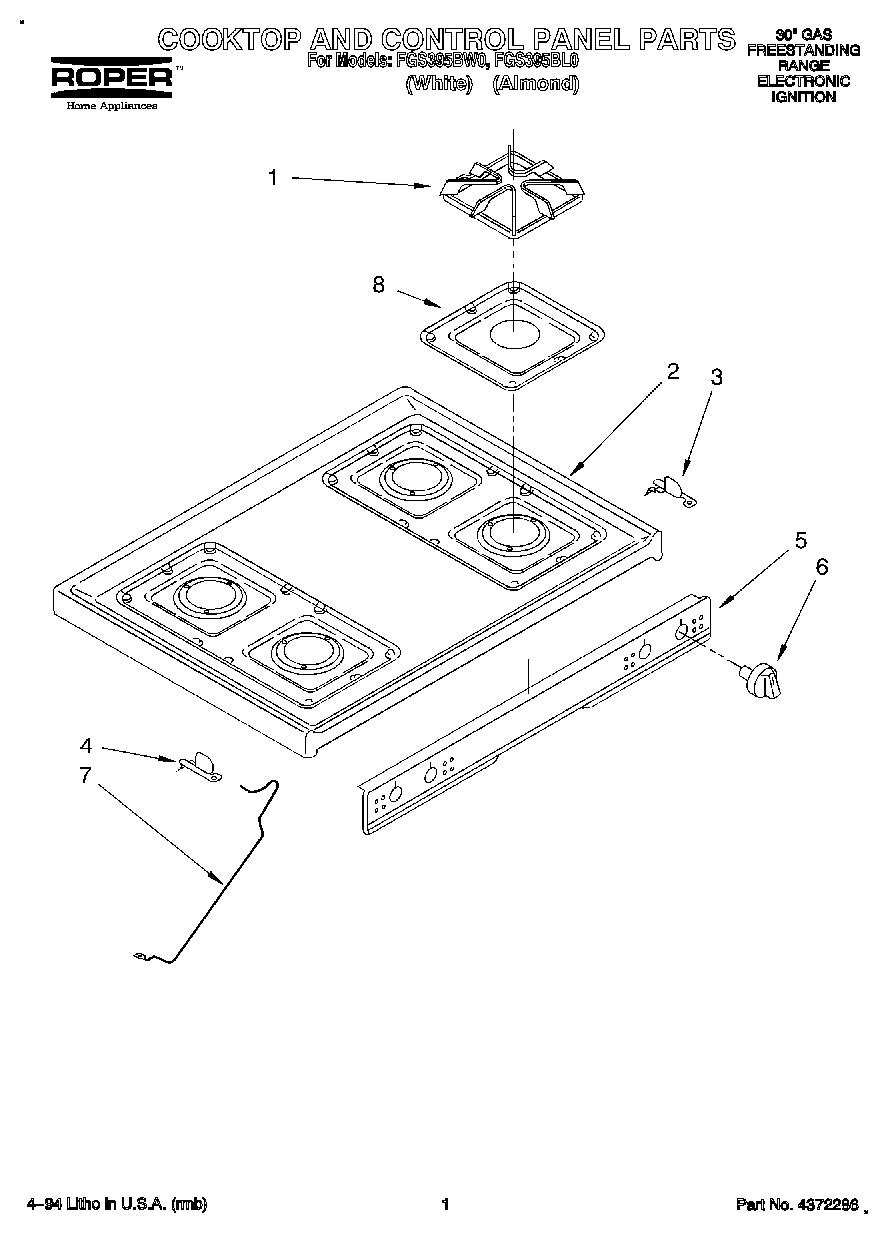

FGS395BL0 01 – COOKTOP AND CONTROL PANEL

FGS395BL0 01 – COOKTOP AND CONTROL PANEL

Written by

in

FGS395BL0 01 – COOKTOP AND CONTROL PANEL

Products

PositionProduct
1Grate (4)
2Top, Main (White)
2Top, Main (Almond)
3Bracket, Hinge RH
4Bracket, Hinge LH
5Panel, Manifold
6Knob, Control (4)
7Rod, Support Top
8Pan, Burner (4)
