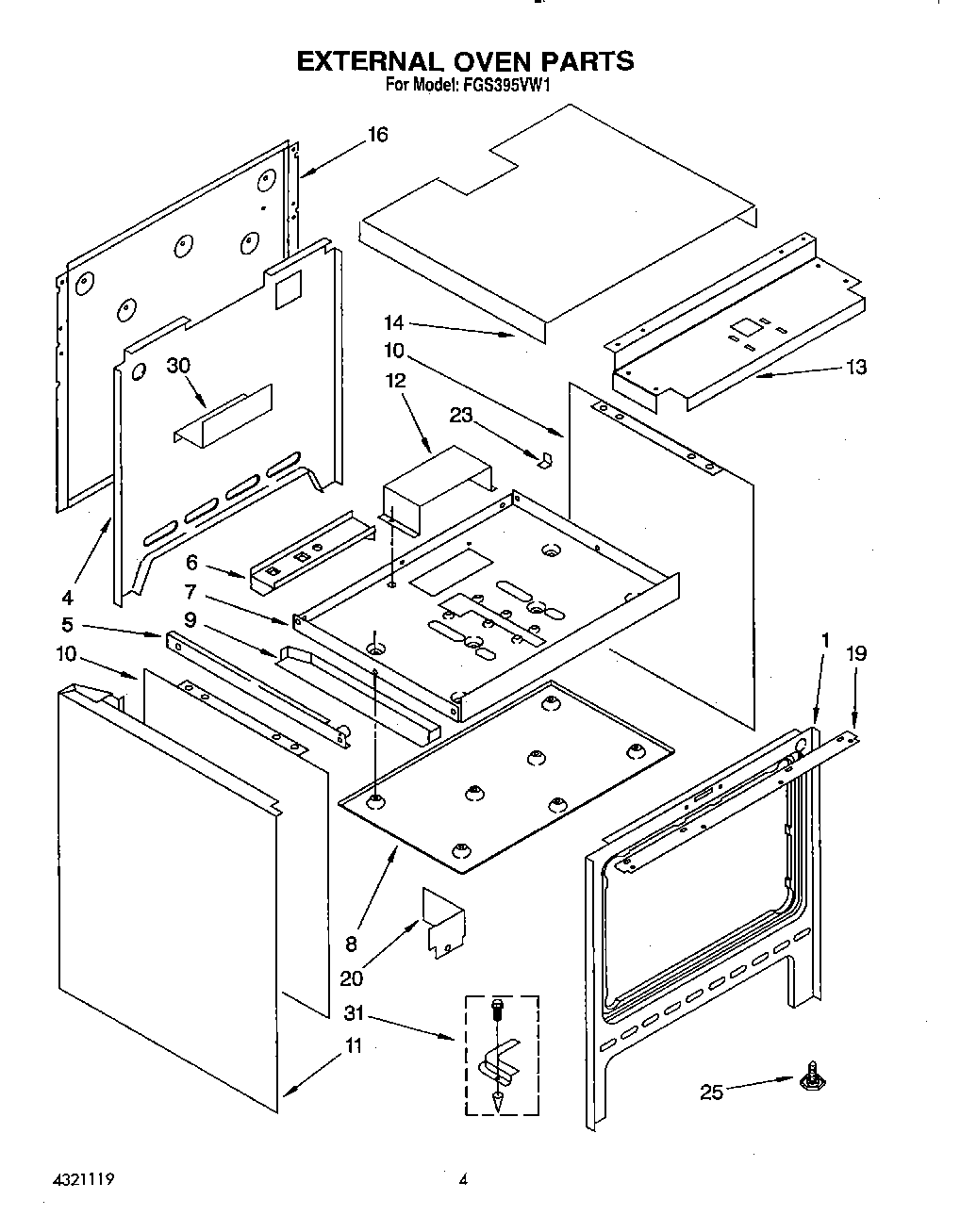

FGS395VL1 03 – EXTERNAL OVEN

Products

Position	Product
1	Liner, Oven Side (2)
4	Retainer, Rear Insulation
5	track, storage drawer (right side)
5	track, storage drawer (left side)
6	Nut, 6-32 (6)
6	shelf, gas valve
6	WP486754 Whirlpool Compactor Screw
7	retainer, bottom insulation
8	Heat Shield,
8	WP308685 Whirlpool Microwave Screw
9	Brace, Bottom (R.H.)
9	brace, bottom (l.h.)
10	Retainer, Insulation (2)
11	Panel, Side (Black)
11	Almond
11	White
11	98005642 Whirlpool Clip
12	Retainer, Ignitor
13	Retainer, Top Front Insulation
14	Retainer, Top Back
16	Panel, Rear
16	nut, 6-32
16	bushing, snap
19	Filler, Front Frame
20	Plate, Cover
23	Bracket, Gas Valve (2)
23	WP488130 Whirlpool Air Conditioner Nut
23	WP965173 Whirlpool Dishwasher Screw
25	leg, leveling (4)
30	cover, electrical
31	Anti Tip Kit
