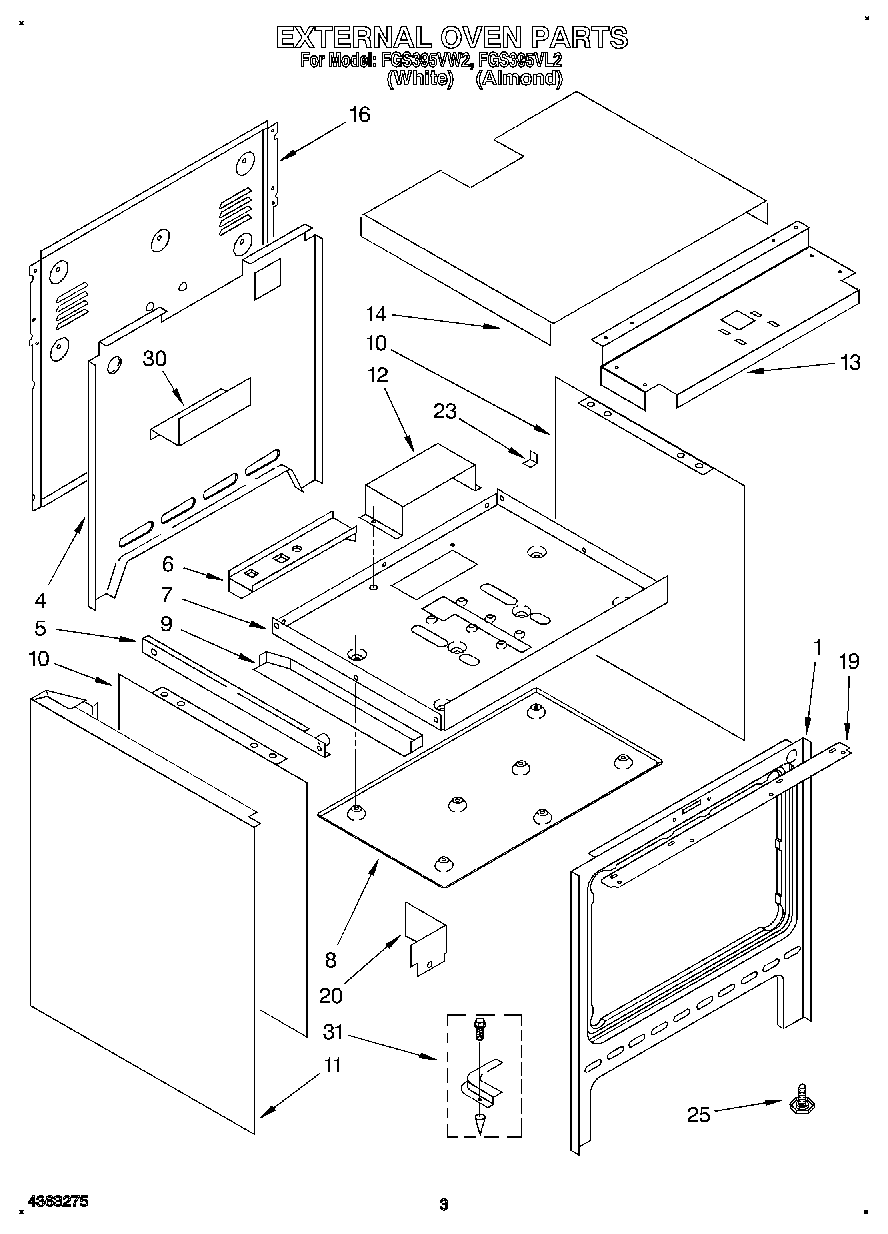

FGS395VL2 02 – EXTERNAL OVEN

Products

Position	Product
1	Frame, Front
4	Retainer, Rear Insulation
5	track, storage drawer (right side)
5	track, storage drawer (left side)
6	shelf, gas valve
6	WP486754 Whirlpool Compactor Screw
6	Nut, 6-32 (6)
7	retainer, bottom insulation
8	Heat Shield,
9	Brace, Bottom (R.H.)
9	Brace, Bottom (L.H.)
10	Retainer, Insulation (2)
11	Panel, End (2) (Almond)
11	Panel, End (2) (White)
12	Retainer, Ignitor
13	Retainer, Top Front Insulation
14	Retainer, Top Back
16	Panel, Rear
16	bushing, snap
16	nut, 6-32
19	Frame, Filler Front
20	Plate, Cover
23	WP488130 Whirlpool Air Conditioner Nut
23	Bracket, Gas Valve (2)
23	WP965173 Whirlpool Dishwasher Screw
25	leg, leveling (4)
30	cover, electrical
31	Anti Tip Kit
