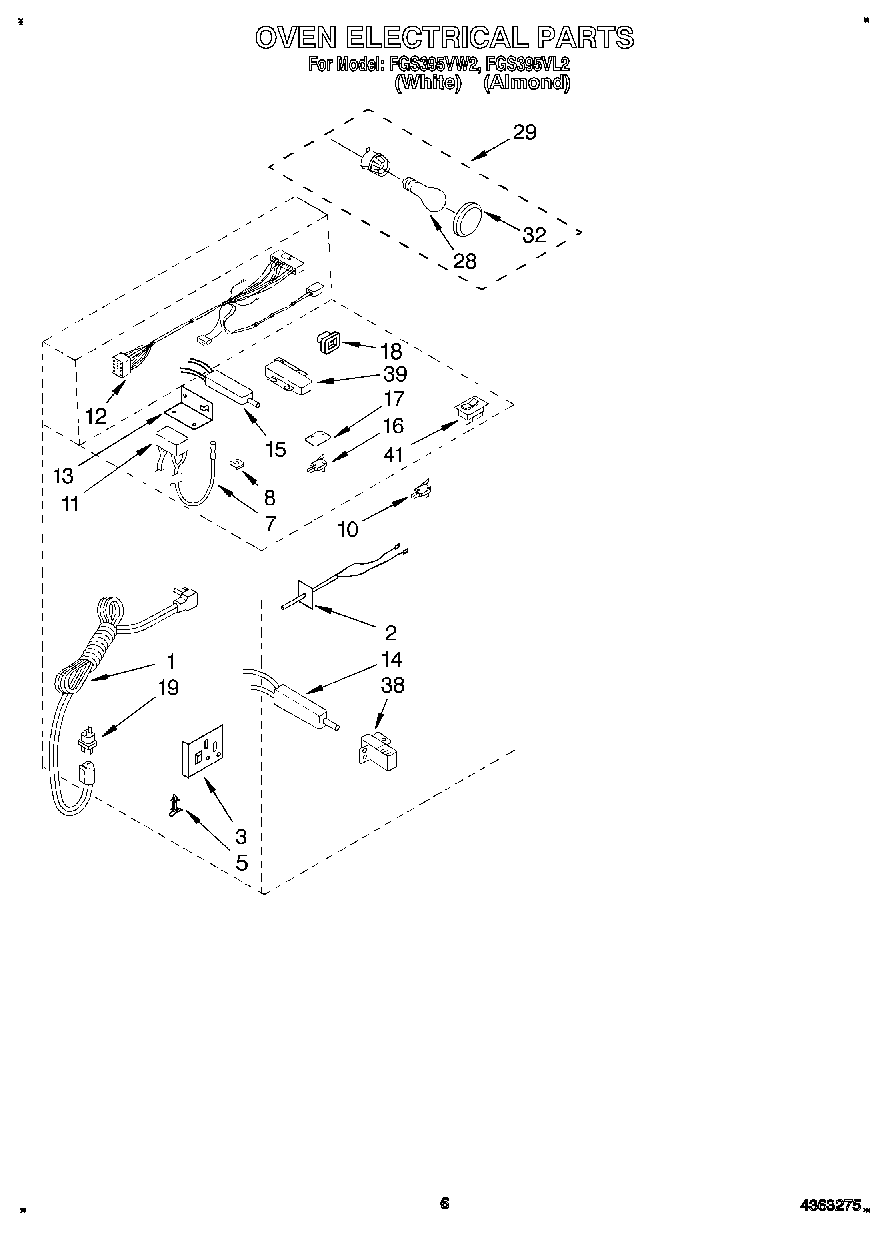

FGS395VL2 04 – OVEN ELECTRICAL, LITERATURE

Products

Position	Product
	Guide, Use & Care
	Instructions, Installation
1	Cord, Power
2	screw, 6-32 x 1/4 (2)
2	Sensor, Oven
3	Circuit Board
5	Support, Circuit Board (4)
7	4157608 Whirlpool Surface Igniter
8	WPY0070927 Whirlpool Microwave Clip
10	WP4330739 Whirlpool Igniter Switch
10	Nut
10	Screw, 4-40 X 5/8 (2)
11	Spark Module
12	Harness, Backguard
13	Bracket, Spark Module
14	786324 Whirlpool Flat Igniter
15	WP486754 Whirlpool Compactor Screw
15	814269 Whirlpool Oven Flat Igniter
15	Nut, 6-32 (6)
16	screw, 4-40 x 5/8 (2)
16	Switch, Oven Door Latch
17	Insulator, Switch
18	Plug, Ignitor Wire
19	Plug, Male
28	RANGE ONLY 40W 120V APPL BULB
29	WP74011278 Whirlpool Light
38	Bracket, Bake Ignitor
39	Bracket, Broiler Ignitor
41	Switch, Rocker
