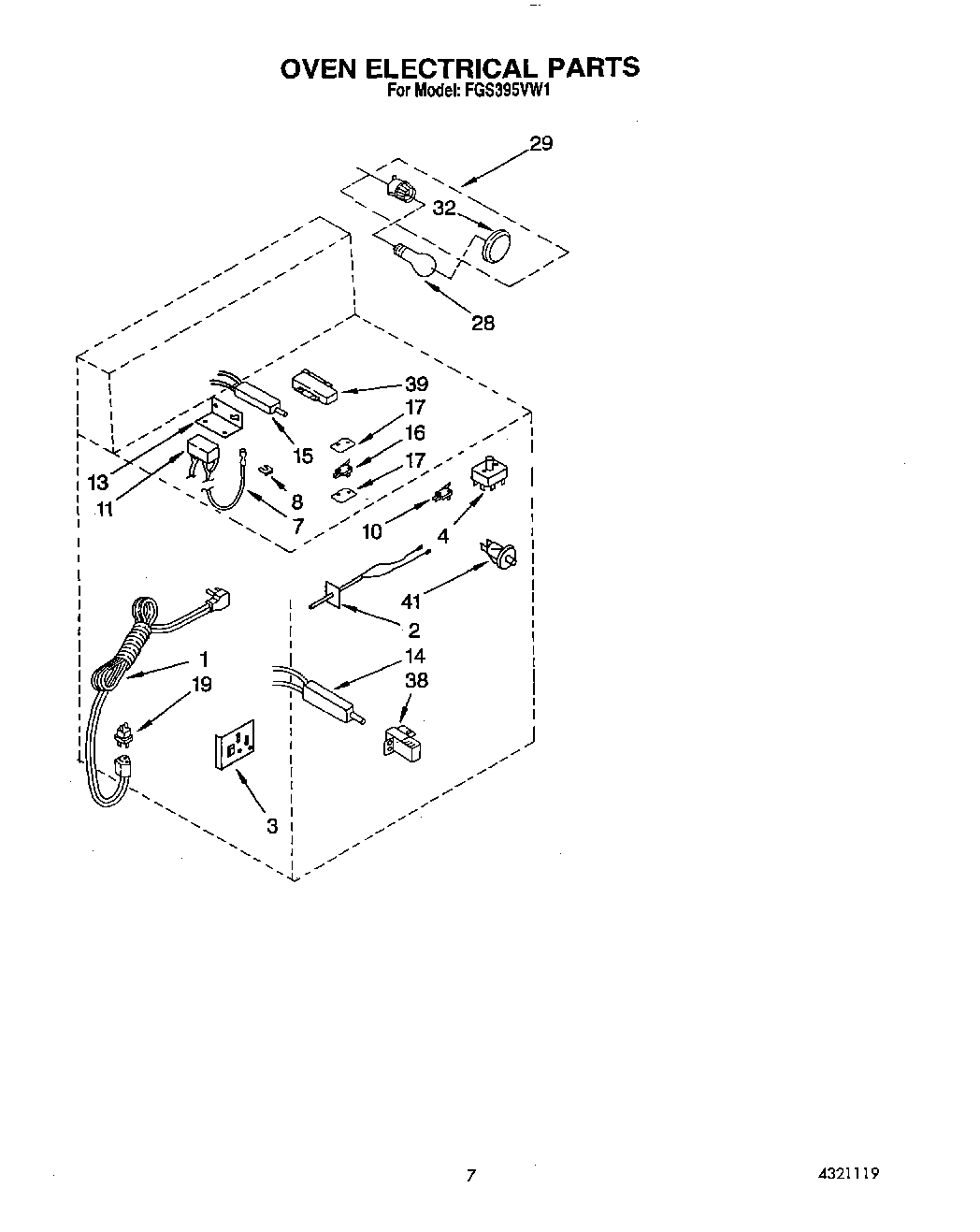

FGS395VW1 05 – OVEN ELECTRICAL, LIT/OPTIONAL

Products

Position	Product
	Instructions, Installation
	List, Repair Parts
	Guide, Use & Care
1	Cord, Power
2	Sensor, Oven
2	screw, 6-32 x 1/4 (2)
3	Circuit Board
4	Switch, Selector
7	4157608 Whirlpool Surface Igniter
8	WPY0070927 Whirlpool Microwave Clip
10	WP308685 Whirlpool Microwave Screw
10	Nut
10	Screw, 4-40 X 5/8 (2)
10	WP4330739 Whirlpool Igniter Switch
11	Spark Module
13	Bracket, Spark Module
14	786324 Whirlpool Flat Igniter
15	WP486754 Whirlpool Compactor Screw
15	Nut, 6-32 (6)
15	814269 Whirlpool Oven Flat Igniter
16	Switch, Oven Door Latch
16	screw, 4-40 x 5/8 (2)
17	Insulator, Switch
19	Plug, Male
28	RANGE ONLY 40W 120V APPL BULB
29	WP74011278 Whirlpool Light
38	Bracket, Bake Ignitor
39	Bracket, Broiler Ignitor
41	Switch, Rocker
