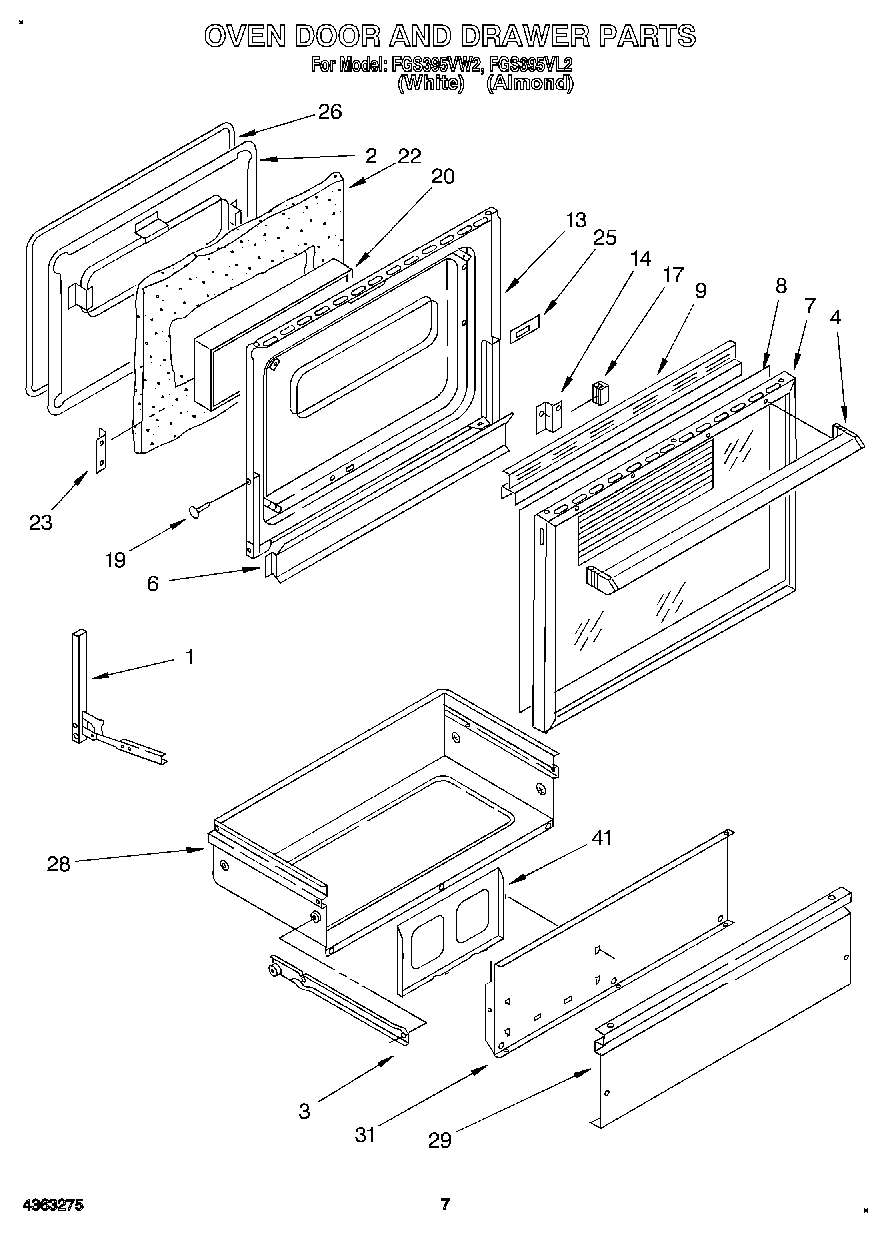

FGS395VW2 05 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Hinge, Oven Door (L.H.)
1	Hinge, Oven Door (R.H.)
2	WP965173 Whirlpool Dishwasher Screw
2	WP488130 Whirlpool Air Conditioner Nut
2	Pad, Oven Door
3	Runner (R.H.)
3	runner (l.h.)
4	Handle
6	Baffle, Heat
7	Frame
8	Panel, Black Glass
9	Trim, Top Door
13	Retainer, Insulation
14	bracket, glass support (4)
17	Bumper, Window (2)
19	Pin, Hinge (2)
20	Window Assembly
22	Insulation, Door
23	Retainer, Window (4)
25	Plate, Latch
26	gasket assembly
28	Wrapper, Storage Drawer
29	Panel, Drawer (Almond)
29	Panel, Drawer (White)
31	Liner, Door Panel
41	Rack, Literature
