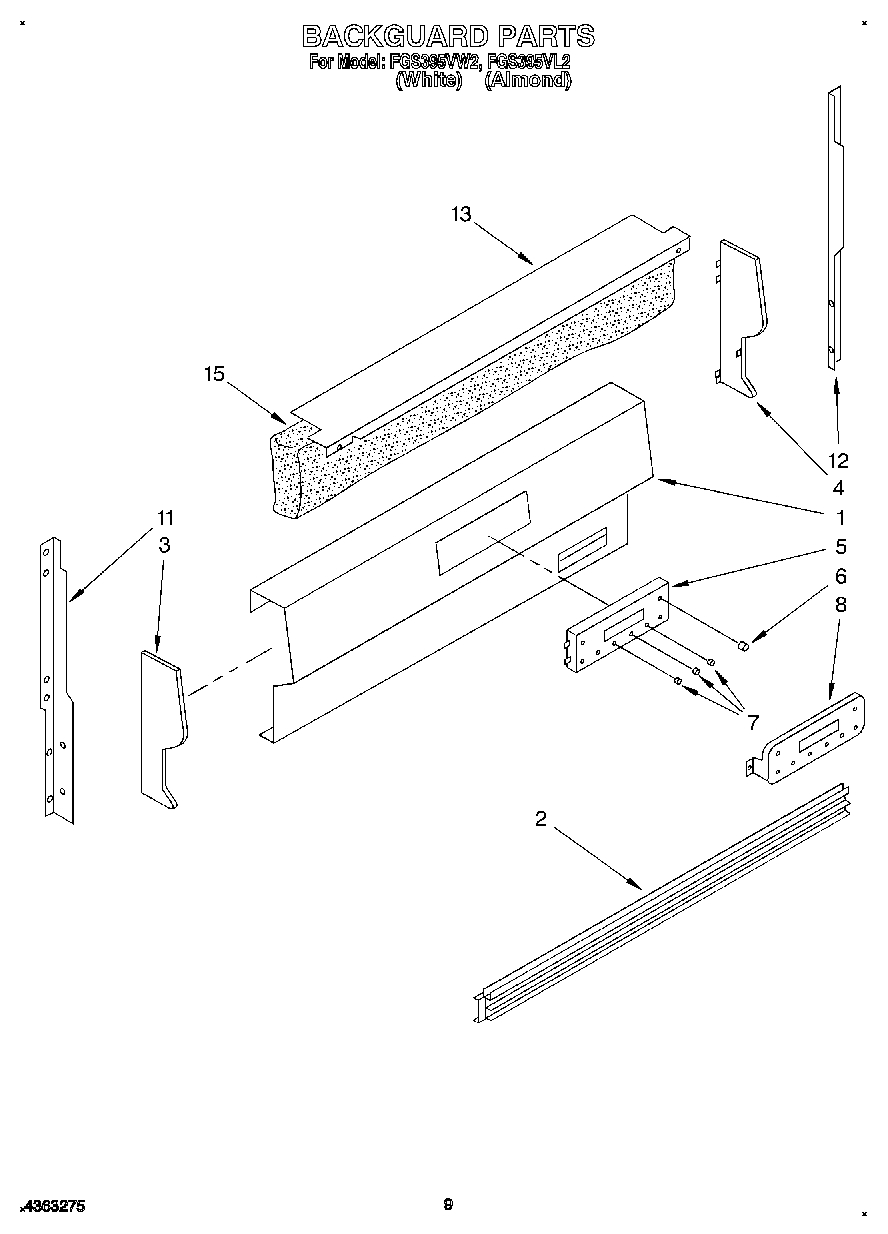

FGS395VW2 06 – BACKGUARD
Products
| Position | Product |
|---|---|
| 1 | Panel, Backguard |
| 2 | Trim |
| 3 | End Cap L.H. |
| 4 | End Cap R.H. |
| 5 | ERC Control |
| 6 | Knob, Oven Control |
| 7 | Button, Set (8) |
| 8 | Lens |
| 11 | Support L.H. |
| 12 | Support, R.H. |
| 13 | Shield, Heat |
| 15 | insulation, backguard |
