FGS395YL1 02 – CONTROL PANEL

FGS395YL1 02 – CONTROL PANEL

Written by

in

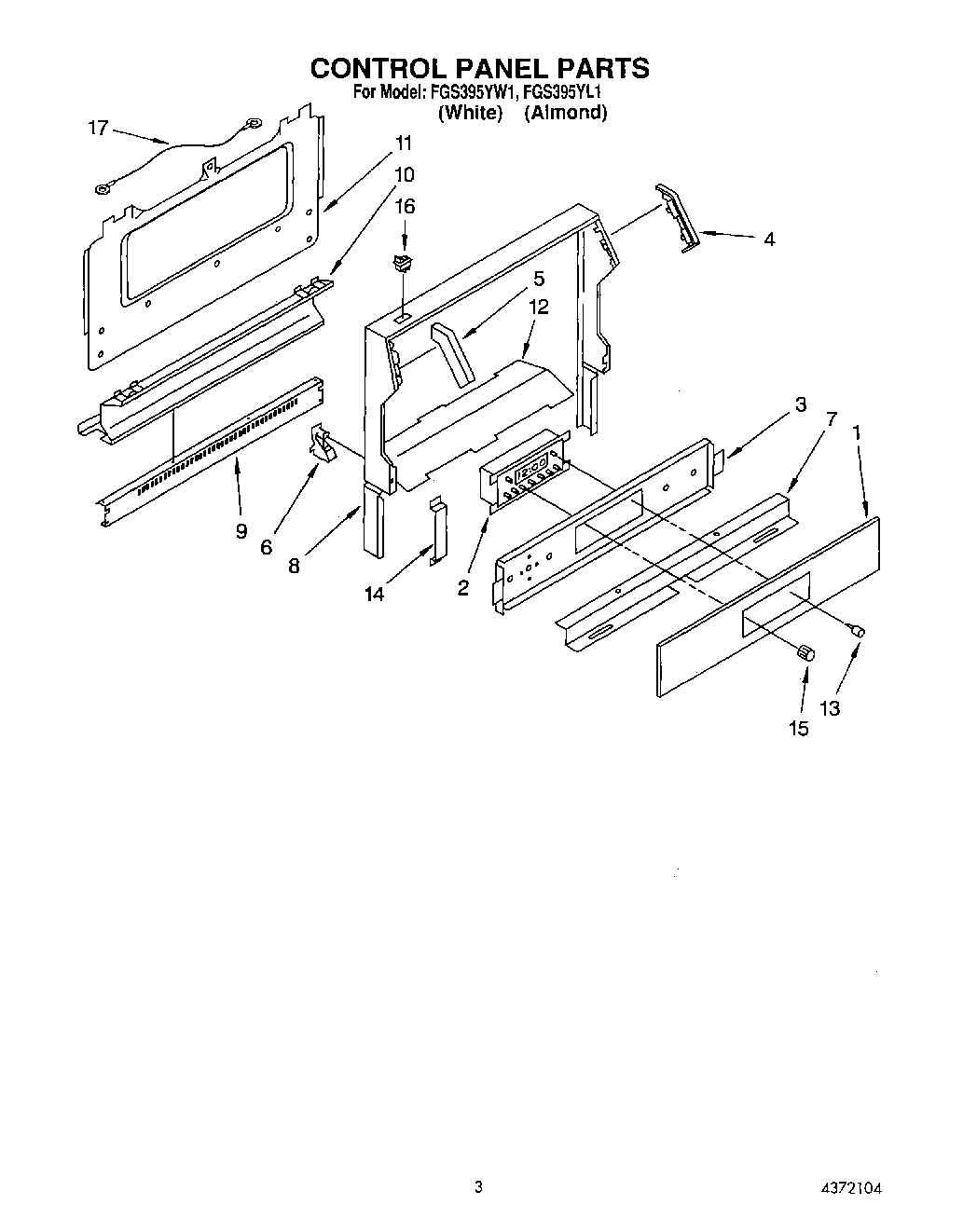

FGS395YL1 02 – CONTROL PANEL

Products

Position	Product
1	Panel, Control
2	Control, Electronic
3	Bracket, Timer
4	Cap, End (R.H.)
5	Cap, End (L.H.)
6	Brace, Backguard
7	Retainer, Timer
8	Trim, Wrapper
9	Trim, Vent
10	Trim, Splasher (Almond)
10	Trim, Splasher (White)
11	Shield, Rear Wall
12	Shield, Inner Bkgd
13	Knob, Oven Control
14	Spacer, Mtg. (2)
15	Button, Control, (8)
16	WP4314961 Whirlpool Lite Switch
17	Cable, Anti-Tip
