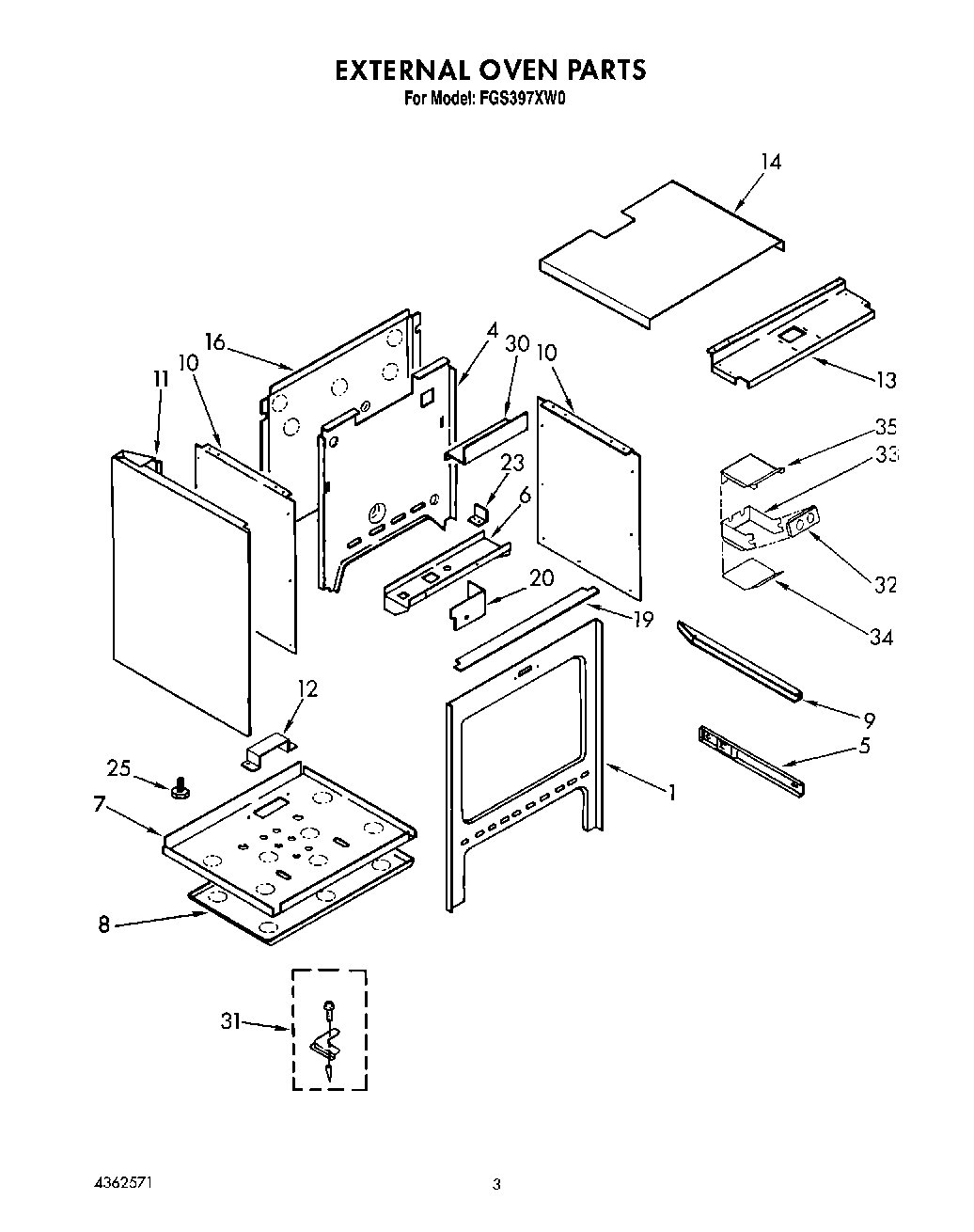

FGS397XW0 02 – EXTERNAL OVEN

FGS397XW0 02 – EXTERNAL OVEN

Written by

in

FGS397XW0 02 – EXTERNAL OVEN

Products

PositionProduct
1Frame, Front
4Retainer, Rear Insulation
5track, storage drawer (left side)
5track, storage drawer (right side)
6shelf, gas valve
6WP486754 Whirlpool Compactor Screw
6Nut, 6-32 (6)
7retainer, bottom insulation
8WP308685 Whirlpool Microwave Screw
8Heat Shield,
9Brace, Bottom (R.H.)
9brace, bottom (l.h.)
10Retainer, Insulation (2)
11White
11Almond
12Retainer, Ignitor
13Retainer, Top Front Front Insulation
14Retainer, Top Back
16nut, 6-32
16bushing, snap
16Panel, Rear
19Filler, Front Frame
20Plate, Cover
23Bracket, Gas Valve (2)
23WP965173 Whirlpool Dishwasher Screw
25leg, leveling (4)
30cover, electrical
31Anti Tip Kit
32Plenum, Top Front
33WP488130 Whirlpool Air Conditioner Nut
33Plenum, Wrapper (L.H.)
34Plenum Bottom
35Plenum Top
