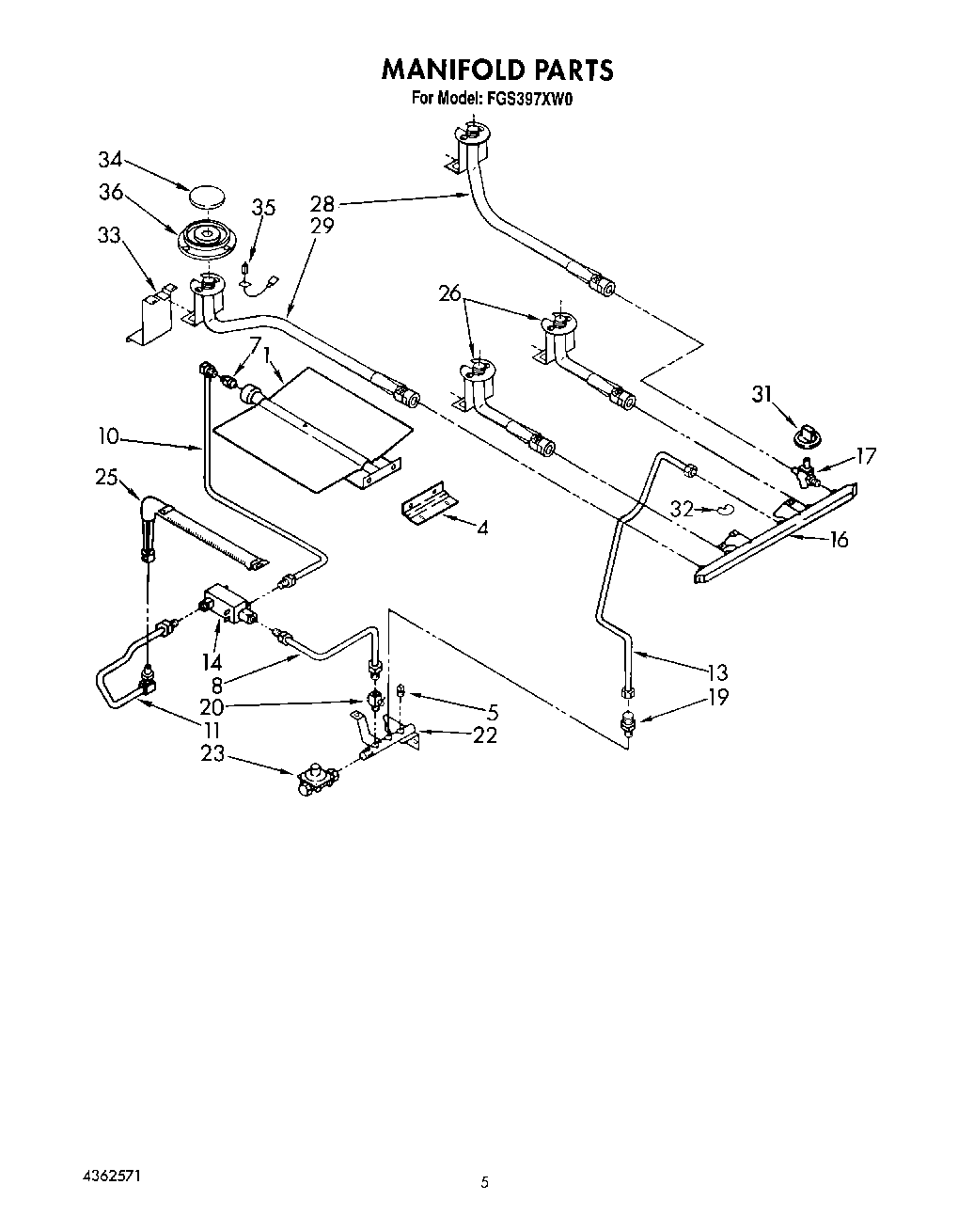

FGS397XW0 03 – MANIFOLD

Products

Position	Product
1	Burner, Broiler
1	Nut, 6-32 (6)
4	Support, Burner Mounting
4	Screw (3)
5	W10295523 Whirlpool Plug
7	LP Gas No. 58
7	Natural Gas No. 51.
8	Tubing, (Inlet To Gas Valve)
10	Orifice & Tubing Assembly (Gas Valve To Ultra Ray Burner)
11	hood & tubing assembly (gas valve to lower oven burner)
11	Nut, Lock
13	Tubing (Inlet To Manifold)
14	Valve, Dual Gas Valve
16	Manifold
17	Valve, Top Burner (L.F. & R.R.)
17	Valve, Top Burner (R.F. & L.R.)
19	Fitting
20	Valve, Shut-Off
22	Inlet, Gas
23	Regulator, Pressure
25	Oven Burner, Lower
26	Venturi Tube
28	Venturi Tube R.R.
29	Venturi Tube L.R.
31	Knob, Top Burner (4)
32	Elbow, Manifold
33	Bracket,
34	Burner Cap (Large)
34	Burner Cap (Small)
35	Electrode (4)
36	Burner Assembly (Small (2))
36	Burner Assembly (Large (2))
