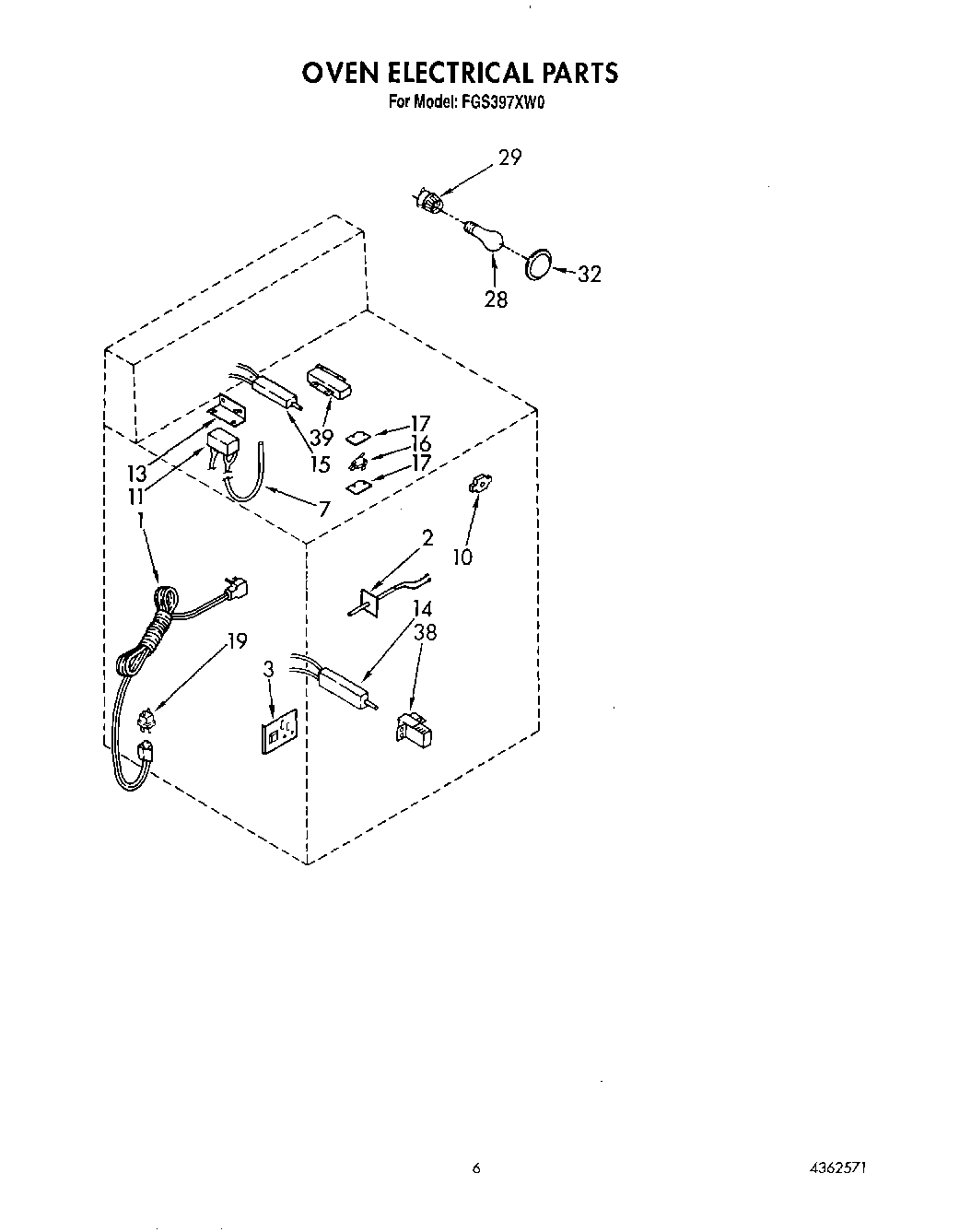

FGS397XW0 04 – OVEN ELECTRICAL

Products

PositionProduct
1Cord, Power
2screw, 6-32 x 1/4 (2)
2Sensor, Oven
3Support, Circuit Board (4)
3Circuit Board
7Clip
7Ignitor, Wire Top Burner
10Switch, Top Burner Actuator (4)
11Spark Module
13Bracket, Spark Module
14786324 Whirlpool Flat Igniter
15WP486754 Whirlpool Compactor Screw
15Nut, 6-32 (6)
15814269 Whirlpool Oven Flat Igniter
16screw, 4-40 x 5/8 (2)
16Switch, Oven Door Latch
17Insulator, Switch
19Plug, Male
28RANGE ONLY 40W 120V APPL BULB
32WP74011278 Whirlpool Light
38Bracket, Bake Ignitor
39Bracket, Broiler Ignitor
