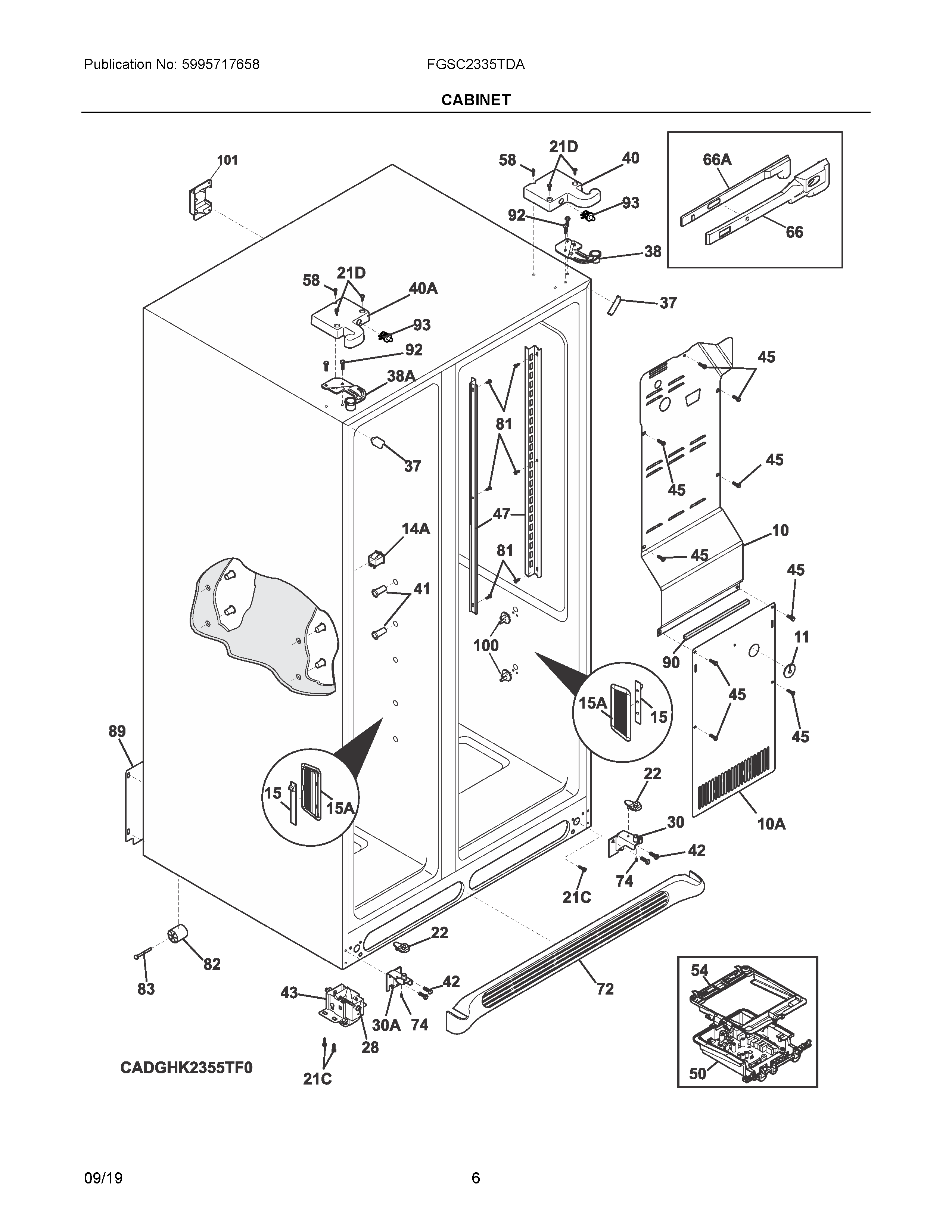

FGSC2335TDA 04 – CABINET

FGSC2335TDA 04 – CABINET

Written by

in

FGSC2335TDA 04 – CABINET

Products

Position	Product
NIA	241993001 Frigidaire Refrigerator Left Crisper Cover Support
NIA	241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
NIA	240346703 Frigidaire Refrigerator Tape-Foam
NIB	241781601 Frigidaire Refrigerator Air Return Seal
NI	CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
NIA	808835601 Frigidaire Refrigerator Harness
NI	240494001 Frigidaire Refrigerator Plug Button
NI	241890604 Frigidaire Refrigerator Louver Assembly
NI	242125401 Frigidaire Refrigerator Scoop
NIC	242125501 Frigidaire Refrigerator Insulator
10	808165003 Frigidaire Refrigerator Air Duct Cover
10A	808217502 Frigidaire Evaporator Coil Cover
11	5303208309 Frigidaire Refrigerator Plug Hole
14A	241547902 Frigidaire Refrigerator Light Switch
15A	242202701 Frigidaire Refrigerator Lens
15	5304525264 Frigidaire LED Light
21D	218781101 Frigidaire Handle Screw
21C	218252201 Frigidaire Refrigerator Screw
22	241917801 Frigidaire Refrigerator Closer Plate
30	241918001 Frigidaire Lower Door Hinge
30A	241918004 Frigidaire Lower Hinge Bracket
37	5304519617 Frigidaire Refrigerator Cabinet Corner Trim
38	241761301 Frigidaire Upper Bracket Hinge
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
40A	241946706 Frigidaire Refrigerator Upper Hinge Cover
40	241946705 Frigidaire Refrigerator Upper Hinge Cover
41	241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
47	241513003 Frigidaire Refrigerator Shelf Mounting Channel
50	5304521260 Frigidaire Refrigerator Main Power Board
54	807854301 Frigidaire Refrigerator Support
58	241548003 Frigidaire Refrigerator Screw
66	241861301 Frigidaire Refrigerator Housing-Damper
66A	WCI 241861201
72	241969403 Frigidaire Refrigerator Kickplate/Grille
74	218755402 Frigidaire Refrigerator Set Screw
81	5304455650 Frigidaire Refrigerator Screw
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
89	5304520905 Frigidaire Assembly Cover Refrigerator
90	218249808 Frigidaire Refrigerator Seal-Coil Cover
92	241710601 Frigidaire Refrigerator Screw
93	241911704 Frigidaire Refrigerator Switch
100	CRISPER COVER SUPPORT
101	242157801 Frigidaire Refrigerator Cover
