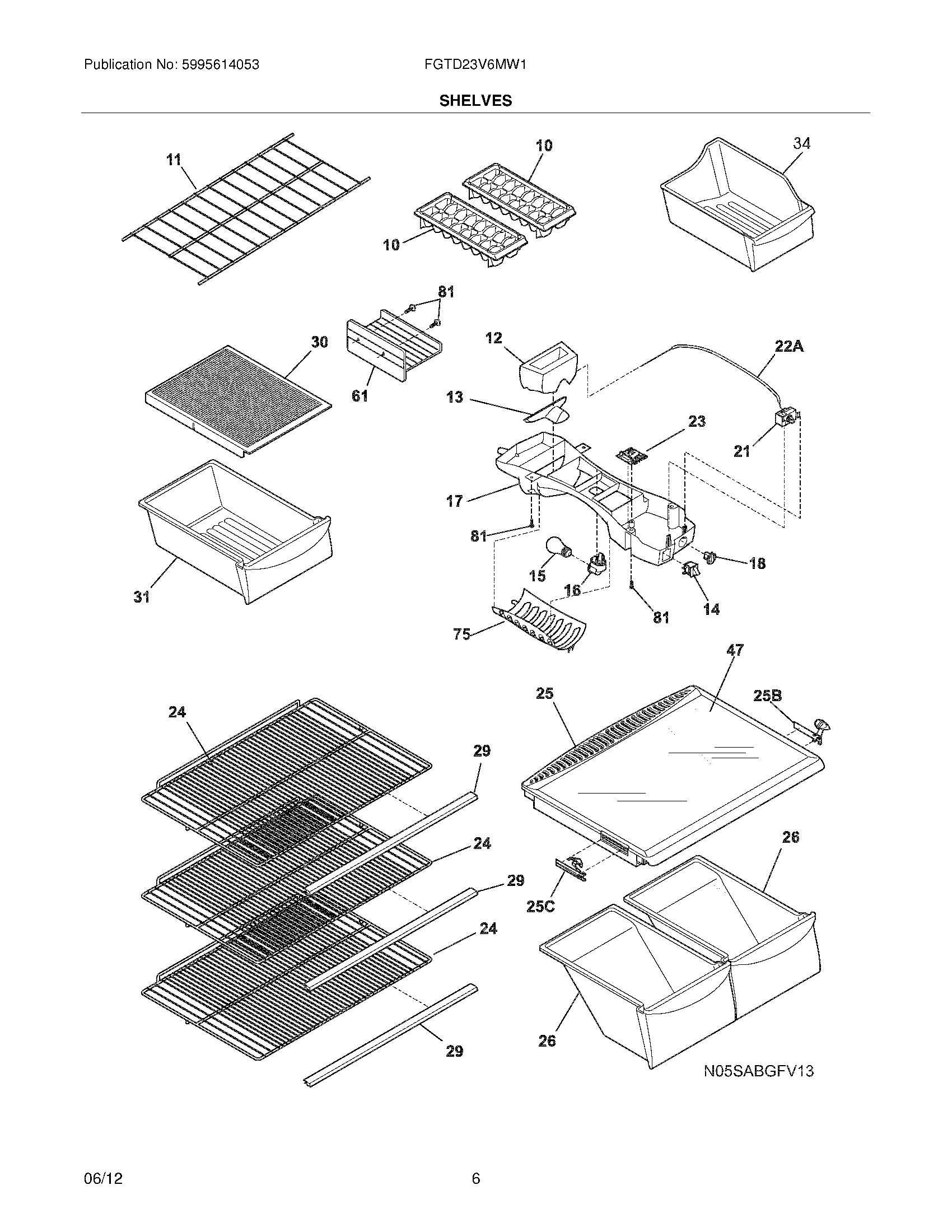

FGTD23V6MW1 07 – SHELVES

FGTD23V6MW1 07 – SHELVES

Written by

in

FGTD23V6MW1 07 – SHELVES

Products

PositionProduct
NI242081702 Frigidaire Refrigerator Wiring Harness
NI5304455649 Frigidaire Refrigerator Screw
10215667501 Frigidaire Refrigerator Ice Tray Primary
115304530262 Frigidaire Refrigerator Shelf
12240545901 Frigidaire Refrigerator Air Diffuser
13240362601 Frigidaire Refrigerator P1 Diffuser
14241554901 Frigidaire Refrigerator Light/Lamp Switch
15218814402 Frigidaire Refrigerator Bulb-Lamp
16241559801 Frigidaire Light Socket Refrigerator
17240368105 Frigidaire Refrigerator Control Box
18Knob-control
21241537103 Frigidaire Refrigerator Temperature Control Thermostat
22A240468202 Frigidaire Refrigerator Tube
23242011004 Frigidaire Refrigerator Control-Defrost
24WCI 240360904
25C241613502 Frigidaire Refrigerator Humidity Control Crisper Drawer
25B241613501 Frigidaire Refrigerator Humidity Control Crisper Drawer
25WCI 240364718
26CRISPER PAN
29WCI 240430708
30WCI 240361801
31MEAT PAN
34240385201 Frigidaire Refrigerator Ice Container
47240350609 Frigidaire Refrigerator Crisper Cover Glass Shelf Insert
61WCI 215781501
75240412701 Frigidaire Light Cover
815304455650 Frigidaire Refrigerator Screw
