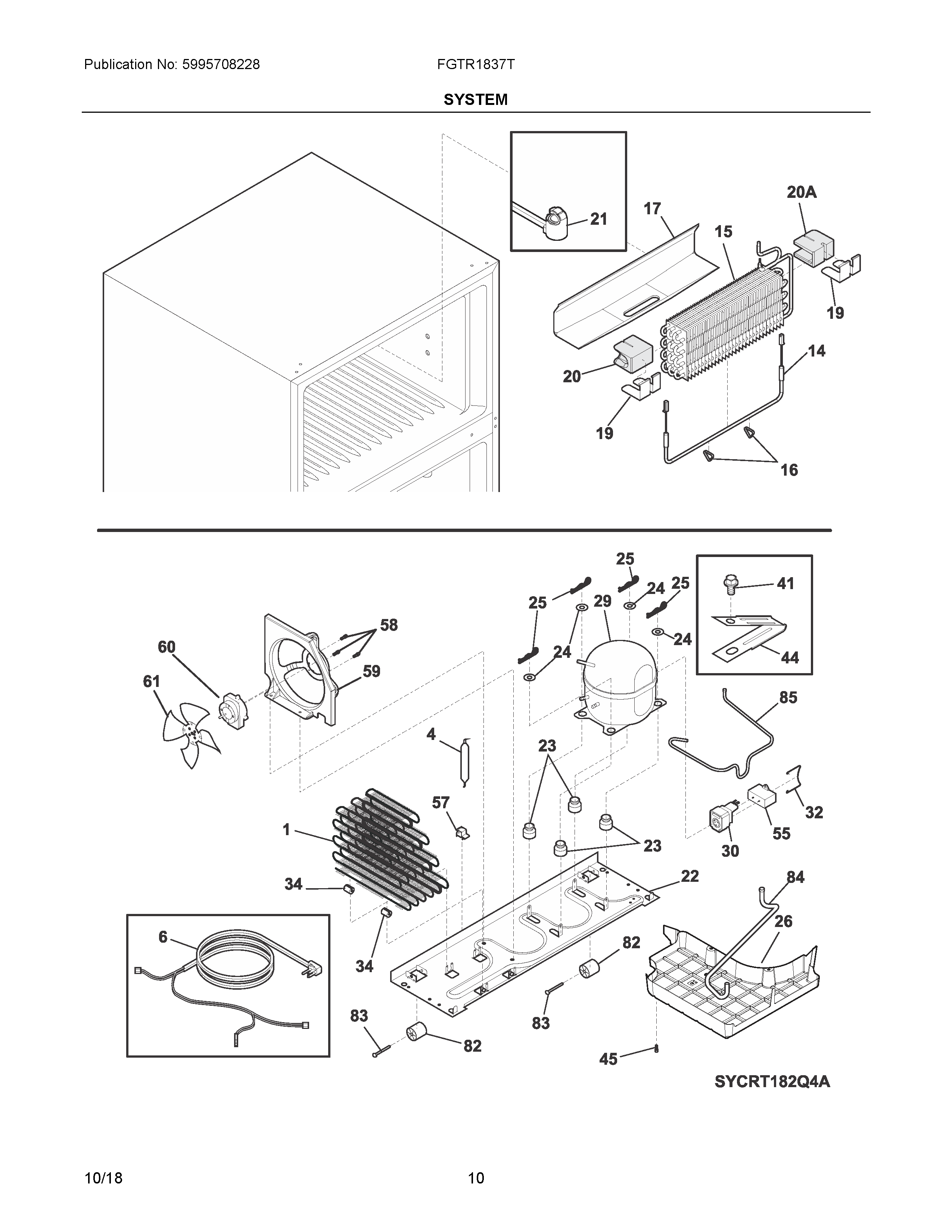

FGTR1837TD2 05 – SYSTEM

FGTR1837TD2 05 – SYSTEM

Written by

in

FGTR1837TD2 05 – SYSTEM

Products

Position	Product
NI	5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NIA	218252201 Frigidaire Refrigerator Screw
NI	WCI 5303918222
NIA	240346701 Frigidaire Refrigerator Foam Seal Tape
NIB	240359403 Frigidaire Refrigerator Fan Shroud Screw
1	5304502821 Frigidaire Refrigerator Condenser
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	241872714 Frigidaire Refrigerator Harness
14	242044008 Frigidaire Defrost Heater
15	5303918274 Frigidaire Refrigerator P1-Evaporator Kit Os1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	241801301 Frigidaire Refrigerator Drain Trough
19	242320401 Frigidaire Refrigerator Shield
20A	5304527430 Frigidaire Refrigerator Block
20	5304527429 Frigidaire Refrigerator Block
21	5303918634 Frigidaire Kit Thermostat
22	241665606 Frigidaire Refrigerator Compressor Base
24	241812301 Frigidaire Refrigerator Compressor Mount Washer
25	242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26	241920605 Frigidaire Refrigerator Defrost Pan
29	5304518793 Frigidaire Refrigerator Compressor
30	297259523 Frigidaire Refrigerator Controller
32	5304510216 Frigidaire Refrigerator Bale Strap
34	240405201 Frigidaire Refrigerator Grommet
41	240433204 Frigidaire Refrigerator Screw
44	5304456288 Frigidaire Refrigerator Clamp
45	241500305 Frigidaire Refrigerator Screw
55	297286803 Frigidaire Refrigerator Run Capacitor
57	240542601 Frigidaire Clip-WIRING Harness
58	240569202 Frigidaire Refrigerator Screw
59	242050604 Frigidaire Refrigerator Shroud
60	MOTOR-CONDENSER FAN
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	240500801 Frigidaire Refrigerator P-1 Tube-Drain
85	5304510214 Frigidaire Refrigerator Tube-Connector (Suc
