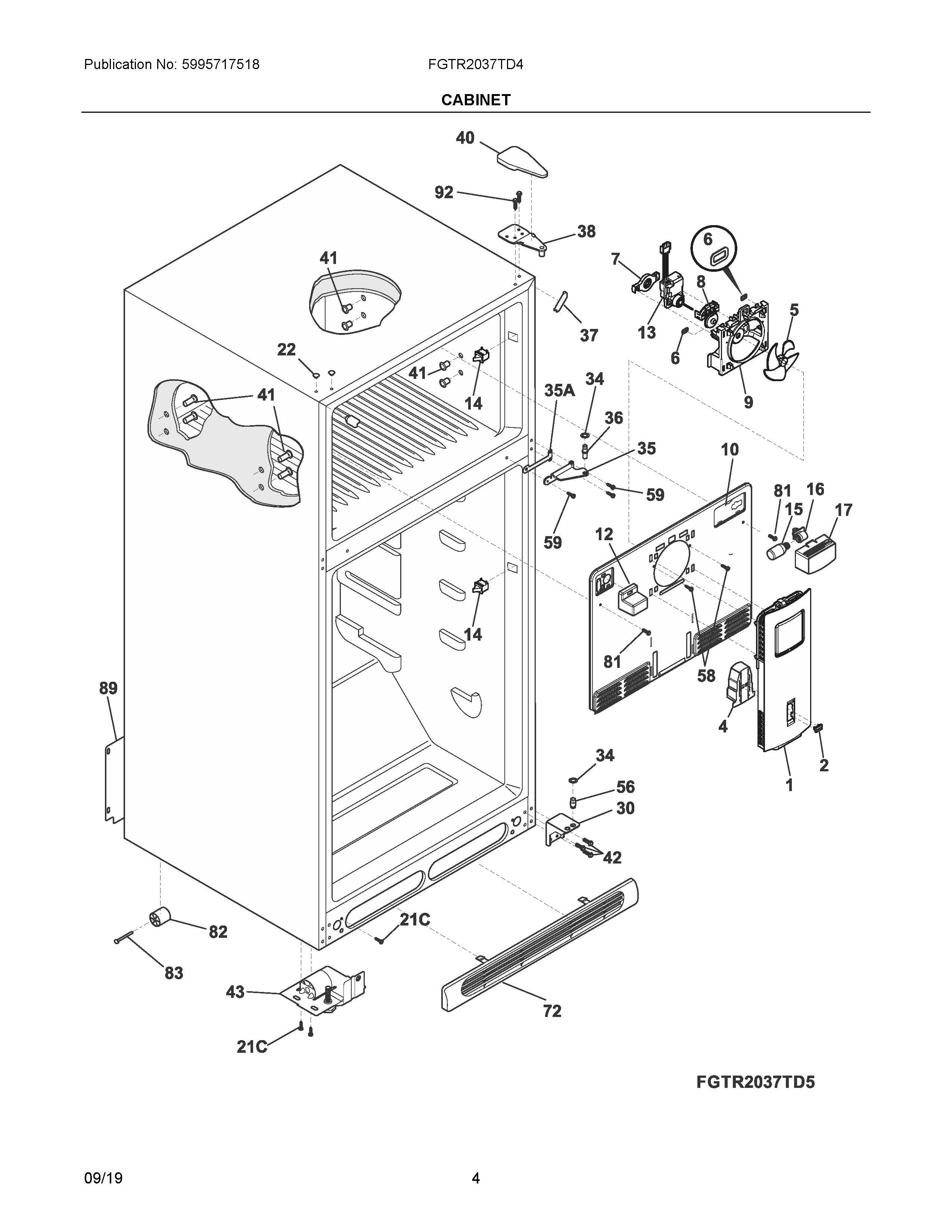

FGTR2037TD4 03 – CABINET

FGTR2037TD4 03 – CABINET

Written by

in

FGTR2037TD4 03 – CABINET

Products

Position	Product
NI	218990901 Frigidaire Clip
NIA	218515401 Frigidaire Refrigerator Clip
NIB	WCI 5304510943
NIA	241586701 Frigidaire Refrigerator Plug
NIA	240568606 Frigidaire Refrigerator Coil Cover Seal
NI	240494001 Frigidaire Refrigerator Plug Button
NIA	241500303 Frigidaire Refrigerator Screw
NIA	241889001 Frigidaire Refrigerator Roller Assembly
1	242294705 Frigidaire Refrigerator Assembly Cover
2	242229401 Frigidaire Refrigerator Knob
4	5304511141 Frigidaire Refrigerator Damper
5	242219302 Frigidaire Refrigerator Evaporator Fan Blade
6	5304497413 Frigidaire Refrigerator Ring
7	242287501 Frigidaire Refrigerator Grommet
8	242237301 Frigidaire Grommet
9	242229301 Frigidaire Refrigerator Shroud Bracket
10	WCI 242239406
12	242249201 Frigidaire Refrigerator Cover
13	5304521244 Frigidaire Refrigerator Evaporator Fan Motor
14	241554901 Frigidaire Refrigerator Light/Lamp Switch
15	5304510893 Frigidaire Refrigerator Light Bulb
16	240590403 Frigidaire Refrigerator Light Socket
17	242287601 Frigidaire LENS
21C	218252201 Frigidaire Refrigerator Screw
22	215774918 Frigidaire Refrigerator Button Plug
30	240314011 Frigidaire Refrigerator Lower Bracket Hinge
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35A	240336803 Frigidaire Refrigerator Hinge Spacer
35	240313803 Frigidaire Refrigerator Center Hinge Bracket
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	242161202 Frigidaire Refrigerator Trim-Cabinet Corner
38	240313703 Frigidaire Refrigerator Hinge
40	240354404 Frigidaire Refrigerator Upper Hinge Cover
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	241889002 Frigidaire Refrigerator Roller Assembly
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
58	5304453707 Frigidaire Oven Screw
59	240442707 Frigidaire Refrigerator Screw #10-32 X 3/4
72	241839407 Frigidaire Refrigerator Kickplate/Grille
81	5304455650 Frigidaire Refrigerator Screw
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
89	5304522713 Frigidaire Refrigerator Cover-Access
92	241710601 Frigidaire Refrigerator Screw
