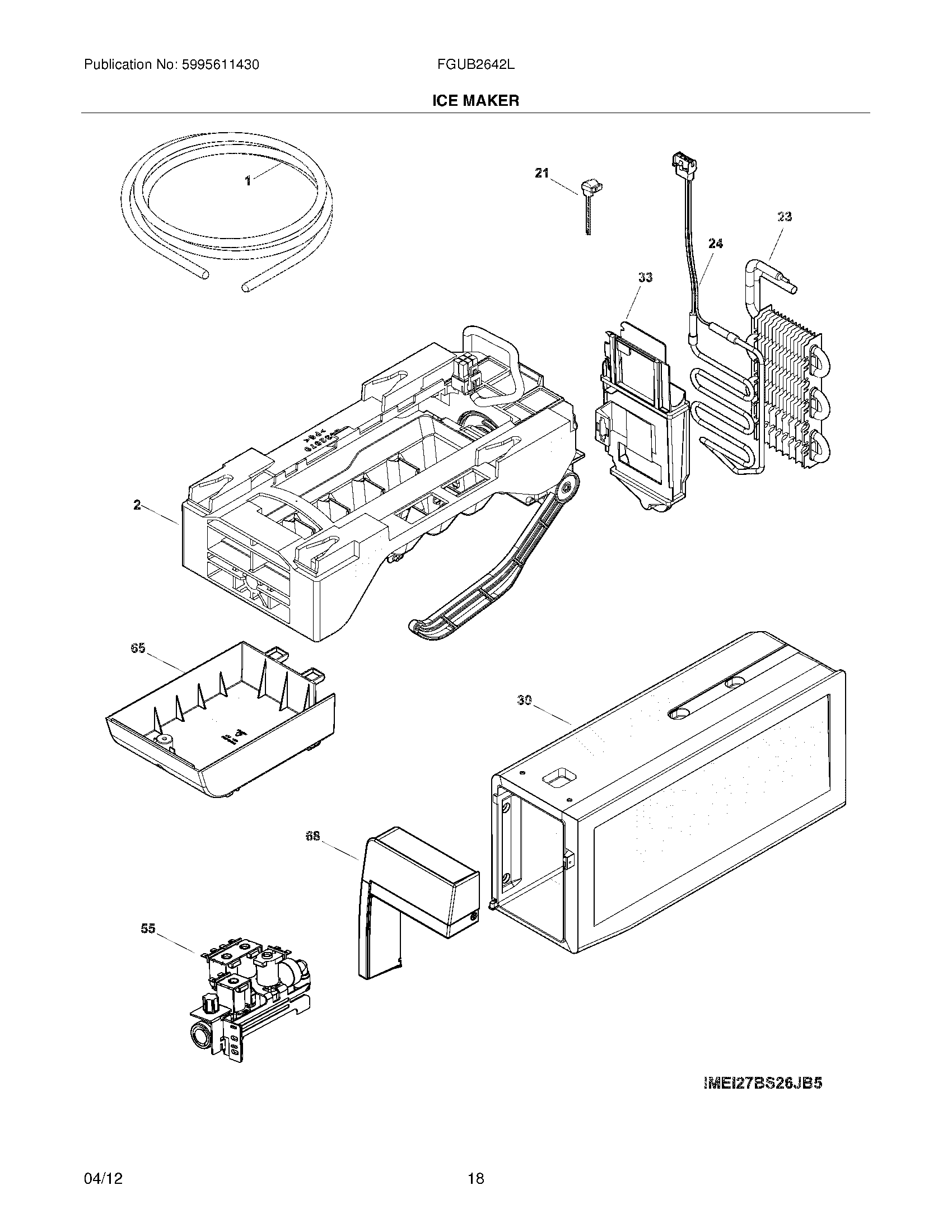

FGUB2642LE7 17 – ICE MAKER

Products

Position	Product
NI	241953902 Frigidaire Refrigerator Screw
NI	5303918484 Frigidaire Dispenser
NI	241965906 Frigidaire Refrigerator Water Tube
NI	241503901 Frigidaire Refrigerator P-1 Tube Adapter
NI	242096001 Frigidaire Refrigerator Insulation
NI	5303918784 Frigidaire Refrigerator Air Handler Housing
NI	5303918602 Frigidaire Refrigerator Water Tube Kit
NI	241964707 Frigidaire Refrigerator Water Tube
NI	241920106 Frigidaire Fill Tube Kit
NI	5304485759 Frigidaire Refrigerator Tape
NI	240396801 Frigidaire Refrigerator Tube Clamp
NI	242039701 Frigidaire Refrigerator Screw
NI	218709101 Frigidaire Refrigerator Handle Mounting Screw
NI	242220204 Frigidaire Water Inlet Tube
NI	241806601 Frigidaire Refrigerator Water Connector
NI	240363602 Frigidaire Refrigerator Shoulder Screw
NI	5303918571 Frigidaire Refrigerator Water Fill Chute Ki
NI	241695906 Frigidaire Screw
1	218976436 Frigidaire Refrigerator Water Inlet Tube
2	243297613 Frigidaire Refrigerator Ice Maker
21	5303918568 Frigidaire Thermostat Defrost
23	242094603 Frigidaire Refrigerator Evaporator
24	242094802 Frigidaire Defrost Heater
30	242093501 Frigidaire Refrigerator Housing
33	HOUSING-EVAPORATOR
55	QUAD WATER VALVE
65	242094301 Frigidaire Refrigerator Wiring Cover
68	242095002 Frigidaire Refrigerator Cover
