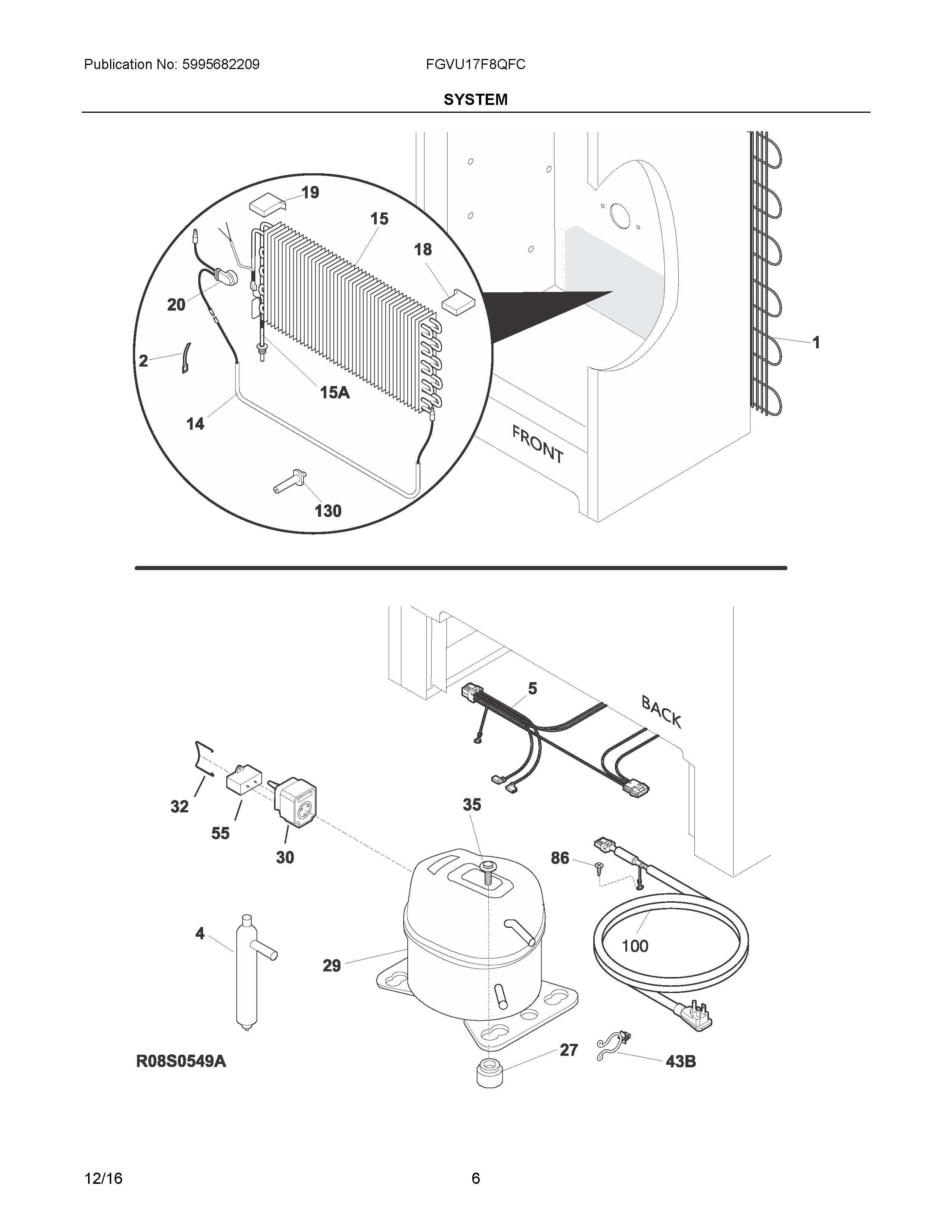

FGVU17F8QFC 04 – SYSTEM

FGVU17F8QFC 04 – SYSTEM

Written by

in

FGVU17F8QFC 04 – SYSTEM

Products

PositionProduct
NI241853202 Frigidaire Refrigerator Screw
NI240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NIA216695300 Frigidaire Refrigerator Bimetal Relay
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
45303305677 Frigidaire Replacement Filter Dryer Filters
55304494360 Frigidaire Refrigerator Harness
145304497251 Frigidaire Refrigerator Heater Assembly
15297414901 Frigidaire Refrigerator Evaporator
15A297217900 Frigidaire Refrigerator Suction Tube
18297078701 Frigidaire Refrigerator Insulator-Evaporator
19297078801 Frigidaire Refrigerator Evaporator Insulator
20WCI 216683900
27297293302 Frigidaire Refrigerator Grommet
295304524545 Frigidaire Refrigerator Compressor
30297259515 Frigidaire Refrigerator Start Relay
32216954300 Frigidaire Refrigerator Clip
35297368501 Frigidaire Bolt
43B297315800 Frigidaire Refrigerator Clip
55WCI 297286802
86216036601 Frigidaire Refrigerator Screw
100297366805 Frigidaire Refrigerator Cord
130297244700 Frigidaire Refrigerator Support
