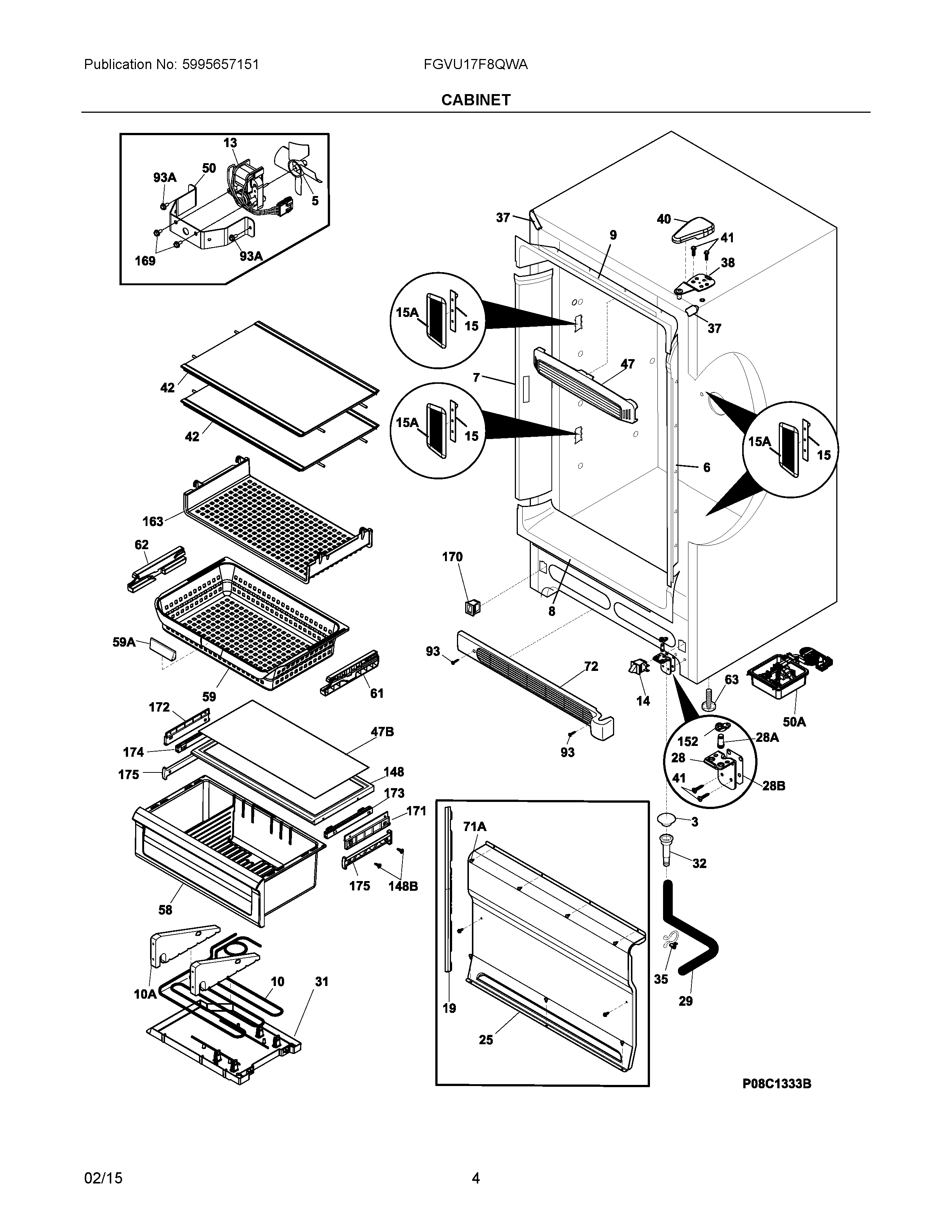

FGVU17F8QWA 03 – CABINET

FGVU17F8QWA 03 – CABINET

Written by

in

FGVU17F8QWA 03 – CABINET

Products

Position	Product
NIAC	WCI 5304494017
NIAB	HANDLE BASKET, FREEZER GRE
NIA	216502400 Frigidaire Refrigerator Grommet Unit
NI	WCI 5303313703
NI	297001704 Frigidaire Refrigerator Insulation
NIA	WCI 216327800
NIA	Bracket,LH leg levelor
NIAA	808408304 Frigidaire Refrigerator Clip
NIB	Bracket,RH leg levelor
NIB	5304509705 Frigidaire Refrigerator Grommet
NI	5304496283 Frigidaire Refrigerator Grommet
NI	WCI 5304498611
NI	WCI 5304496697
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5304513294 Frigidaire Refrigerator Freezer Fan Blade
6	297435601 Frigidaire Breaker
7	297435600 Frigidaire Refrigerator Breaker
8	297403902 Frigidaire Refrigerator Breaker
9	297403901 Frigidaire Refrigerator Breaker
10	WCI 297334500
10A	WCI 297177400
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15A	242202701 Frigidaire Refrigerator Lens
15	242196204 Frigidaire Refrigerator Light Board
19	216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
25	WCI 297099251
28	297416301 Frigidaire Refrigerator Hinge
28A	297438300 Frigidaire Refrigerator Pin
28B	5304497244 Frigidaire Refrigerator Shim
29	5304512272 Frigidaire Hose Drain
31	297165804 Frigidaire Refrigerator Pan-Drain
32	5304511843 Frigidaire Refrigerator Sleeve
35	216273000 Frigidaire Refrigerator Strap
37	297273904 Frigidaire Refrigerator Corner Cabinet Trim
38	297283803 Frigidaire Freezer Upper Door Hinge
40	297164400 Frigidaire Refrigerator Hinge Cover
41	240578902 Frigidaire Screw Mounting Hinge
42	5304497953 Frigidaire Freezer Shelf
47B	297102705 Frigidaire Glass Cover Crisper
47	297192903 Frigidaire Refrigerator Baffle
50A	5304500699 Frigidaire Refrigerator Board Assembly
50	WCI 216394000
58	A11791811 Frigidaire Crisper Drawer
59	808617902 Frigidaire Refrigerator Mid Level Basket
59A	808408301 Frigidaire Refrigerator Clip
61	808902901 Frigidaire Hanging Basket Hanger
62	808902902 Frigidaire Hanging Basket Support, Left Hand
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71A	Screw,8-18AB x.470 QX
72	WCI 297387701
93A	241853202 Frigidaire Refrigerator Screw
93	216858001 Frigidaire Refrigerator Screw
148B	297142600 Frigidaire Refrigerator/Freezer Screw
148	WCI 297271701
152	5304511026 Frigidaire Refrigerator Freezer Hinge Bearing
163	808617701 Frigidaire Refrigerator Shelf
169	216912401 Frigidaire Refrigerator Screw
170	297280400 Frigidaire Refrigerator Valve
171	297092700 Frigidaire Refrigerator Bracket
172	297092701 Frigidaire Refrigerator Bracket
173	5304515502 Frigidaire Refrigerator Slide
174	5304515501 Frigidaire Refrigerator Slide
175	297099500 Frigidaire Refrigerator Support
