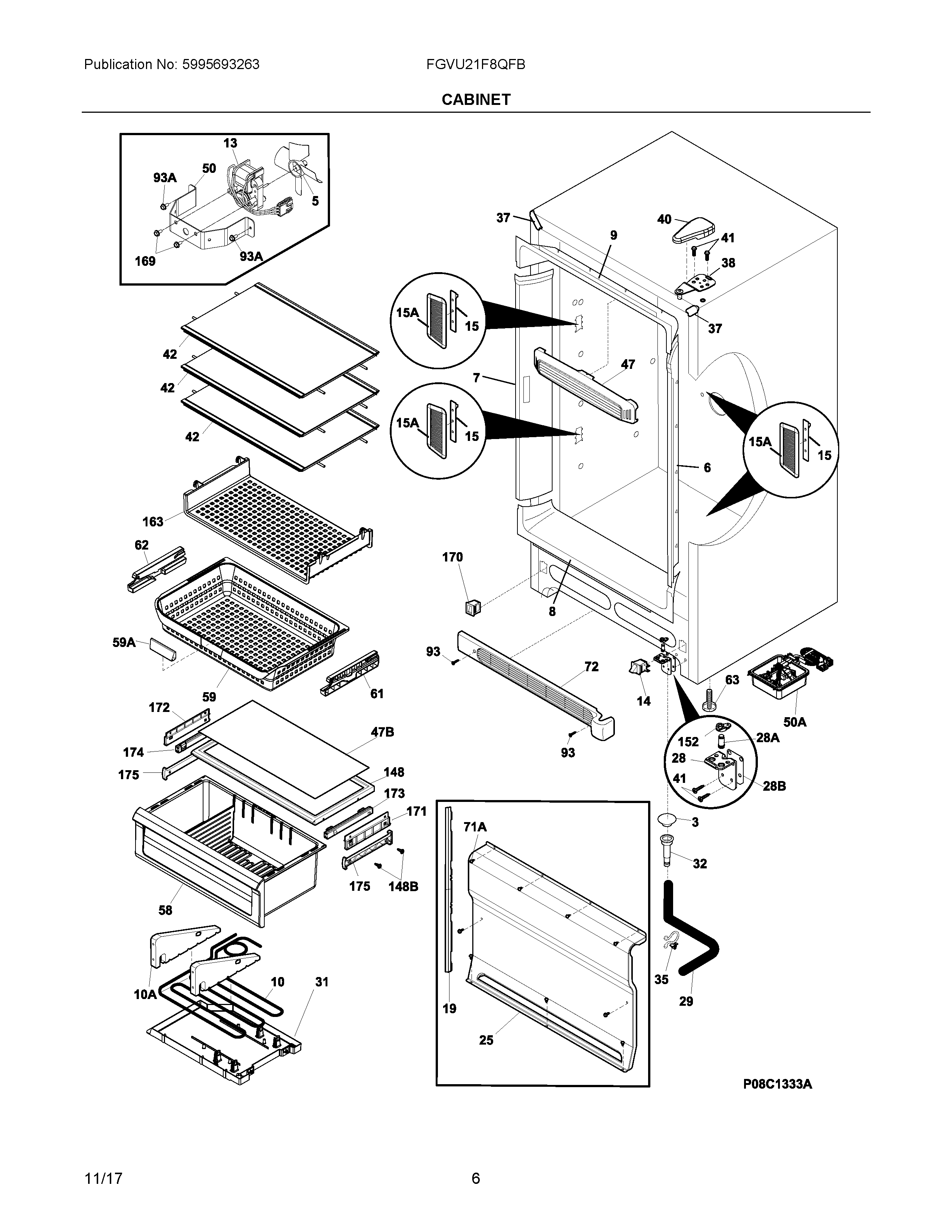

FGVU21F8QFB 03 – CABINET

FGVU21F8QFB 03 – CABINET

Written by

in

FGVU21F8QFB 03 – CABINET

Products

PositionProduct
NIAHANDLE BASKET, FREEZER GRE
NIWCI 5304496638
NIBWCI 5304494017
NI5304496283 Frigidaire Refrigerator Grommet
NIWCI 5304496697
NIAA808408304 Frigidaire Refrigerator Clip
NIA216502400 Frigidaire Refrigerator Grommet Unit
NIABracket,LH leg levelor
NIBBracket,RH leg levelor
NIWCI 5303313703
3216503100 Frigidaire Refrigerator Screen-Drain
55304513294 Frigidaire Refrigerator Freezer Fan Blade
6297435605 Frigidaire Refrigerator Breaker
7297435604 Frigidaire Refrigerator Breaker
8297403902 Frigidaire Refrigerator Breaker
9297403901 Frigidaire Refrigerator Breaker
10WCI 297334500
10AWCI 297177400
13EVAP FAN MOTOR – 115V
14216822900 Frigidaire Refrigerator Switch
15242196204 Frigidaire Refrigerator Light Board
15A242202701 Frigidaire Refrigerator Lens
19216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
25WCI 297099251
26297415900 Frigidaire Door Closer Ramp
28297416301 Frigidaire Refrigerator Hinge
28A297438300 Frigidaire Refrigerator Pin
295304512272 Frigidaire Hose Drain
31297165805 Frigidaire Refrigerator Pan-Drain
325304511843 Frigidaire Refrigerator Sleeve
35216273000 Frigidaire Refrigerator Strap
37297273906 Frigidaire Refrigerator Corner Trim Cabinet
38297283803 Frigidaire Freezer Upper Door Hinge
40WCI 297164405
41240578902 Frigidaire Screw Mounting Hinge
425304497873 Frigidaire Refrigerator Shelf
47B297102704 Frigidaire Glass Crisper Cover
47297192903 Frigidaire Refrigerator Baffle
50A5304500699 Frigidaire Refrigerator Board Assembly
50216394050 Frigidaire Refrigerator Bracket
58BIN, CRISPER, ASSY
59A808408301 Frigidaire Refrigerator Clip
59BASKET
61808902901 Frigidaire Hanging Basket Hanger
62808902902 Frigidaire Hanging Basket Support, Left Hand
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71AScrew,8-18AB x.470 QX
72297387705 Frigidaire Refrigerator Kickplate/Grille
86216036601 Frigidaire Refrigerator Screw
93216858001 Frigidaire Refrigerator Screw
93A241853202 Frigidaire Refrigerator Screw
148WCI 297271700
148B297142600 Frigidaire Refrigerator/Freezer Screw
1525304511026 Frigidaire Refrigerator Freezer Hinge Bearing
163808617701 Frigidaire Refrigerator Shelf
169216912401 Frigidaire Refrigerator Screw
170297280403 Frigidaire Refrigerator Valve
171297092700 Frigidaire Refrigerator Bracket
172297092701 Frigidaire Refrigerator Bracket
1735304515502 Frigidaire Refrigerator Slide
1745304515501 Frigidaire Refrigerator Slide
175297099500 Frigidaire Refrigerator Support
