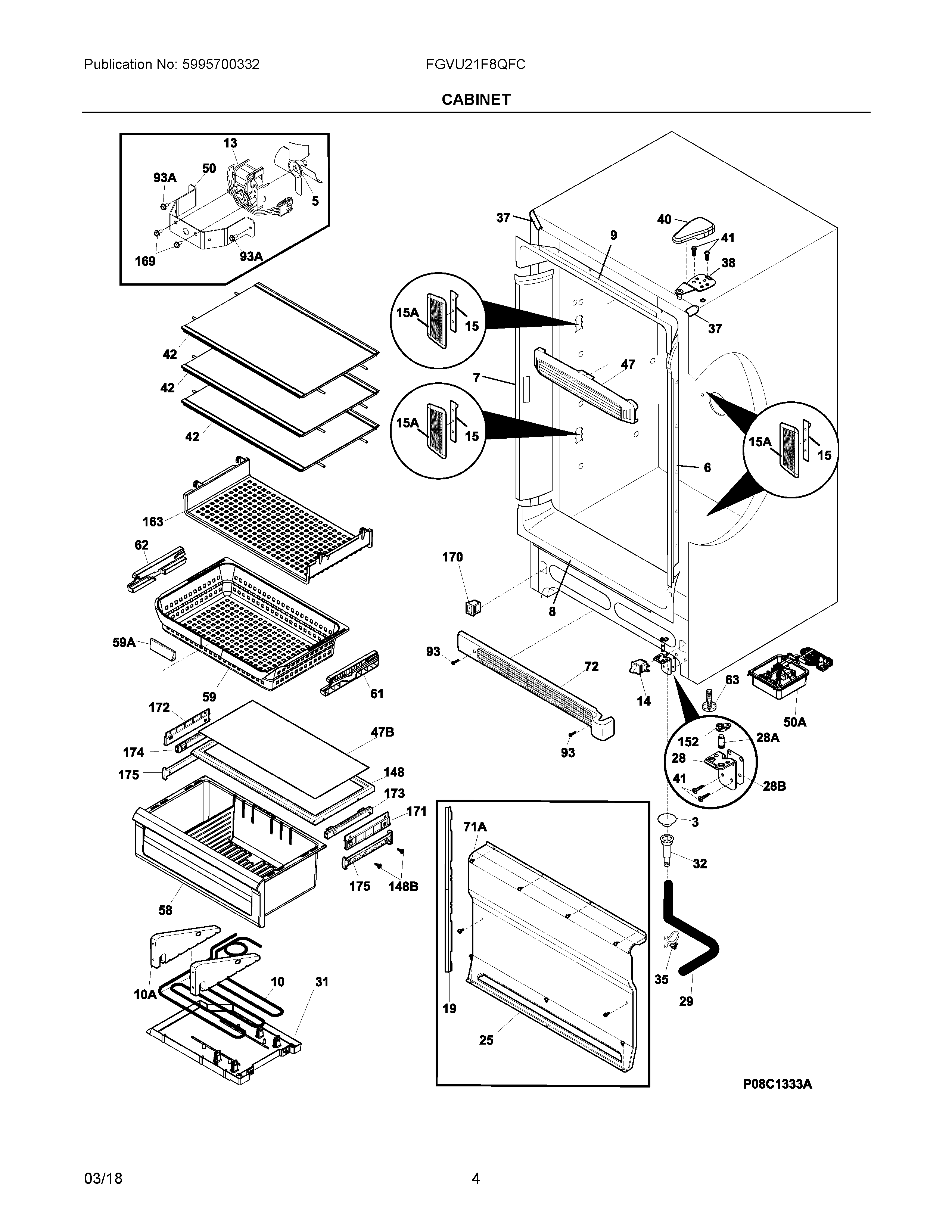

FGVU21F8QFC 03 – CABINET

FGVU21F8QFC 03 – CABINET

Written by

in

FGVU21F8QFC 03 – CABINET

Products

Position	Product
NI	WCI 5304496697
NI	WCI 5304505755
NI	5304498525 Frigidaire Service Data Sheet
NI	216337701 Frigidaire Refrigerator Screw
NI	WCI 5304508308
NI	5304496283 Frigidaire Refrigerator Grommet
NIA	216502400 Frigidaire Refrigerator Grommet Unit
NIA	Bracket,LH leg levelor
NIB	Bracket,RH leg levelor
NI	WCI 5303313703
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5304513294 Frigidaire Refrigerator Freezer Fan Blade
6	297435605 Frigidaire Refrigerator Breaker
7	297435604 Frigidaire Refrigerator Breaker
8	297403902 Frigidaire Refrigerator Breaker
10	WCI 297334500
10A	WCI 297177400
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15A	242202701 Frigidaire Refrigerator Lens
15	5304525264 Frigidaire LED Light
19	216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
25	WCI 297099251
26	297415900 Frigidaire Door Closer Ramp
26A	CASE-CRISPER, DEEP
28	297416301 Frigidaire Refrigerator Hinge
28A	297438300 Frigidaire Refrigerator Pin
29	5304510353 Frigidaire Refrigerator Hose
31	297165805 Frigidaire Refrigerator Pan-Drain
32	5304511843 Frigidaire Refrigerator Sleeve
35	216273000 Frigidaire Refrigerator Strap
37	297273906 Frigidaire Refrigerator Corner Trim Cabinet
38	297283803 Frigidaire Freezer Upper Door Hinge
40	WCI 297164405
41	240578902 Frigidaire Screw Mounting Hinge
42	5304497873 Frigidaire Refrigerator Shelf
47	297192903 Frigidaire Refrigerator Baffle
47B	297102704 Frigidaire Glass Crisper Cover
50A	5304500699 Frigidaire Refrigerator Board Assembly
50	216394050 Frigidaire Refrigerator Bracket
58	BIN, CRISPER, ASSY
59	BASKET
59A	808408301 Frigidaire Refrigerator Clip
61	808902901 Frigidaire Hanging Basket Hanger
62	808902902 Frigidaire Hanging Basket Support, Left Hand
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71A	Screw,8-18AB x.470 QX
72	297387705 Frigidaire Refrigerator Kickplate/Grille
86	216036601 Frigidaire Refrigerator Screw
93A	241853202 Frigidaire Refrigerator Screw
93	216858001 Frigidaire Refrigerator Screw
148	WCI 297271700
148B	297142600 Frigidaire Refrigerator/Freezer Screw
152	5304511026 Frigidaire Refrigerator Freezer Hinge Bearing
163	808617701 Frigidaire Refrigerator Shelf
169	216912401 Frigidaire Refrigerator Screw
170	297280403 Frigidaire Refrigerator Valve
171	297092700 Frigidaire Refrigerator Bracket
172	297092701 Frigidaire Refrigerator Bracket
173	5304515502 Frigidaire Refrigerator Slide
174	5304515501 Frigidaire Refrigerator Slide
175	297099500 Frigidaire Refrigerator Support
