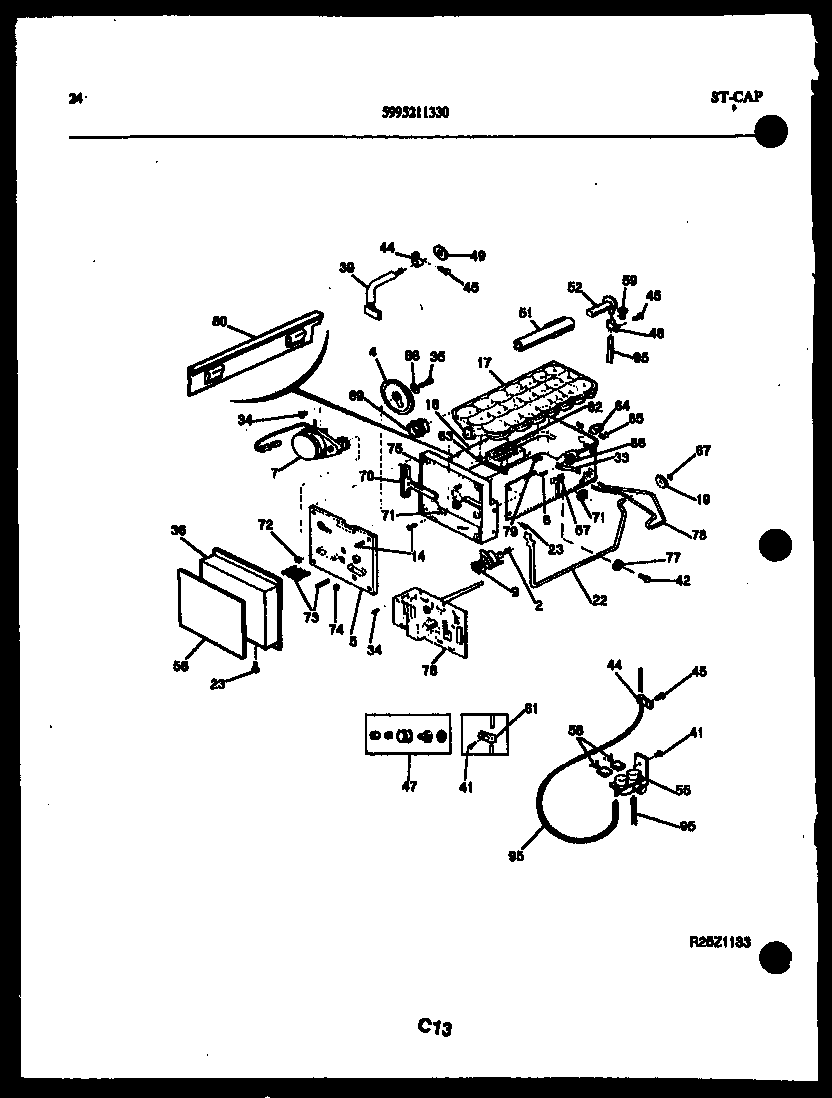

FGW240JN1D 13 – ICE MAKER PARTS

Products

Position	Product
*22092	WCI 5308000247
*22092	HOLDER-CABLE
63	WCI 5301138379
64	WCI 5300618683
65	WCI 5303001132
66	PUSHNUT
67	RETAINING RING (NON-ILLUSTRATED)
68	WCI 5303001117
69	WCI 5301124972
70	WCI 5303001136
71	WASHER
72	NUT - HEX 10-32 LH
73	FOLLOWER-CAM (PIN)
74	RETAINING RING
75	HOUSING-ICE MAKER
76	PRINTED CIRCUIT BOARD
77	WASHER-NYLON,3/16 X 5/8 OD
78	WIRE-SHUT OFF
79	RETAINER-SHUT OFF WIRE (NON-ILLUSTRATED)
80	WCI 5300175135
95	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
