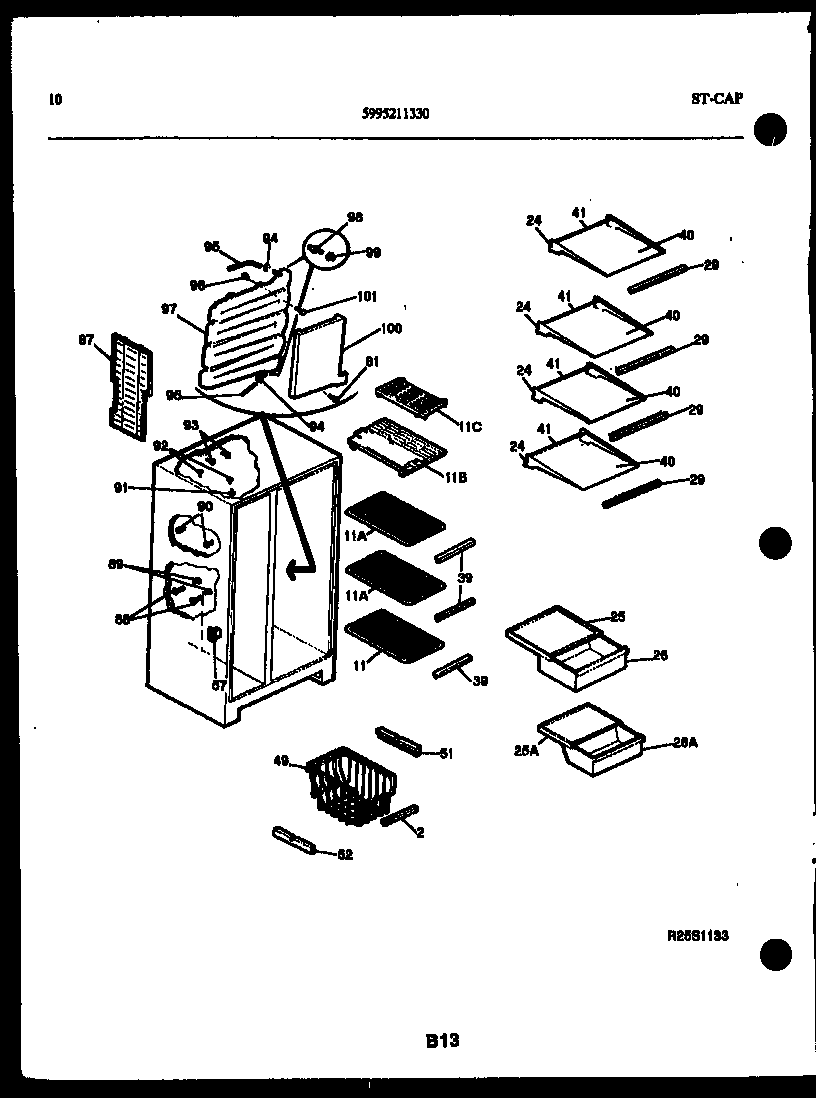

FGW240JN1W 06 – SHELVES AND SUPPORTS

FGW240JN1W 06 – SHELVES AND SUPPORTS

Written by

in

FGW240JN1W 06 – SHELVES AND SUPPORTS

Products

PositionProduct
2ASCREW-TRIM MTG. (2) (NON-ILLUSTRATED)
2WCI 5303279494
11ASHELF-FREEZER, (3)
11CSHELF-FREEZER (UPPER)
11BSHELF-FREEZER
11WCI 08001031
24FRAME-SHELF (3)
25COVER-CRISPER PAN, MIDDLE
25AWCI 5316972401
26WCI 5303275958
26AWCI 5303275959
29WCI 5303276031
29ARETAINER-GLASS (3) (NON-ILLUSTRATED)
39WCI 5303279824
40WCI 5303279782
41WCI 5303276022
41ALOCK-SHELF TRIM, REAR
49WCI 5308001015
51WCI 5303001098
52WCI 5303001099
57WCI 5303271653
57WCI 5303271652
815304455650 Frigidaire Refrigerator Screw
87WCI 5308010353
88SUPPORT-SHELF (2)
89SCREW (2)
90ASCREW (2)
90WCI 5303001291
91SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
92SUPPORT-ICE ACCESS DR
93SUPPORT-SPEC BARREL (2)
