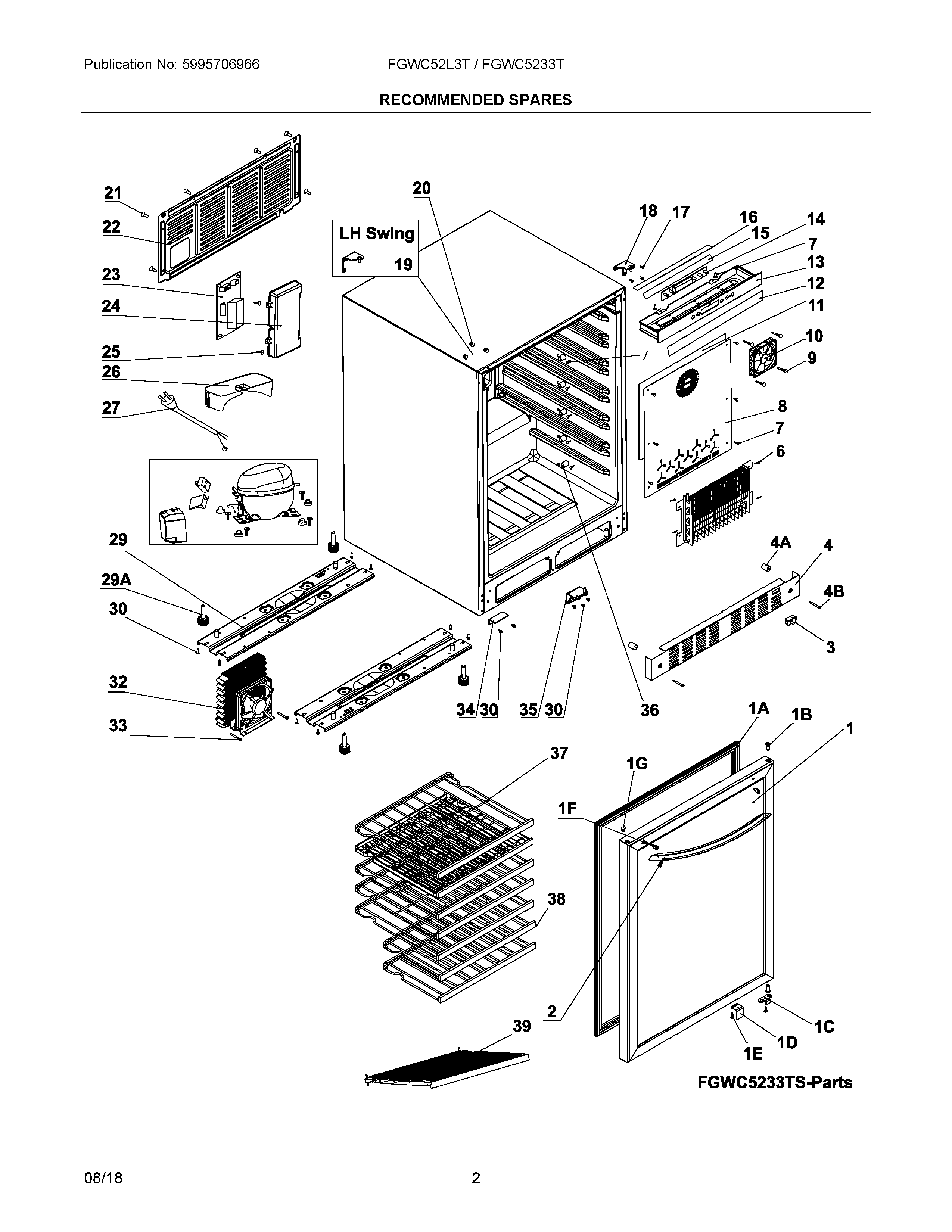

FGWC5233TS 02 – RECOMMENDED SPARES

Products

Position	Product
1E	5304479804 Frigidaire Screw
1A	GASKET, DOOR
1	5304513159 Frigidaire Refrigerator Door Assembly
1D	5304513162 Frigidaire Stop
1B	5304513161 Frigidaire Bearing
1C	5304479790 Frigidaire Refrigerator Stop
1F	5304513163 Frigidaire Refrigerator Screw
1G	5304479809 Frigidaire Refrigerator Plug
2	5304513164 Frigidaire Refrigerator Handle
3	5304479794 Frigidaire Refrigerator Switch
4B	SCREW, TOE GRILLE, (2)
4A	5304513166 Frigidaire Spacer
4	5304513165 Frigidaire Refrigerator Toe Grille
6	SCREW, EVAPORATOR, (5)
7	SCREW, TAPPING, (26)
8	COVER, EVAPORATOR, AIR DUCT
9	5304513172 Frigidaire Refrigerator Gasket
10	5304513173 Frigidaire Refrigerator Fan Motor
11	INSULATION, SPONGE, ALUMINUM FOIL
12	5304513175 Frigidaire Refrigerator Overlay
13	5304513176 Frigidaire Refrigerator Control Box
14	5304513177 Frigidaire Refrigerator Control Assembly
15	5304513178 Frigidaire Refrigerator Lamp
16	COVER, LAMP, VERTICAL
17	5304513180 Frigidaire Screw
18	5304513181 Frigidaire Refrigerator Hinge Assembly
19	5304518966 Frigidaire Refrigerator Hinge
20	5304513182 Frigidaire Plug
21	5304512578 Frigidaire Screw
22	COVER, MACHINE COMPART
23	5304513184 Frigidaire Refrigerator Board Control
24	5304513185 Frigidaire Refrigerator Cover
25	SCREW,TAPPING
26	5304513186 Frigidaire Tray
27	5304513187 Frigidaire Refrigerator Cord
29	5304513189 Frigidaire Refrigerator Base Panel
29A	5304513190 Frigidaire Refrigerator Leg
30	5304480019 Frigidaire Refrigerator Screw
32	5304513192 Frigidaire Refrigerator Fan Motor
33	WCI 5304498686
34	SUPPORT, DOOR
35	WCI 5304479792
36	STOP, RACK, (14)
37	5304513195 Frigidaire Refrigerator Rack
38	5304513196 Frigidaire Rack
39	5304513197 Frigidaire Rack
