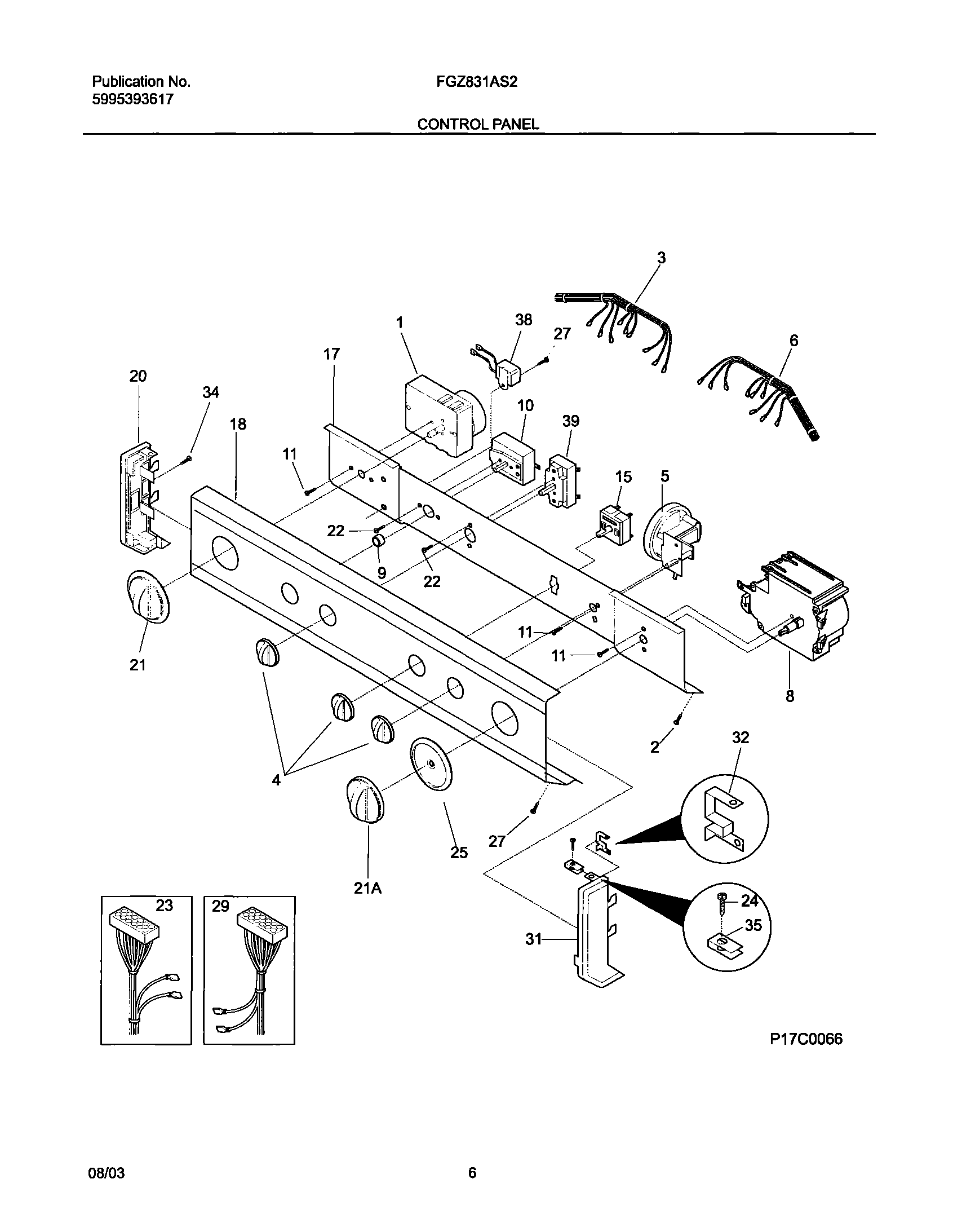

FGZ831AS2 07 – CONTROL PANEL

Products

Position	Product
NI	131209800 Frigidaire Clamp
NI	5303161300 Frigidaire Strap
1	TIMER
2	131168200 Frigidaire Dryer Screw
3	WCI 134066100
4	131873401 Frigidaire Washer Control Knob
5	WCI 131827400
6	WCI 134122200
8	WASHER TIMER
9	WCI 131111501
10	WCI 131628900
11	218359202 Frigidaire Refrigerator Screw
15	WCI 131620800
17	WCI 131983410
18	Panel,trimplate ,console front
20	WCI 131288101
21A	WCI 131977201
21	131873304 Frigidaire Dryer Timer Knob White
22	WCI 131311700
23	WCI 131848700
24	134156200 Frigidaire Screw
25	WCI 131976804
27	131892100 Frigidaire Screw
29	WCI 134113400
31	WCI 131288211
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303286537
39	Switch,rotary ,2 position
