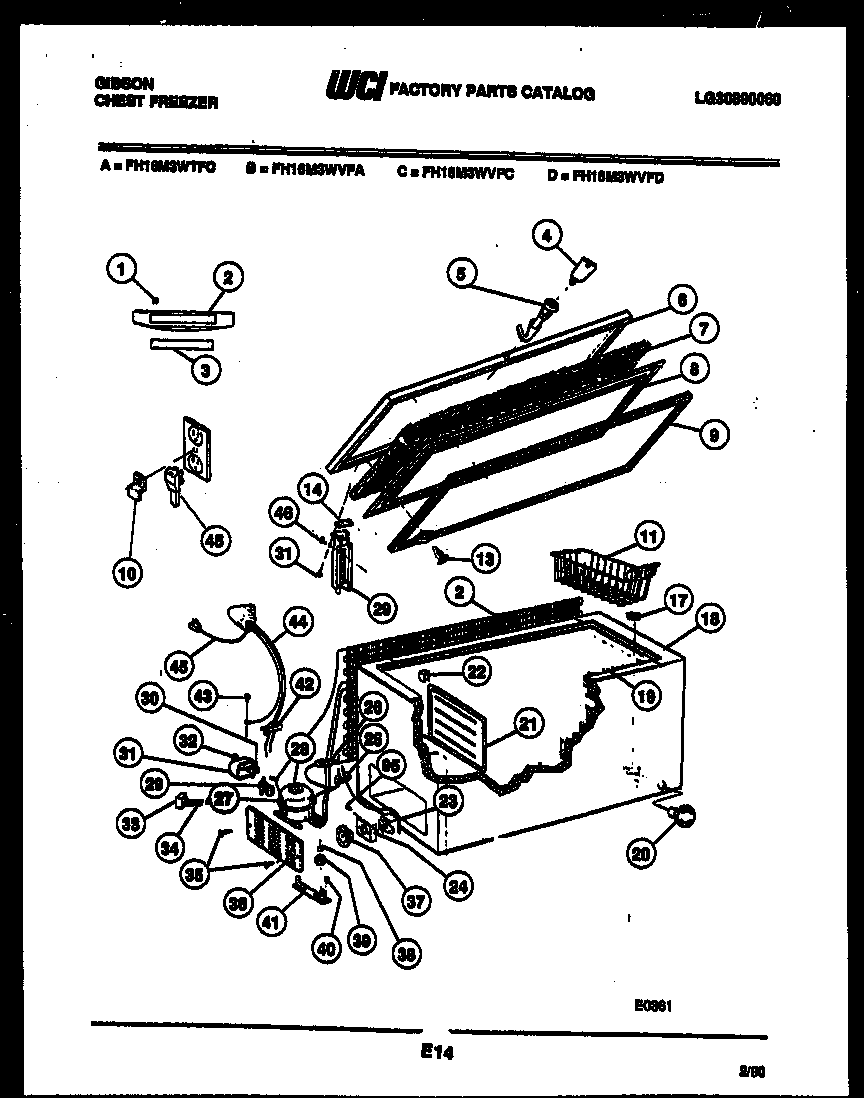

FH16M3WVFD 02 – CHEST FREEZER PARTS

Products

Position	Product
1	FASTENER HANDLE (2)
2	WCI F118097
3	WCI F300245
4	297147700 Frigidaire Freezer Plastic Door Key
5	WCI 5300190358
6	PANEL-LID (WHITE TEXTURE)
7	WCI F128901
8	WCI F129133
9	WCI F128163
10	WCI F128777
11	WCI F128513
12	5303925238 Frigidaire Refrigerator Primary Condenser (O/S1)
13	5303212828 Frigidaire Refrigerator Primary Clip
14	SPACER-HINGE
15	SCREW-HINGE
16	297321900 Frigidaire Refrigerator Hinge Assembly
18	BREAKER-END (2)
19	BREAKER-FR & REAR
20	PLUG-DRAIN
21	WCI F129067
22	SUPPORT (4)
23	CONTROL TEMP
24	WCI F127315
25	GROMMET
26	5303305677 Frigidaire Replacement Filter Dryer Filters
27	COMPRESSOR
28	WCI 3017760
29	CLIP
30	WCI F300398
31	WCI 08016583
32	STRAP-BALE
33	5304464438 Frigidaire Compressor Run Capacitor
34A	WCI 08017013
34	WCI F300579
35	216858001 Frigidaire Refrigerator Screw
36	PANEL
37	KNOB
38	CLIP
39	218513300 Frigidaire Refrigerator Compressor Mount Grommet
40	SCREW
41	CONTROL KNOB
42	5303212614 Frigidaire Refrigerator Clip
43	216036601 Frigidaire Refrigerator Screw
44	HARNESS-W/ PWR CORD
45	CORD, SERVICE
46	SCREW HINGE
