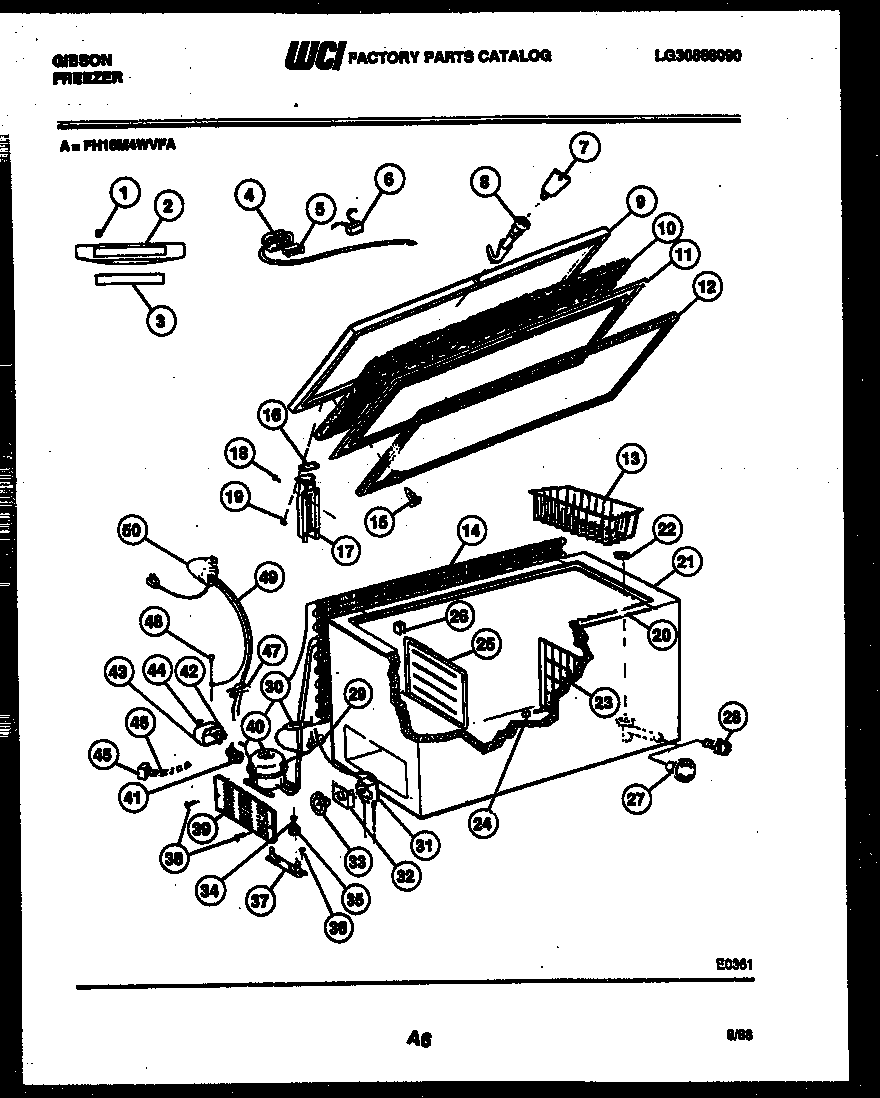

FH18M4WVFA 02 – CHEST FREEZER PARTS

Products

Position	Product
1	FASTENER HANDLE (2)
2	WCI F118097
3	WCI F300245
4	WCI F126469
5	WCI 3017178
6	WCI 3200697
7	297147700 Frigidaire Freezer Plastic Door Key
8	WCI G190358
9	WCI 3200695
9	WCI 3200694
10	WCI F128901
11	WCI F129134
11	WCI 3091428
12	GASKET LID
13	WCI F128513
14	5303925238 Frigidaire Refrigerator Primary Condenser (O/S1)
15	5303212828 Frigidaire Refrigerator Primary Clip
16	SPACER HINGE WING
17	WCI F3925006
18	SCREW-HINGE
19	SCREW (8)
20	BREAKER REAR
20	WCI 3925018
21	BREAKER-END (2)
23	WCI 3017750
24	WCI F81586
25	WCI F129067
26	SUPPORT (4)
27	PLUG-DRAIN
28	HOSE ADAPTER
29	WCI F300102
30	5303305677 Frigidaire Replacement Filter Dryer Filters
31	WCI F301320
32	WCI F127315
33	KNOB
34	CLIP
35	218513300 Frigidaire Refrigerator Compressor Mount Grommet
36	SCREW
37	CONTROL KNOB
38	216858001 Frigidaire Refrigerator Screw
39	PANEL
40	WCI F302080
40	WCI F300639
41	WCI F300397
42	WCI F300398
44	5303006412 Frigidaire Refrigerator Cover Mounting Strap
45	5304464438 Frigidaire Compressor Run Capacitor
46	WCI F300579
48	216036601 Frigidaire Refrigerator Screw
49	WCI F301618
50	CORD, SERVICE
