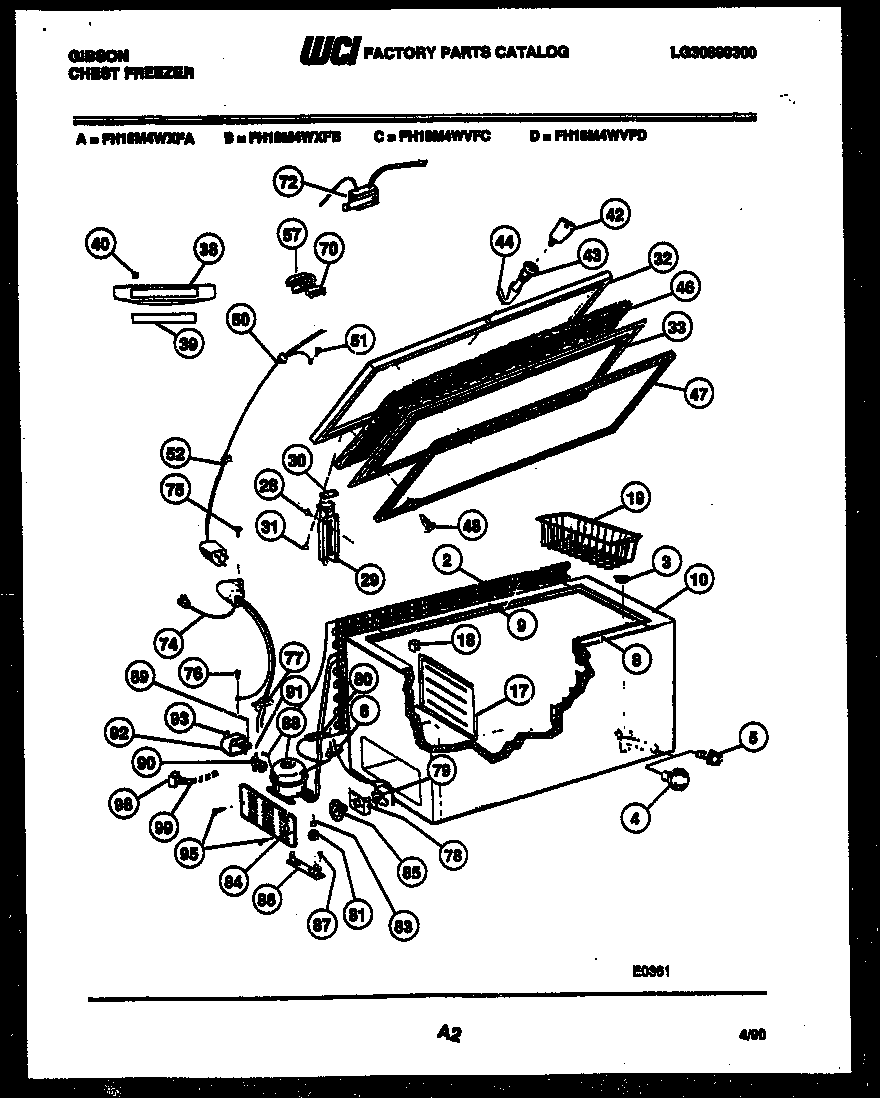

FH18M4WXFB 02 – CHEST FREEZER PARTS

Products

Position	Product
2	WCI 5300120781
3	PLUG, DRAIN, LINER
4	WCI 5300128045
5	WCI 06594053
6	GROMMET-CONTROL TUBE
7	WCI 5303207301
9	BREAKER REAR
10	WCI 5303207302
17	WCI F129066
18	WCI 5306594584
19	WCI 5303204811
28	WCI 5309950602
29	297321900 Frigidaire Refrigerator Hinge Assembly
30	WCI 08037853
31	SCREW HINGE BASE
32	WCI 5303210021
33	WCI 3091428
38	WCI 5309950054
39	WCI 5303209993
40	WCI 5309948647
42	297147700 Frigidaire Freezer Plastic Door Key
43	WCI 5300190358
44	WCI 5300300791
44B	LATCH CATCH SUPPORT
44A	LATCH, DOOR
46	WCI 5300128901
47	WCI F128175
48	5303212828 Frigidaire Refrigerator Primary Clip
49	WCI 5309948955
50	WCI 3200696
57	WCI 5308037857
70	WCI 5303017178
72	WCI 3200697
74	WCI 3200699
76	216036601 Frigidaire Refrigerator Screw
77	5303212614 Frigidaire Refrigerator Clip
78	WCI 5308016760
79	WCI 5303017689
80	5303305677 Frigidaire Replacement Filter Dryer Filters
81	218513300 Frigidaire Refrigerator Compressor Mount Grommet
83	CLIP (3)
84	ACCESS PANEL-WHITE
85	WCI 5303091432
86	SUPPORT (2)
87	SCREW-COMPRESOR,IND HEX WSHR HD ,10-32T X 1/2,SUPPORT
88	COMPRESSOR
89	WCI 5303017753
90	WCI 3017760
92	WCI 08016583
93	STRAP-BALE
95	216858001 Frigidaire Refrigerator Screw
98	CAPACITOR
98	5304464438 Frigidaire Compressor Run Capacitor
99	HARNESS CAPACITOR
99	WCI 5303091425
