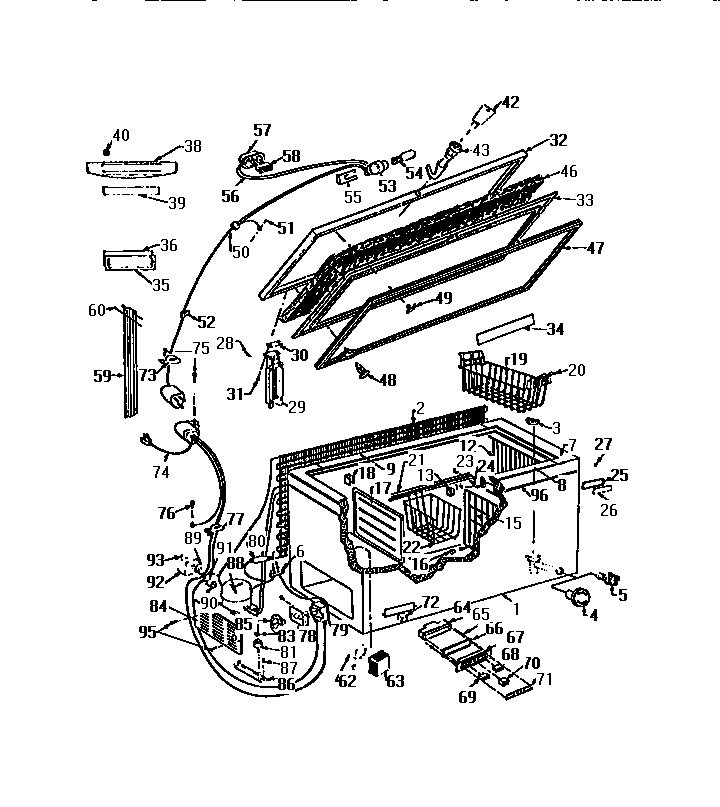

FH23M5WTFA 01 – CHEST FREEZER PARTS

Products

Position	Product
*94482	WCI F128777
2	5300300173 Frigidaire Refrigerator Condenser (O/S2)
4	PLUG-DRAIN
6	GROMMET
7	BREAKER-END (2)
8	WCI F128146-5
9	WCI F128147-5
12	WCI F128270
13	WCI F128286
14	WCI F128362
17	WCI F129067
18	SUPPORT (4)
19	BASKET
20	WCI F129152
23	WCI F50144 (4)
24	WCI F54679 (4)
28	SCREW HINGE
29	297321900 Frigidaire Refrigerator Hinge Assembly
30	SPACER (2)
31	SCREW-HINGE
32	WCI F129131-S
33	PANEL INNER (ALMD)
38	WCI F118097
39	WCI F128761
40	FASTENER HANDLE (2)
42	297147700 Frigidaire Freezer Plastic Door Key
46	WCI F128900
47	WCI F128167
48	WCI F114681 (49)
49	WCI F186215
50	HARNESS-LID
52	RETAINER LEAD WIRE
56	WCI F94494 (2)
57	WCI F126469
58	WCI F128000
74	WIRE HARNESS
76	216036601 Frigidaire Refrigerator Screw
77	5303212614 Frigidaire Refrigerator Clip
78	WCI F127315
79	CONTROL TEMP
80	5303305677 Frigidaire Replacement Filter Dryer Filters
81	218513300 Frigidaire Refrigerator Compressor Mount Grommet
83	CLIP
84	PANEL
85	KNOB
86	SUPPORT
87	SCREW
88	WCI F128636
89	WCI F128637
90	WCI F128638
93	5303006412 Frigidaire Refrigerator Cover Mounting Strap
95	216858001 Frigidaire Refrigerator Screw
