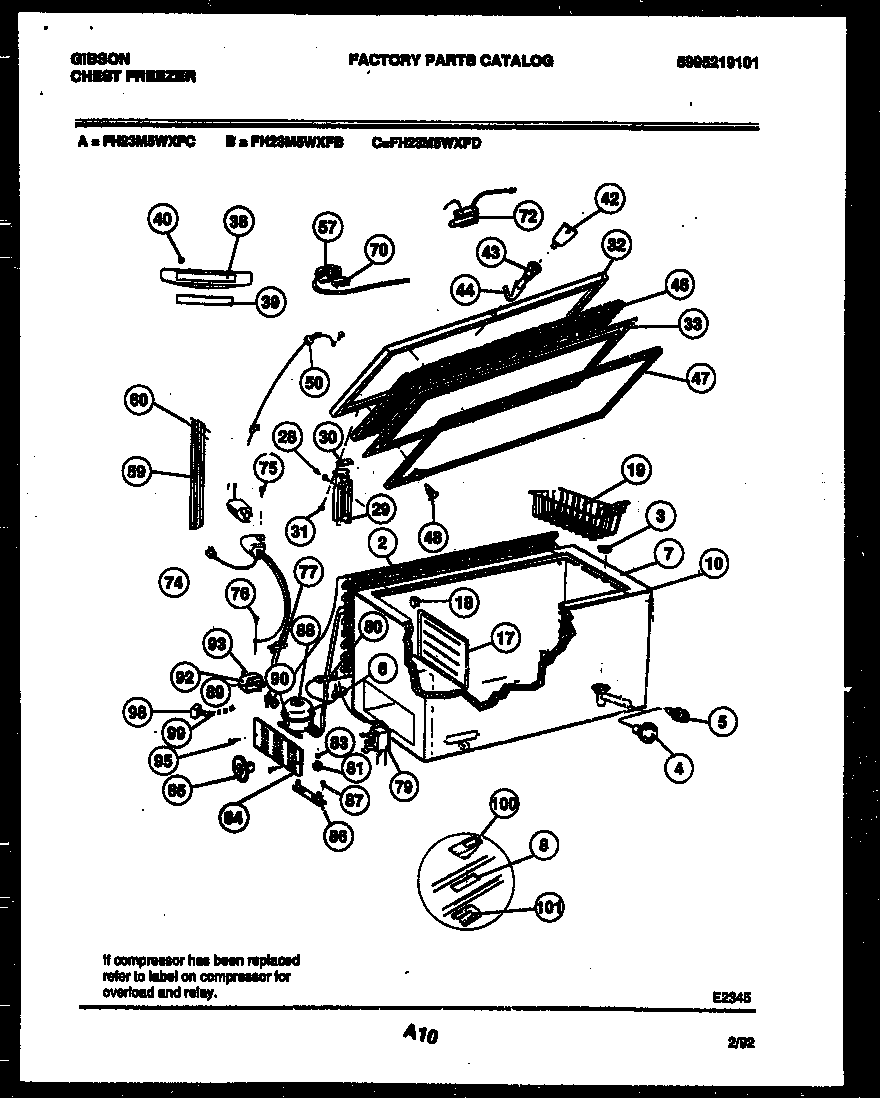

FH23M5WXFC 02 – CHEST FREEZER PARTS

FH23M5WXFC 02 – CHEST FREEZER PARTS

Written by

in

FH23M5WXFC 02 – CHEST FREEZER PARTS

Products

PositionProduct
25300300173 Frigidaire Refrigerator Condenser (O/S2)
3PLUG, DRAIN, LINER
4WCI 5300128045
5WCI 06594053
6GROMMET-CONTROL TUBE
7WCI 5303207301
9BREAKER REAR
10WCI 5303207302
17WCI F129066
18WCI 5306594584
19WCI 5303204811
28SCREW HINGE BASE
29297321900 Frigidaire Refrigerator Hinge Assembly
30WCI 08037853
31WCI 5309950602
32WCI 5303925089
33PANEL INNER LID-WHITE
38WCI 5303270968
39WCI 5303270969
40WCI 5309948647
42297147700 Frigidaire Freezer Plastic Door Key
43WCI 5303925107
44WCI 5300300791
46WCI 5300128901
47WCI F128167
485303212828 Frigidaire Refrigerator Primary Clip
50WCI 5303270970
57WCI 5308037857
59WCI 5303270971
60131168200 Frigidaire Dryer Screw
70WCI 5303017178
70BGASKET, WHITE
70AWCI 3202657
72WCI 5303208483
74WCI 5303270972
76216036601 Frigidaire Refrigerator Screw
775303212614 Frigidaire Refrigerator Clip
79COLD CONTROL
805303305677 Frigidaire Replacement Filter Dryer Filters
81218513300 Frigidaire Refrigerator Compressor Mount Grommet
83CLIP (3)
84WCI 5303212647
85WCI 5303270910
86SUPPORT (2)
87SCREW-COMPRESOR,IND HEX WSHR HD ,10-32T X 1/2,SUPPORT
88COMPRESSOR W/ ELECTRICALS-SERVICE
89216594300 Frigidaire Refrigerator Starter
89WCI 5303017753
90WCI 5303270406
935303006412 Frigidaire Refrigerator Cover Mounting Strap
95216858001 Frigidaire Refrigerator Screw
95ARETAINER POWER CORD (NOT ORIGINAL EQUIPMENT. CUSTOMER PU
98CAPACITOR
99WCI 5303091425
100LATCH, DOOR
101LATCH CATCH SUPPORT
