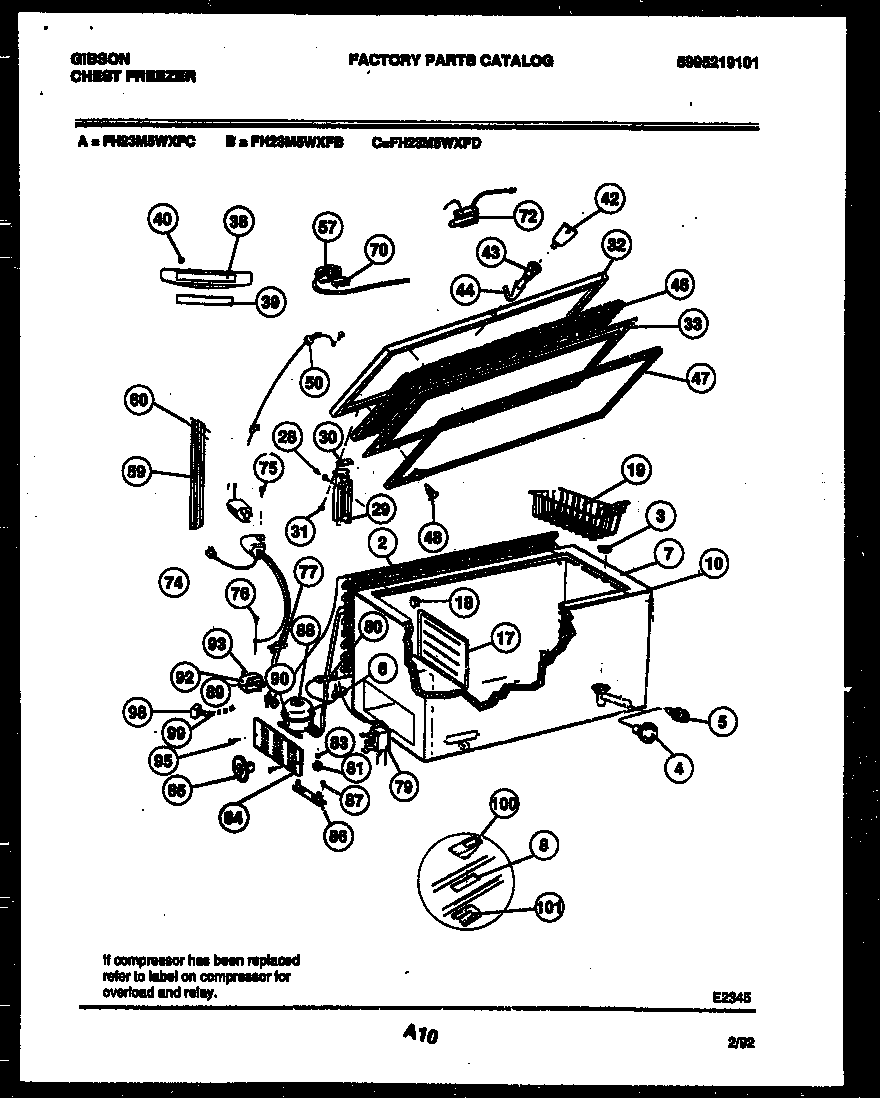

FH23M5WXFD 02 – CHEST FREEZER PARTS

Products

Position	Product
2	5300300173 Frigidaire Refrigerator Condenser (O/S2)
3	PLUG, DRAIN, LINER
4	WCI 5300128045
5	WCI 06594053
6	GROMMET-CONTROL TUBE
7	WCI 5303207301
9	BREAKER REAR
10	WCI 5303207302
17	WCI F129066
18	WCI 5306594584
19	WCI 5303204811
28	SCREW HINGE BASE
29	297321900 Frigidaire Refrigerator Hinge Assembly
30	WCI 08037853
31	WCI 5309950602
32	WCI 5303925089
33	PANEL INNER LID-WHITE
38	WCI 5309950054
39	WCI 5303270969
40	WCI 5309948647
42	297147700 Frigidaire Freezer Plastic Door Key
43	WCI 5303925107
44	WCI 5300300791
46	WCI 5300128901
47	WCI F128167
48	5303212828 Frigidaire Refrigerator Primary Clip
50	WCI 5303270970
57	WCI 5308037857
59	WCI 5303270971
60	131168200 Frigidaire Dryer Screw
70A	WCI 3202657
70B	GASKET, WHITE
70	WCI 5303017178
72	WCI 5303208483
74	HARNESS WIRING
76	216036601 Frigidaire Refrigerator Screw
77	5303212614 Frigidaire Refrigerator Clip
79	COLD CONTROL
80	5303305677 Frigidaire Replacement Filter Dryer Filters
81	218513300 Frigidaire Refrigerator Compressor Mount Grommet
83	CLIP (3)
84	WCI 216022700
85	WCI 5303208626
86	WCI 5303212615
87	SCREW-COMPRESOR,IND HEX WSHR HD ,10-32T X 1/2,SUPPORT
88	COMPRESSOR W/ ELECTRICALS-SERVICE
89	216594300 Frigidaire Refrigerator Starter
89	WCI 5303017753
90	WCI 5303270406
93	5303006412 Frigidaire Refrigerator Cover Mounting Strap
95	216858001 Frigidaire Refrigerator Screw
95A	RETAINER POWER CORD (NOT ORIGINAL EQUIPMENT. CUSTOMER PU
98	CAPACITOR
99	WCI 5303280303
100	LATCH, DOOR
101	LATCH CATCH SUPPORT
