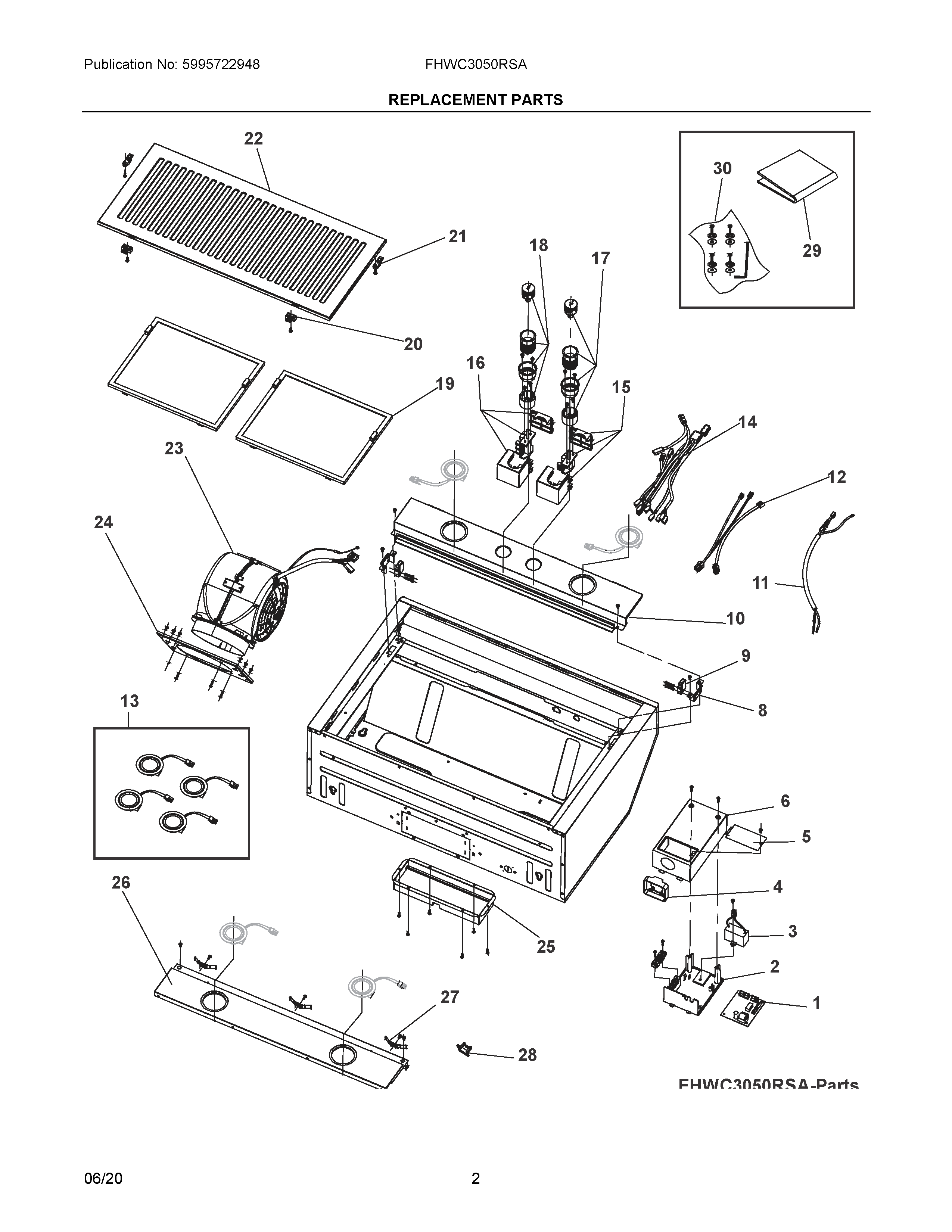

FHWC3050RSA 02 – REPLACEMENT PARTS

Products

PositionProduct
1CONTROL, PCB BOARD
2PLATE, CONTROL MTG.
35304504575 Frigidaire Capacitor
4BOOT, CONTROL, PLASTIC
5COVER, CONTROL BOX, TOP
6COVER, CONTROL, ELECTRICAL
8BRACKET, LATCH, (2)
9LATCH, (2)
10PANEL, LIGHT/SWITCH, FRONT
115304504582 Frigidaire Harness Assembly
125304504583 Frigidaire Harness
135304525391 Frigidaire Lamp Kit Assembly
145304532998 Frigidaire Harness
155304504585 Frigidaire Switch Assembly
165304504586 Frigidaire Assembly-Switch
17KNOB ASSEMBLY, FAN
185304504588 Frigidaire Knob Assembly
195304504589 Frigidaire Filter
205304504590 Frigidaire Hinge Bracket
21LATCH, COVER, VENT GRILLE, (2)
22COVER, VENT GRILLE
235304504593 Frigidaire Blower Assembly
24BRACKET, INSTALL, BLOWER MOTOR
25DAMPER, VENT EXHAUST
26PANEL, LIGHT, REAR
27SPRING, RETAINER, FILTER, (3)
28RETAINER CLIP, PLASTIC, HARNESS, (2)
29MANUAL ASSY., USE & CARE, INSTALLATION
30MOUNTING HARDWARE
