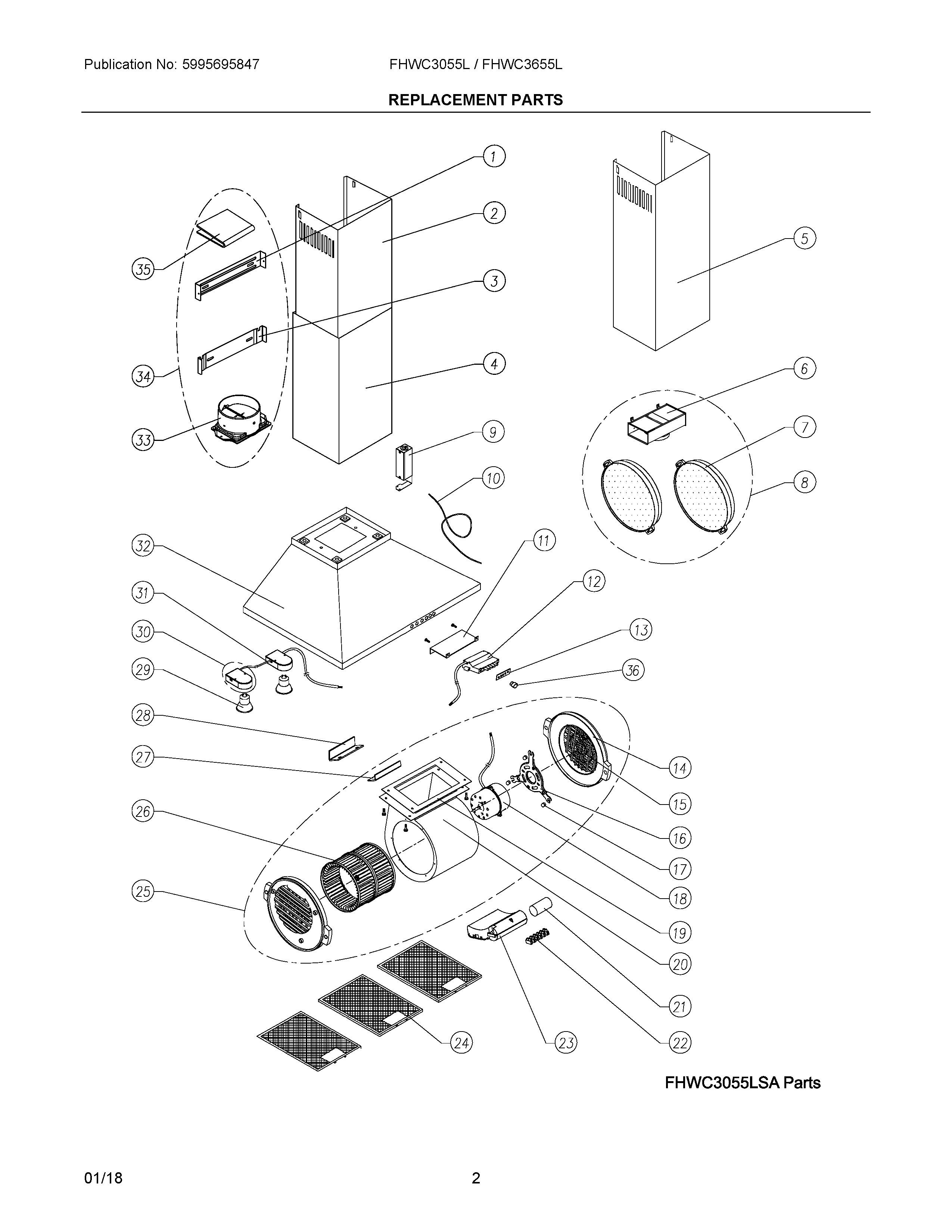

FHWC3055LSA 02 – REPLACEMENT PARTSadmin2025-04-26T08:38:46+00:00FHWC3055LSA 02 – REPLACEMENT PARTS
Products
| Position | Product |
|---|
| 1 | 5304482262 Frigidaire Installation Kit |
| 2 | 5304482226 Frigidaire Oven Chimney |
| 4 | 5304482228 Frigidaire Oven Chimney |
| 5 | 5304482229 Frigidaire Oven Chimney |
| 6 | 5304482230 Frigidaire Recirculation Housing |
| 7 | 5304482231 Frigidaire Filter |
| 8 | 5304482232 Frigidaire Recirculation Kit |
| 9 | JUNCTION BOX, POWER CORD |
| 10 | POWER CORD, ELECTRIC, W/O PLUG |
| 11 | BRACKET, SWITCH |
| 12 | 5304482236 Frigidaire Oven Range Hood Switch |
| 13 | 5304482237 Frigidaire Oven Gasket |
| 14 | COVER, BLOWER MOTOR |
| 15 | GRILLE, MOTOR COVER |
| 16 | BRACKET, MOTOR MOUNT |
| 17 | GROMMET, MOTOR MOUNT, RUBBER |
| 18 | 5304529524 Frigidaire Motor Assembly with Capacitor |
| 19 | INSULATOR, ANTIVIBRATION, SEAL |
| 20 | HOUSING, BLOWER ASSEMBLY, SCROLL |
| 22 | TERMINAL BLOCK |
| 23 | 5304482251 Frigidaire Terminal Box |
| 24 | 5304482254 Frigidaire Filter Assembly |
| 25 | 5304532176 Frigidaire Blower Assembly |
| 26 | 5304482256 Frigidaire Blower Wheel |
| 27 | SUPPORT, CASING/HOOD, CONNECTION |
| 28 | SUPPORT, MOTOR CASING, HOOD |
| 29 | 5304482257 Frigidaire Oven Lamp |
| 30 | 5304482258 Frigidaire Lamp Holder |
| 31 | 5304482315 Frigidaire Lamp Holder Assembly |
| 32 | HOOD, 30 INCH, STAINLESS STEEL |
| 36 | WCI 5304515443 |
