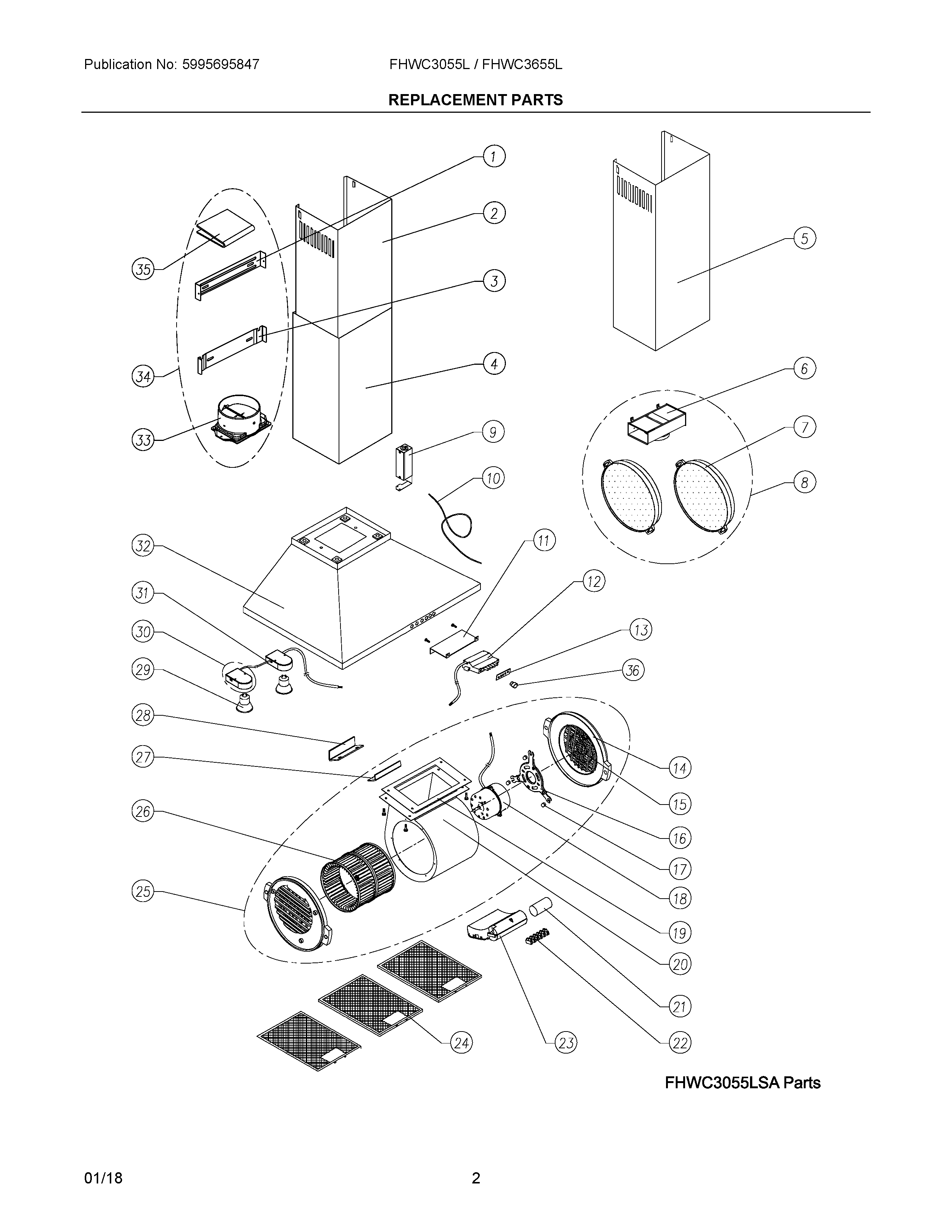

FHWC3655LSA 02 – REPLACEMENT PARTS

Products

PositionProduct
15304482262 Frigidaire Installation Kit
25304482226 Frigidaire Oven Chimney
45304482228 Frigidaire Oven Chimney
55304482229 Frigidaire Oven Chimney
65304482230 Frigidaire Recirculation Housing
75304482231 Frigidaire Filter
85304482232 Frigidaire Recirculation Kit
9JUNCTION BOX, POWER CORD
10POWER CORD, ELECTRIC, W/O PLUG
11BRACKET, SWITCH
125304482236 Frigidaire Oven Range Hood Switch
135304482237 Frigidaire Oven Gasket
14COVER, BLOWER MOTOR
15GRILLE, MOTOR COVER
16BRACKET, MOTOR MOUNT
17GROMMET, MOTOR MOUNT, RUBBER
185304529524 Frigidaire Motor Assembly with Capacitor
19INSULATOR, ANTIVIBRATION, SEAL
20HOUSING, BLOWER ASSEMBLY, SCROLL
22TERMINAL BLOCK
235304482251 Frigidaire Terminal Box
245304482252 Frigidaire Filter
255304532176 Frigidaire Blower Assembly
265304482256 Frigidaire Blower Wheel
27SUPPORT, CASING/HOOD, CONNECTION
28SUPPORT, MOTOR CASING, HOOD
295304482257 Frigidaire Oven Lamp
305304482258 Frigidaire Lamp Holder
315304482315 Frigidaire Lamp Holder Assembly
32HOOD, 36 INCH, STAINLESS STEEL
345304485279 Frigidaire Installation Kit
35TEMPLATE, INSTALLATION, 36" HOOD
36WCI 5304515443
