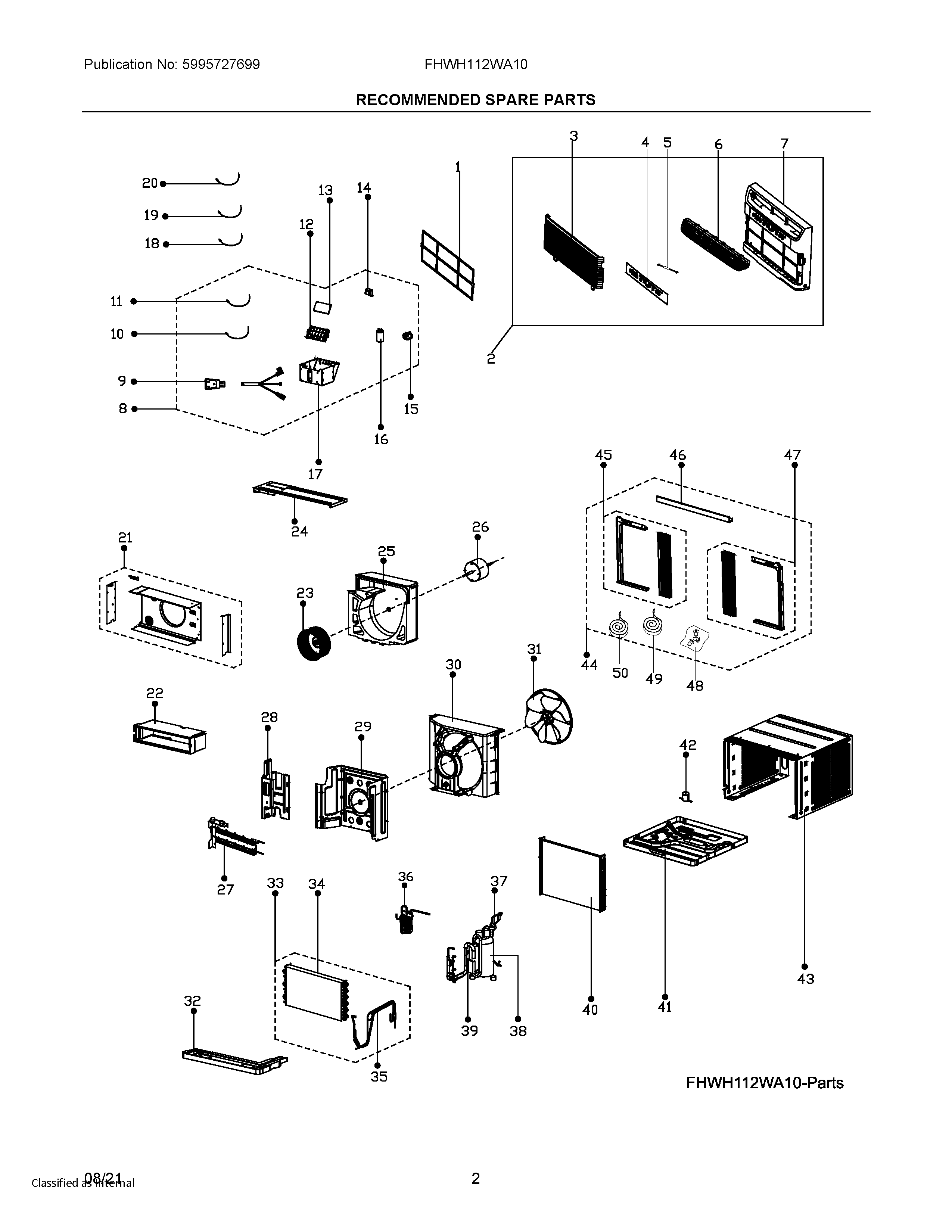

FHWH112WA10 02 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	5304529368 Frigidaire Filter
2	PANEL, FRAME, ASSYMBLY
3	PANLE, FRONT
4	5304521226 Frigidaire Display
5	5304521124 Frigidaire Air Conditioner Assembly Front
6	AIR, OUTLET
7	PANEL, FRAME
8	5304529373 Frigidaire Air Conditioner Electronic
10	POWER CORD
10A	5304521228 Frigidaire Blower Wheel
12	5304502097 Frigidaire Sensor Air Conditioner
13	5304529374 Frigidaire Control
13A	5304507757 Frigidaire Air Conditioner Fan Blade
15	WCI 5304517033
16A	WCI 5304521070
16	WCI 5304517034
17	WCI 5304517035
17A	WCI 5304521100
19	WCI 5304517037
22	FOAM ATION, AIR OUT
25	AIR, DUCT
26	MOTOR, FAN
27	5304529378 Frigidaire Heater Assembly
30	FAN, DUCT
30A	5304512409 Frigidaire Air Conditioner Transformer
31	5304512422 Frigidaire Clamp
32	DRIP, TRAY
32A	5304512423 Frigidaire Air Conditioner Capacitor
33	EVAPORATOR, 34
34	5304512372 Frigidaire Holder
35	WCI 5304517038
35A	TUBE, CAPILLARY
35B	5304505947 Frigidaire Sensor
36	5304529384 Frigidaire Valve
37	TUBE, DISCHARGE
38	5304512426 Frigidaire Air Conditioner Compressor
39	SUCTION PIPE, ASSYMBLY
40	CONDENSER, ASSYMBLY
41	BASE
42	DRAIN, VALVE, 42
43A	SENSOR
43	CABNET, ASSYMBLY
44	5304529391 Frigidaire Instalation
45	FRAME, LEFT
46	5304529393 Frigidaire Top Assembly
47	FRAME, RIGHT
47A	SCREWS
50	5304529396 Frigidaire Seal
