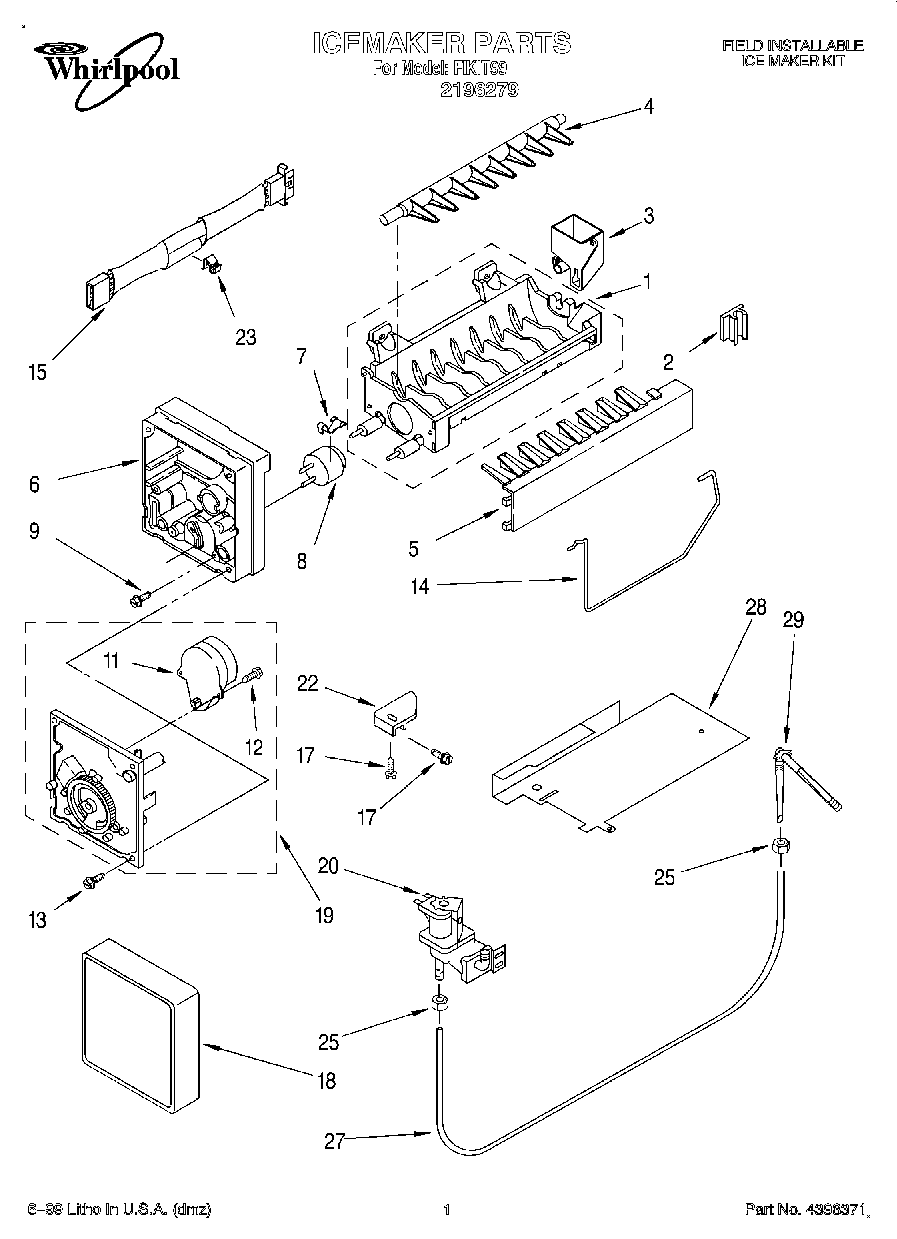

FIKIT99 01 – SECTION

Products

Position	Product
	Instruction Booklet
	Modular Icemaker Service Sheet
1	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
2	W11501419 Whirlpool Refrigerator Clip
3	WP628356 Whirlpool Refrigerator Fill Cup
4	WP627843 Whirlpool Refrigerator Ejector Arm
5	WP2182124 Whirlpool Refrigerator Stripper Arm
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	WP2315522 Whirlpool Refrigerator Clip
8	Cement Alumilastic)
8	WP627985 Whirlpool Icemaker Cycling Thermostat
9	8533917 Whirlpool Refrigerator Screw
11	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
12	489136 Whirlpool Refrigerator Screw
13	WP681249 Whirlpool Screw Assembly
14	WP627792 Whirlpool Refrigerator Shut Off Arm
15	WP2187464 Whirlpool Refrigerator Wire Harness
18	WPW10289690 Whirlpool Ice Maker Cover
20	VALVE-INLT
22	W11500948 Whirlpool Refrigerator Bracket
23	WP628379 Whirlpool Refrigerator Clip
25	WP627018 Whirlpool Refrigerator Nut
27	W10823511 Whirlpool Refrigerator Water Tube
28	2256178 Whirlpool Shield Assembly
29	Accessory Bag, Inside Parts
29	Tube, Water Inlet
29	WP1106508 Whirlpool Refrigerator Gasket
29	WPW10141625 Whirlpool Refrigerator Screw Assembly
29	WP2196157 Whirlpool Fill Tube
29	Trim Ice Cube Pan
29	PAN-ICE
29	WP488163 Whirlpool Refrigerator Screw
29	WP488878 Whirlpool Refrigerator Tube Clamp
29	4387491 Whirlpool Refrigerator Insert
29	WP489478 Whirlpool Refrigerator Screw
