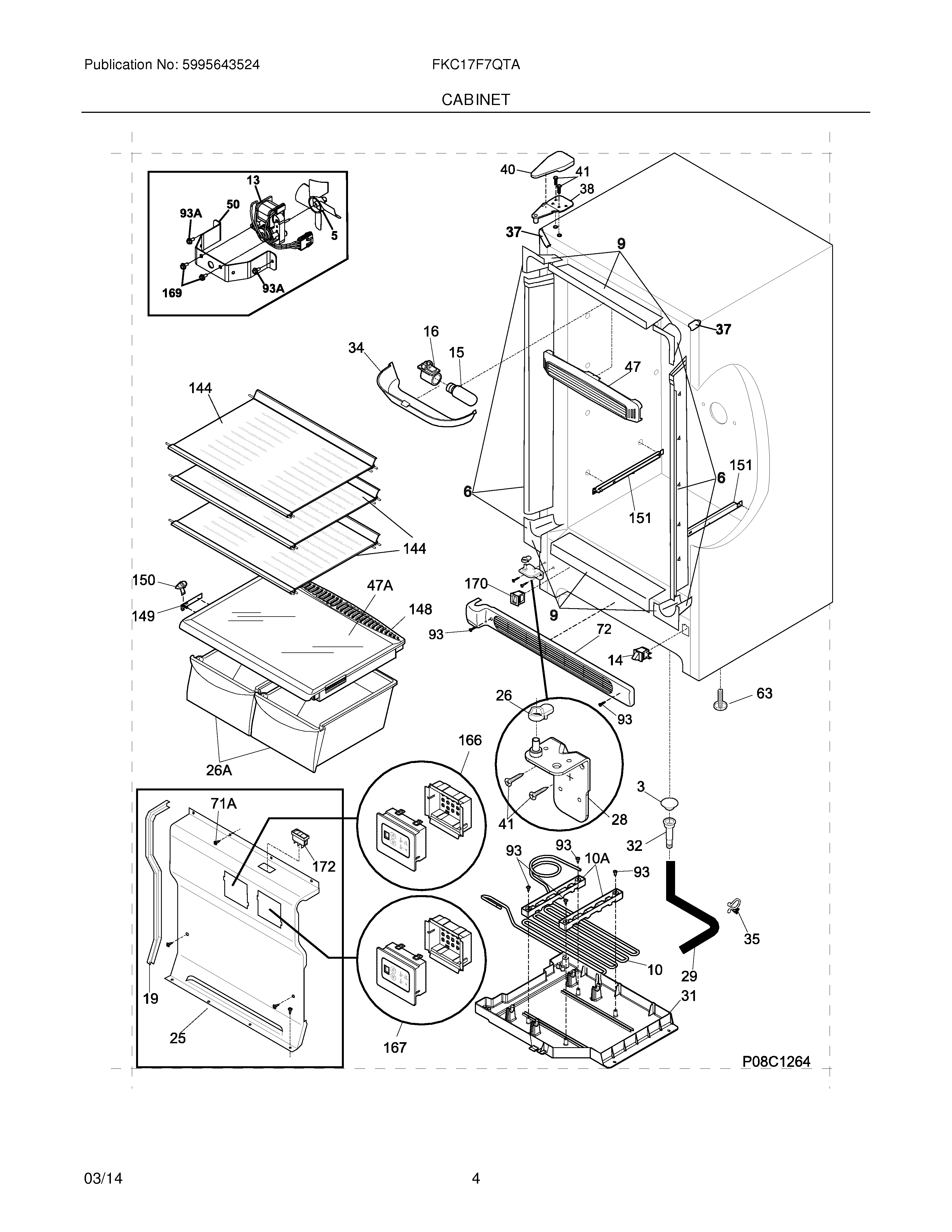

FKC17F7QTA 05 – CABINET

FKC17F7QTA 05 – CABINET

Written by

in

FKC17F7QTA 05 – CABINET

Products

PositionProduct
NI297048000 Frigidaire Refrigerator Screw
NIWCI 240494008
NI216502400 Frigidaire Refrigerator Grommet Unit
NI297001704 Frigidaire Refrigerator Insulation
NI297283900 Frigidaire Refrigerator Hinge-Bottom
NIWCI 216503300
NIBracket,LH leg levelor
NIWCI 5303313703
NIBracket,RH leg levelor
3216503100 Frigidaire Refrigerator Screen-Drain
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 297200600
9297200100 Frigidaire Refrigerator W/Corner Breaker Kit
10AWCI 297177400
10WCI 297334500
13EVAP FAN MOTOR – 115V
14216822900 Frigidaire Refrigerator Switch
155304517886 Frigidaire Refrigerator Light
16297139500 Frigidaire Refrigerator Socket
19WCI 216204900
25WCI 297098853
26WCI 297248200
26A216959900 Frigidaire Refrigerator Crisper Pan
28WCI 297283901
295304512272 Frigidaire Hose Drain
31297165800 Frigidaire Refrigerator Drain Pan
325304511843 Frigidaire Refrigerator Sleeve
34WCI 297184400
35216273000 Frigidaire Refrigerator Strap
37297273906 Frigidaire Refrigerator Corner Trim Cabinet
38297283803 Frigidaire Freezer Upper Door Hinge
40WCI 297164405
41240578902 Frigidaire Screw Mounting Hinge
47ACRISPER COVER GLASS INSERT
47297192903 Frigidaire Refrigerator Baffle
50216394050 Frigidaire Refrigerator Bracket
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71AScrew,8-18AB x.470 QX
72297036907 Frigidaire Refrigerator Grille Kickplate
93A241853202 Frigidaire Refrigerator Screw
93216858001 Frigidaire Refrigerator Screw
144WCI 297324500
148WCI 216995501
1505304492617 Frigidaire Refrigerator Humidity Damper Kit
151216988201 Frigidaire Refrigerator Crisper Cover Support
151216988200 Frigidaire Refrigerator Support-Crspr Cover
166297282800 Frigidaire Refrigerator Control
167297282700 Frigidaire Refrigerator Electronic Control
169216912401 Frigidaire Refrigerator Screw
170297280403 Frigidaire Refrigerator Valve
172WCI 297251201
