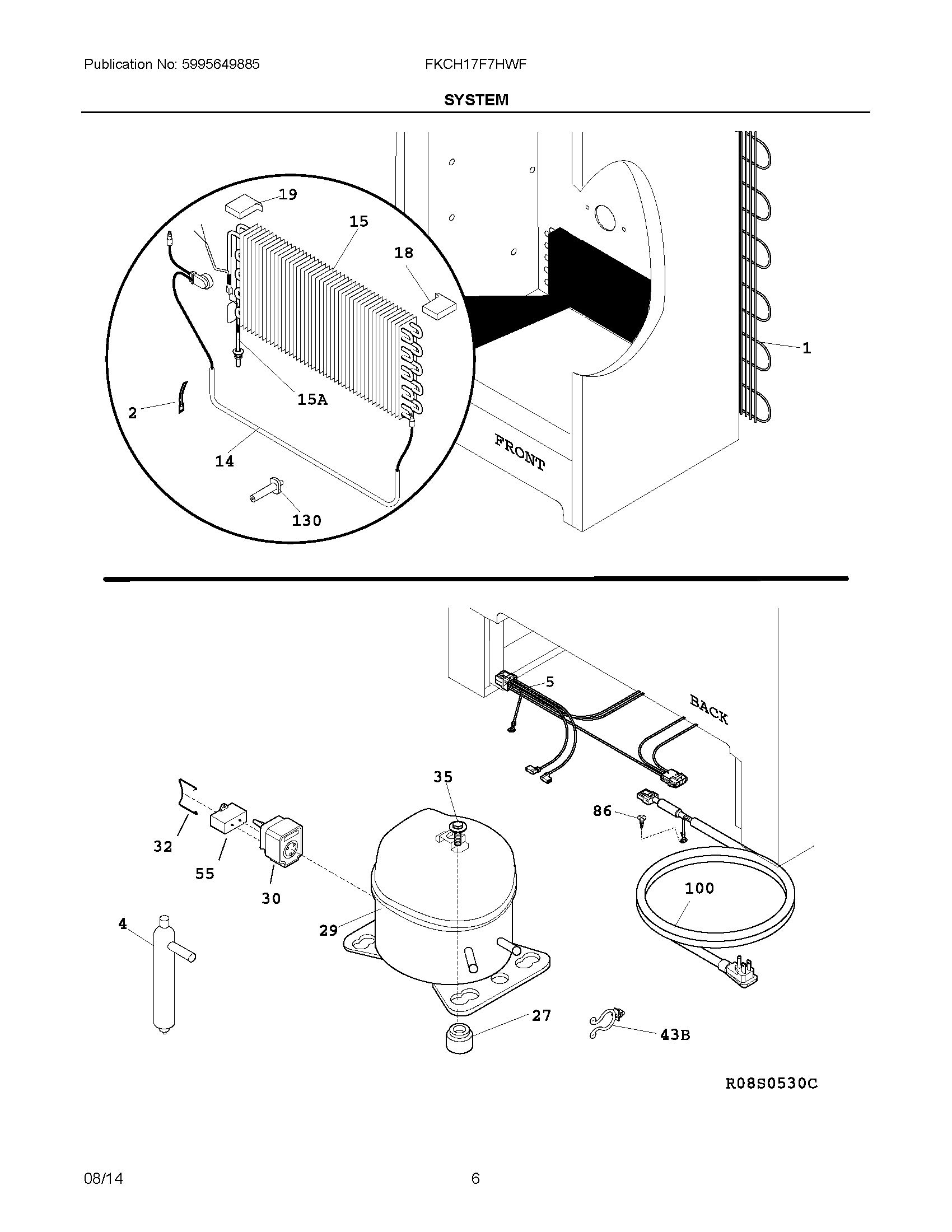

FKCH17F7HWF 04 – SYSTEM

Written by

Products

Position	Product
NI	GUARD-WIRE
NIA	216695300 Frigidaire Refrigerator Bimetal Relay
NI	297014702 Frigidaire Refrigerator Suction Line Plug
NI	WCI 216502500
NI	WCI 216683900
NI	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NI	241853202 Frigidaire Refrigerator Screw
NI	216858001 Frigidaire Refrigerator Screw
1	5300083897 Frigidaire Refrigerator Condenser P1 O/S2
2	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 297244300
14	WCI 297222901
15A	297217900 Frigidaire Refrigerator Suction Tube
15	297414901 Frigidaire Refrigerator Evaporator
18	297078701 Frigidaire Refrigerator Insulator-Evaporator
19	297078801 Frigidaire Refrigerator Evaporator Insulator
27	297293302 Frigidaire Refrigerator Grommet
29	5304500086 Frigidaire Refrigerator Compressor Kit W/ D
30	216954235 Frigidaire Refrigerator Compressor Freezer Controller
32	297359700 Frigidaire Clip
35	297368501 Frigidaire Bolt
43B	297315800 Frigidaire Refrigerator Clip
55	WCI 297286802
86	216036601 Frigidaire Refrigerator Screw
100	297366805 Frigidaire Refrigerator Cord
130	297244700 Frigidaire Refrigerator Support
