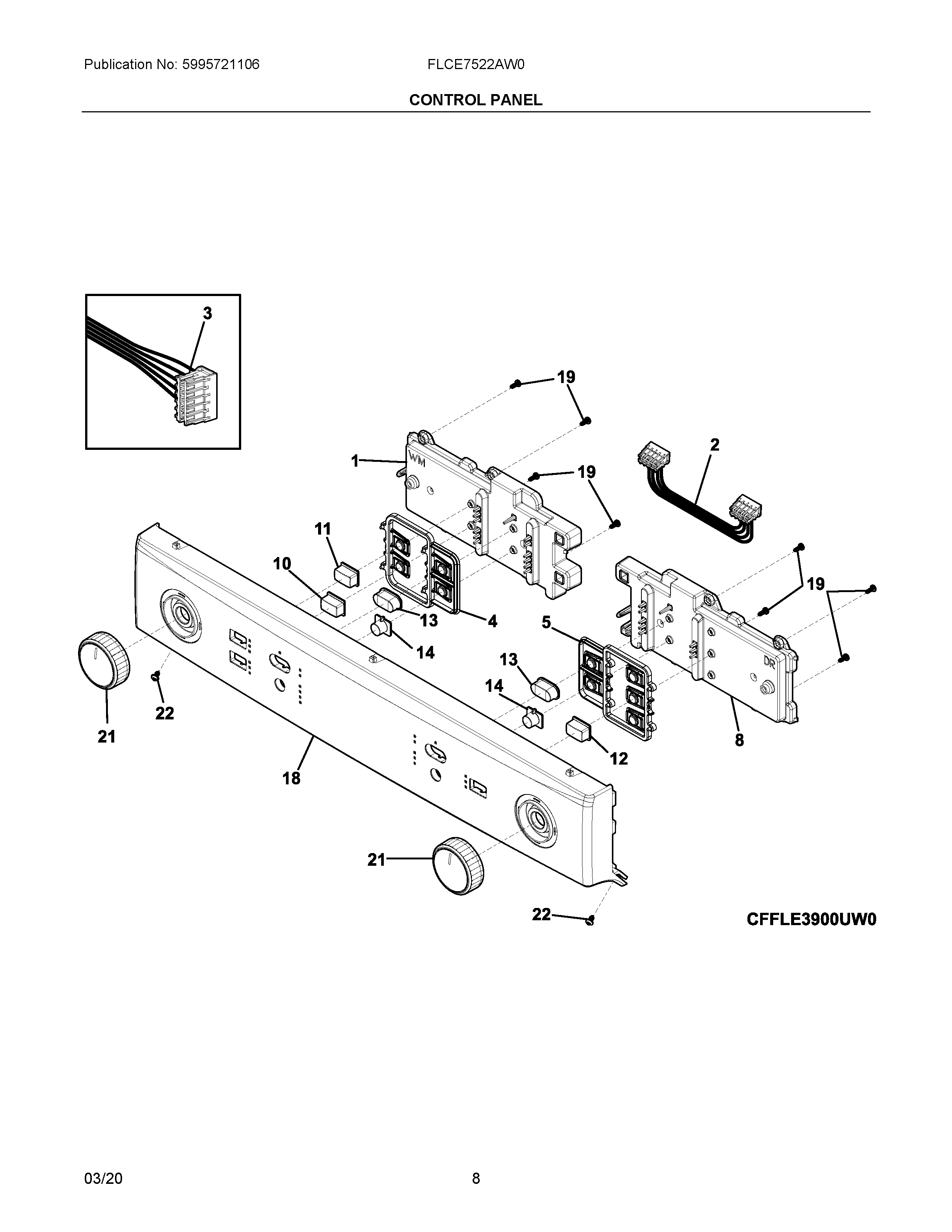

FLCE7522AW0 04 – CONTROL PANEL

FLCE7522AW0 04 – CONTROL PANEL

Written by

in

FLCE7522AW0 04 – CONTROL PANEL

Products

PositionProduct
1BOARD ASSEMBLY
25304520297 Frigidaire Wiring Harness
35304523159 Frigidaire Wiring Harness
45304515821 Frigidaire Support
55304515822 Frigidaire Support Assembly
8BOARD ASSEMBLY
105304524439 Frigidaire Button
11BUTTON, WASH TEMP, WHITE
125304524440 Frigidaire Button
135304515796 Frigidaire Button
145304524441 Frigidaire Button
185304524442 Frigidaire Console Assembly
195304505441 Frigidaire Screw
215304524434 Frigidaire Knob Assembly
22131168200 Frigidaire Dryer Screw
