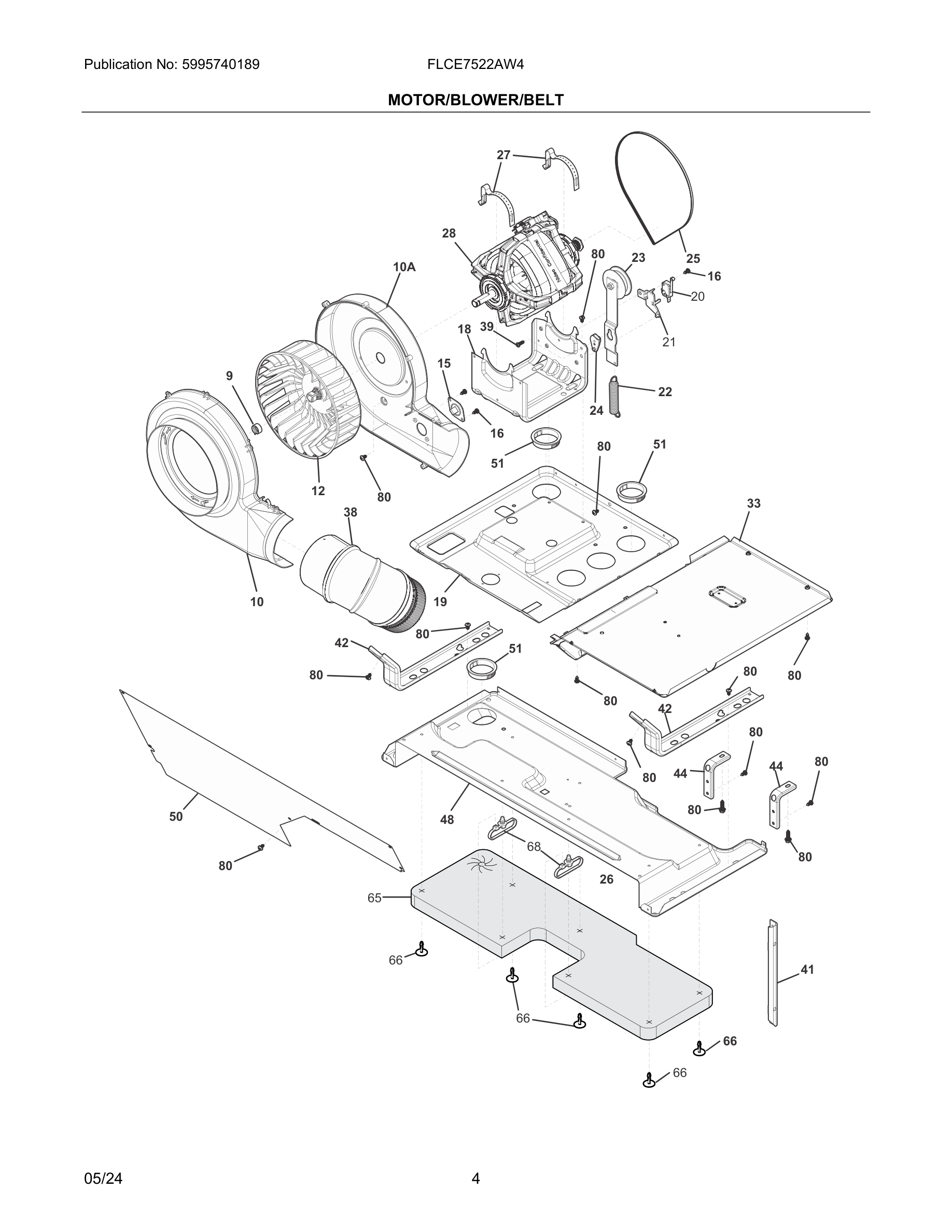

FLCE7522AW4 05 – MOTOR/BLOWER/BELT

FLCE7522AW4 05 – MOTOR/BLOWER/BELT

Written by

in

FLCE7522AW4 05 – MOTOR/BLOWER/BELT

Products

PositionProduct
*134402900 Frigidaire Screw
95304488479 Frigidaire Washer Hose Clamp
105304523176 Frigidaire Housing Assembly
10A137551800 Frigidaire Housing
12BLOWER WHEEL
15#134587700 Frigidaire Washer Control Thermistor
16131243700 Frigidaire Screw
18WCI 131367101
19137490900 Frigidaire Pan
20#5304521496 Frigidaire Limit Switch
215304521495 Frigidaire Bracket
223205241 Frigidaire Idler Spring
235304526204 Frigidaire Idler Arm Assembly
245304524456 Frigidaire Spacer
25BELT-DRYER LC
27134242400 Frigidaire Washer Clamp Assembly
28*#5304523159 Frigidaire Wiring Harness
28#134196602 Frigidaire Washer Dryer Motor
335304515828 Frigidaire Baffle
33*137212300 Frigidaire Gasket
36#PUMP ASSEMBLY
385304521383 Frigidaire Elbow
39131205100 Frigidaire Screw
41131091300 Frigidaire Bracket
42137304710 Frigidaire Bracket
443204326 Frigidaire Bracket Assembly
48Pan, LC Dryer, bottom
505304488478 Frigidaire Cover
51131453000 Frigidaire Bushing
65Sound Insulator, pack, top
66CLIP, INSULATION, LONG, SINGLE
685304524498 Frigidaire Zip Tie
80131168200 Frigidaire Dryer Screw
