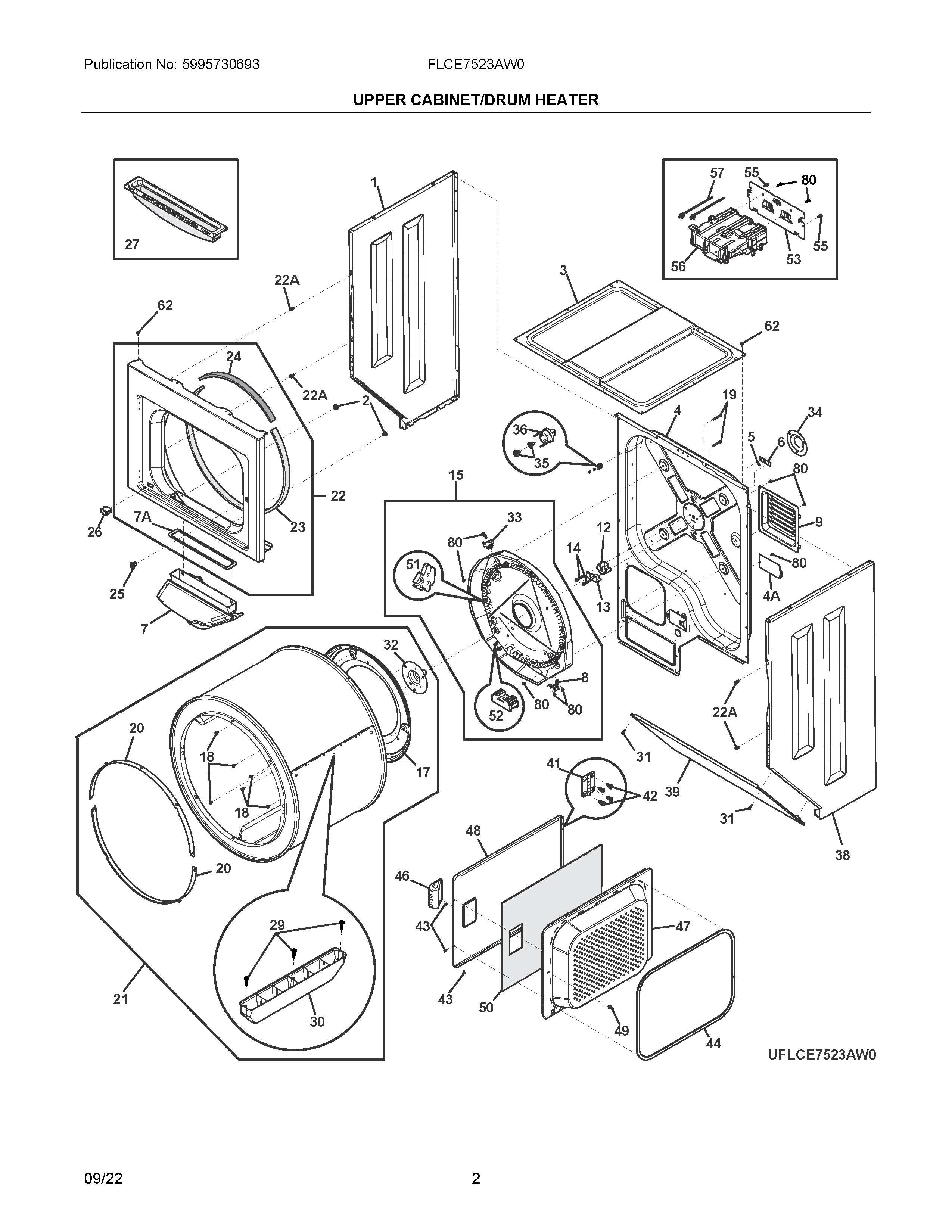

FLCE7523AW0 02 – UPPER CABINET/DRUM HEATER
Written by
in
FLCE7523AW0 02 – UPPER CABINET/DRUM HEATER
Products
Position
Product
NIC
5304531905 Frigidaire Harness
NIA
134178901 Frigidaire Screw
NIB
WCI 5304531926
NIA
5304523160 Frigidaire Wiring Harness
NIA
WCI 5304531927
NIA
5304505258 Frigidaire Harness
NIB
WCI 5304531899
1
137510410 Frigidaire Panel
2
131362400 Frigidaire Fastener
3
131883301 Frigidaire Panel
4
PANEL, REAR, LC DRYER
4A
137389701 Frigidaire Cover
5
5303281019 Frigidaire Ball Assembly
6
5303281020 Frigidaire Ball Clip
7A
131295200 Frigidaire Seal
7
DUCT ASSEMBLY, AIR, W/FOAM SEAL, AND GUTTER
8
THERMAL LIMITER – GAS
9
PANEL, MOTOR ACCESS
12
131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13
131724301 Frigidaire Dryer Drum Bearing Bracket
14
131205400 Frigidaire Screw
15
137392702 Frigidaire Dryer Heater Assembly
17
3204254 Frigidaire Baffle Assembly
18
5304502598 Frigidaire Screw
19
5304523188 Frigidaire Screw
20
137513300 Frigidaire Dryer Drum Glide
21
DRUM ASSEMBLY
22
FRONT PANEL, WELD, WHITE, W/FELT SEALS, AND GUTTERS
22A
137362600 Frigidaire Pin
23
5303937183 Frigidaire Dryer Lower Front Felt Seal
24
5303937182 Frigidaire Dryer Drum Upper Felt Seal with Adhesive
25
131658800 Frigidaire Dryer Door Catch Repair Kit
26
134813663 Frigidaire Washer Switch
27
LINT FILTER
29
131382300 Frigidaire Screw-VANE
30
5304515811 Frigidaire Vane
31
131202300 Frigidaire Screw
32
131777700 Frigidaire Dryer Bearing Drum
33
SAFETY THERMSTAT
34
5304506372 Frigidaire Cover Plate
35
131892100 Frigidaire Screw
36
134120900 Frigidaire Dryer Limiter Thermal
38
137510510 Frigidaire Panel
39
137546910 Frigidaire Panel
41
134222900 Frigidaire Dryer Door Hinge
42
134156200 Frigidaire Screw
43
137361500 Frigidaire Screw 8-18X0.711 Co
44
137551901 Frigidaire Gasket
46
131789400 Frigidaire Handle
47
WCI 137365115
48
137408403 Frigidaire Panel Assembly
49
5303207102 Frigidaire Door Strike
50
134535300 Frigidaire Insulator
51
131472100 Frigidaire Dryer Insulator Heater Coil
52
3202786 Frigidaire Terminal Block
53
5304515761 Frigidaire Cover Assembly
54
131205100 Frigidaire Screw
55
137511100 Frigidaire Screw
56
5304531911 Frigidaire Board
57
5304515894 Frigidaire Clip
62
131302800 Frigidaire Drum Vane Screw
80
131168200 Frigidaire Dryer Screw
←
CTF19GBDR 0
