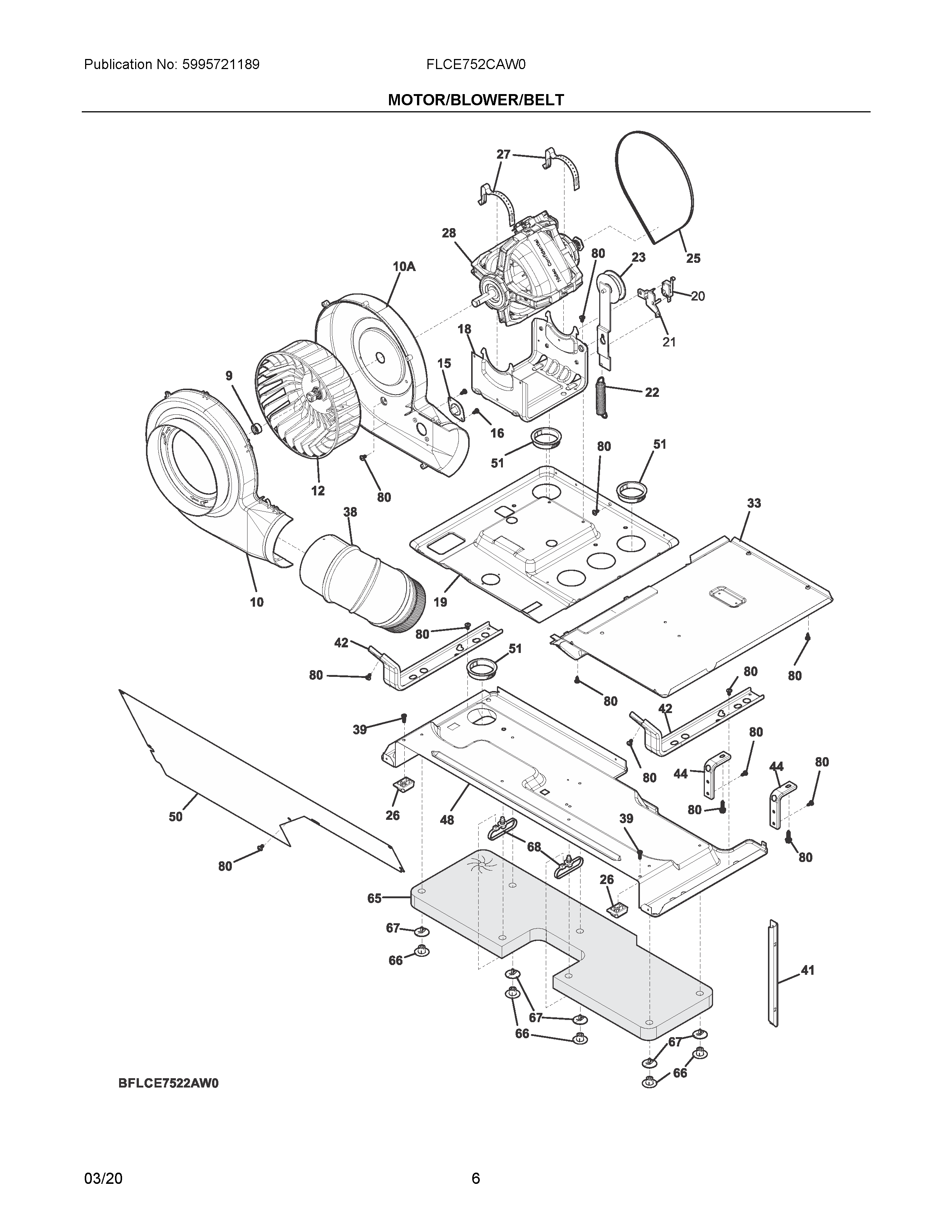

FLCE752CAW0 03 – MOTOR/BLOWER/BELT

Products

Position	Product
NI	134402900 Frigidaire Screw
NIA	137212300 Frigidaire Gasket
NIA	5304523159 Frigidaire Wiring Harness
9	5304488479 Frigidaire Washer Hose Clamp
10A	137551800 Frigidaire Housing
10	5304523176 Frigidaire Housing Assembly
12	BLOWER WHEEL
15	134587700 Frigidaire Washer Control Thermistor
16	131243700 Frigidaire Screw
18	131367110 Frigidaire Assembly Motor Cradle
19	137490900 Frigidaire Pan
20	5304521496 Frigidaire Limit Switch
21	5304521495 Frigidaire Bracket
22	3205241 Frigidaire Idler Spring
23	IDLER ARM ASSY
25	BELT-DRYER LC
26	137511300 Frigidaire Block
27	134242400 Frigidaire Washer Clamp Assembly
28	134196602 Frigidaire Washer Dryer Motor
33	5304515828 Frigidaire Baffle
36	PUMP ASSEMBLY
38	5304521383 Frigidaire Elbow
39	131205100 Frigidaire Screw
41	131091300 Frigidaire Bracket
42	137304710 Frigidaire Bracket
44	3204326 Frigidaire Bracket Assembly
48	PAN, BOTTOM LC DRYER
50	5304488478 Frigidaire Cover
51	131453000 Frigidaire Bushing
65	5304524477 Frigidaire Sound Insulator
66	WCI 5304524483
67	WCI 5304524484
68	5304524498 Frigidaire Zip Tie
80	131168200 Frigidaire Dryer Screw
