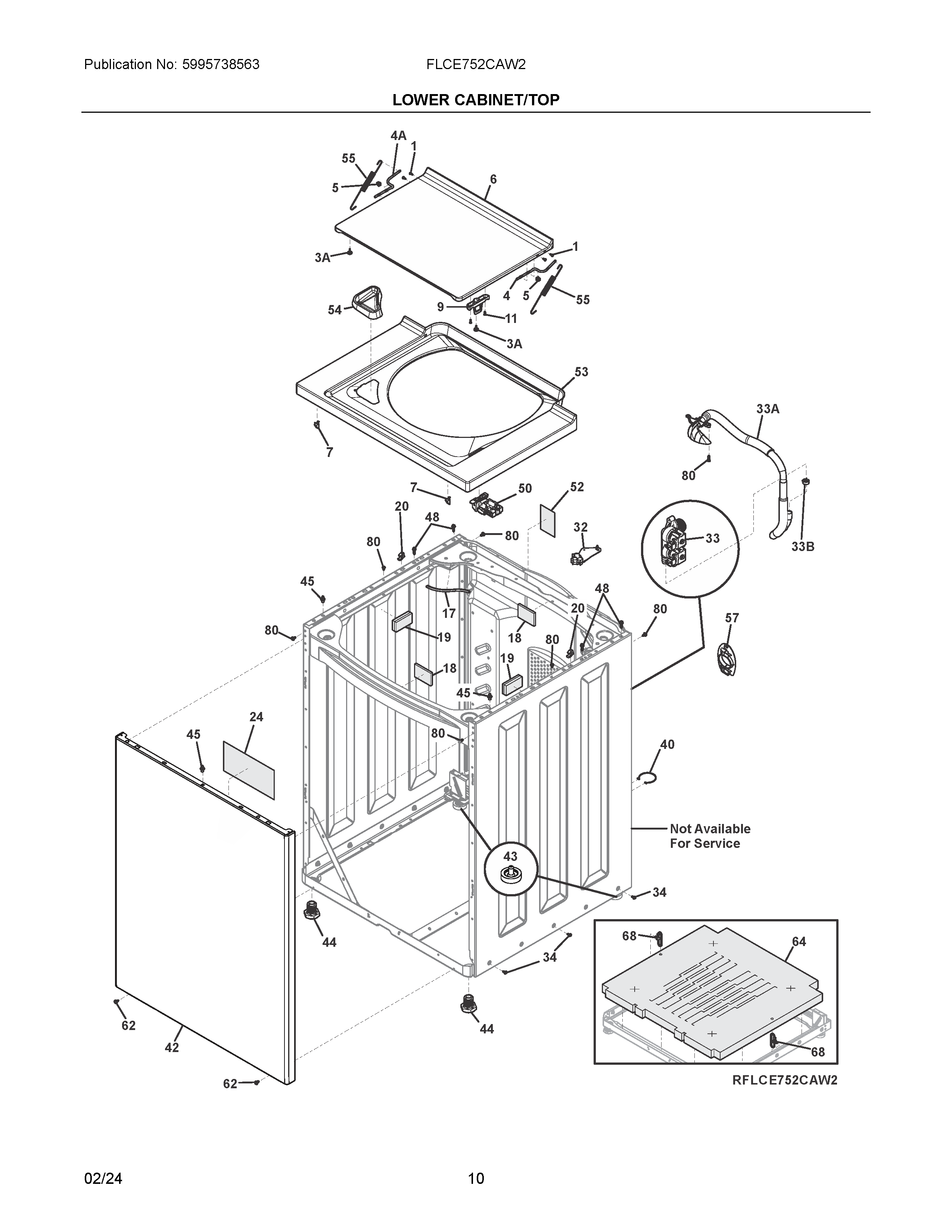

FLCE752CAW2 05 – LOWER CABINET/TOP

Products

PositionProduct
NIA134154100 Frigidaire Screw 10-32 x 0.375 Co
NI131205500 Frigidaire Screw
NI5304523160 Frigidaire Wiring Harness
NIAA131731500 Frigidaire Fastener
1134203900 Frigidaire Scr 6-32X.337 Pph D
3A134075500 Frigidaire Bumper-LID
4137469900 Frigidaire Hinge Bar
4A137470900 Frigidaire Hinge Bar
55304488483 Frigidaire GROMMET
65303212872 Frigidaire Lid
73205821 Frigidaire Clip
9137513712 Frigidaire Striker
113204368 Frigidaire Screw-Strike
17137360821 Frigidaire Protector
18PAD, CUSHION
195304515731 Frigidaire Pad
203204374 Frigidaire Pin
24134926600 Frigidaire Damper
325304500487 Frigidaire Bracket
335304515818 Frigidaire Washer Water Valve
33B5304488479 Frigidaire Washer Hose Clamp
33AFILL HOSE
405303309503 Frigidaire Clip
425304501141 Frigidaire Panel
43131422200 Frigidaire P-1 Self Level Leg Pad
445304532058 Frigidaire Leg Levelling
45131346401 Frigidaire Pin
485304523188 Frigidaire Screw
50LID LOCK
52131931202 Frigidaire Dampener
53137190810 Frigidaire Panel
545304488476 Frigidaire Dispenser
55134890500 Frigidaire Spring
57134641100 Frigidaire Bracket
62131302800 Frigidaire Drum Vane Screw
645304524476 Frigidaire Sound Insulator
685304524498 Frigidaire Zip Tie
80131168200 Frigidaire Dryer Screw
