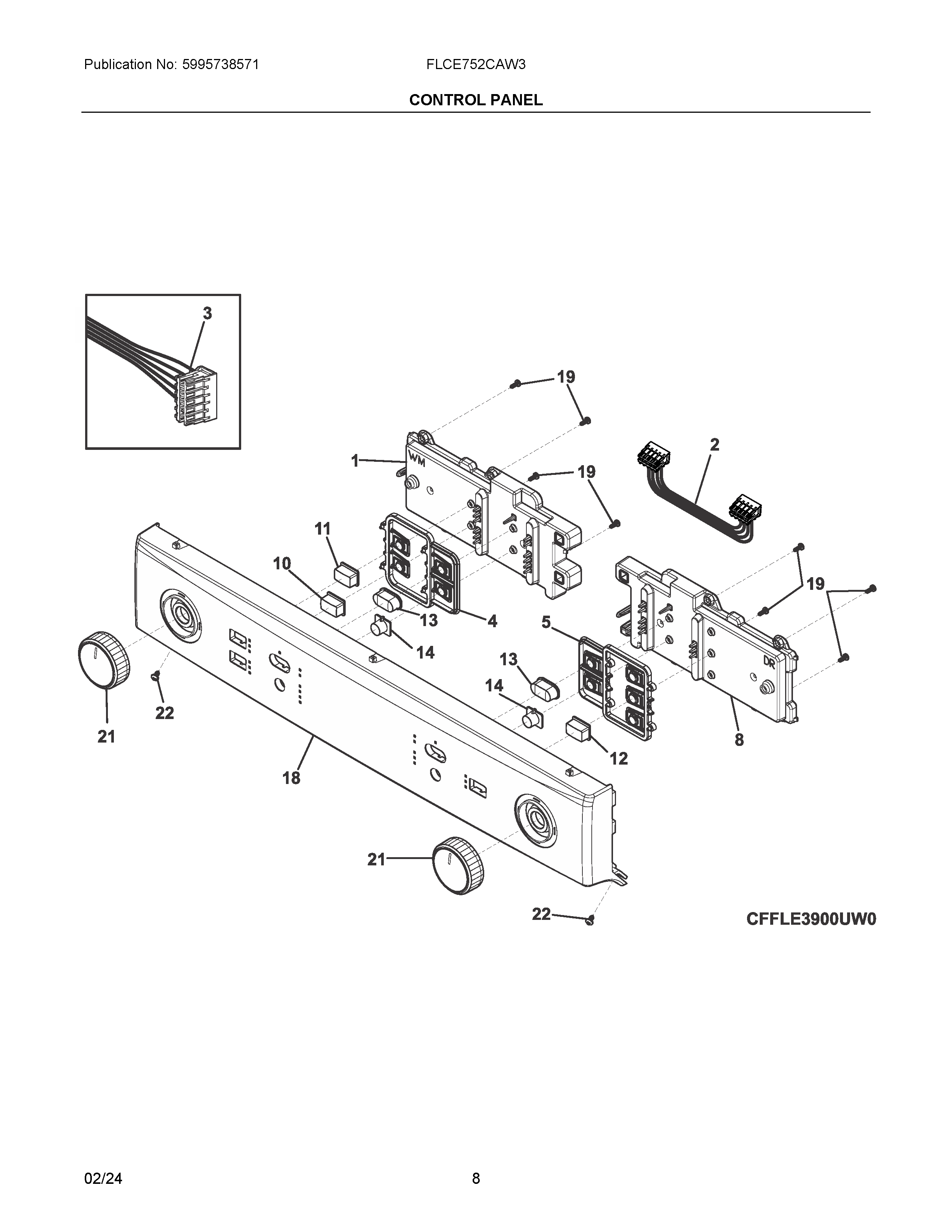

FLCE752CAW3 04 – CONTROL PANEL

Products

Position	Product
1	BOARD ASSEMBLY
2	5304520297 Frigidaire Wiring Harness
3	5304523159 Frigidaire Wiring Harness
4	5304515821 Frigidaire Support
5	5304515822 Frigidaire Support Assembly
8	BOARD ASSEMBLY
10	5304524439 Frigidaire Button
11	BUTTON, WASH TEMP, WHITE
12	5304524440 Frigidaire Button
13	5304515796 Frigidaire Button
14	5304524441 Frigidaire Button
18	5304530032 Frigidaire Console
19	5304505441 Frigidaire Screw
21	5304524434 Frigidaire Knob Assembly
22	131168200 Frigidaire Dryer Screw
