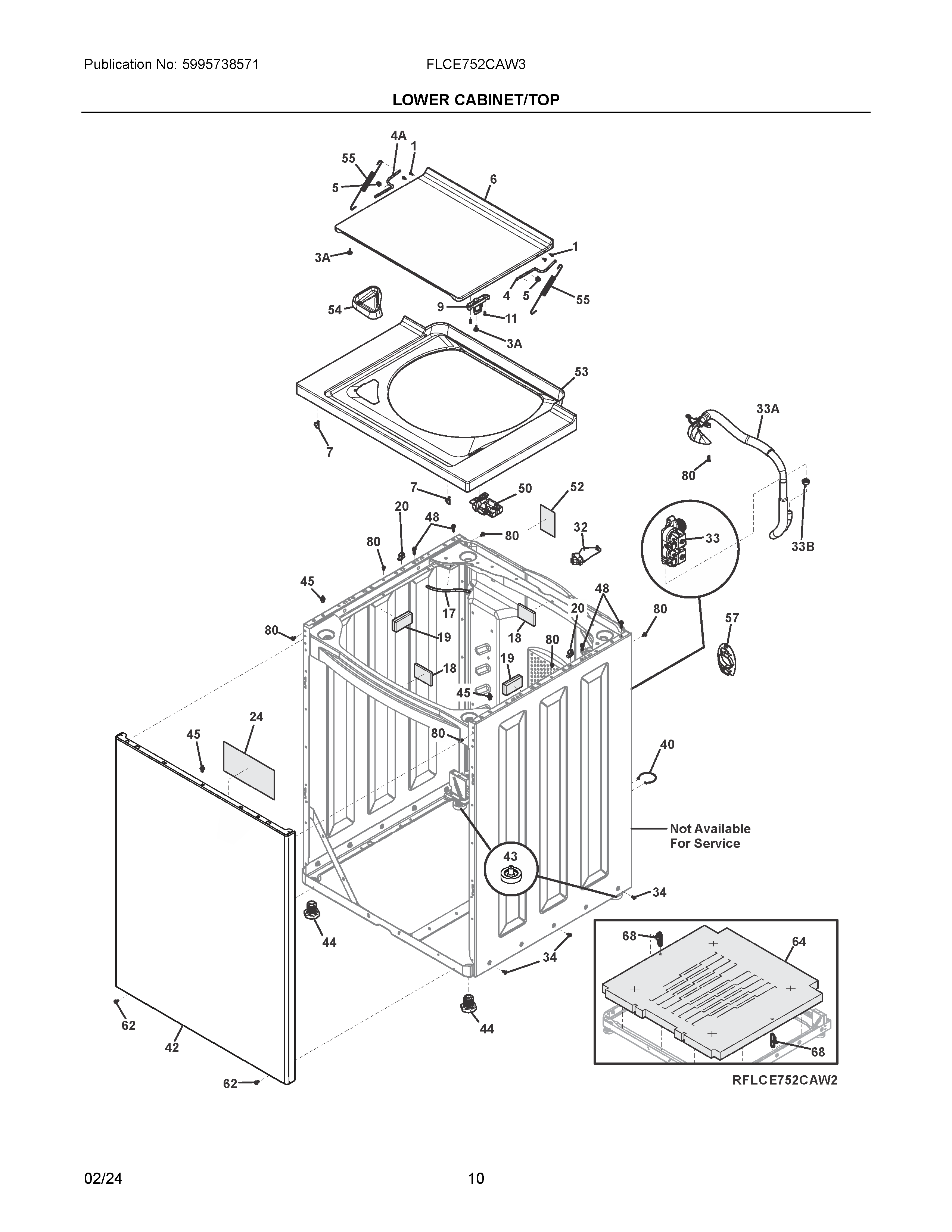

FLCE752CAW3 05 – LOWER CABINET/TOP

Products

Position	Product
NIA	134154100 Frigidaire Screw 10-32 x 0.375 Co
NI	131205500 Frigidaire Screw
NI	5304523160 Frigidaire Wiring Harness
NIAA	131731500 Frigidaire Fastener
1	134203900 Frigidaire Scr 6-32X.337 Pph D
3A	134075500 Frigidaire Bumper-LID
4	137469900 Frigidaire Hinge Bar
4A	137470900 Frigidaire Hinge Bar
5	5304488483 Frigidaire GROMMET
6	5303212872 Frigidaire Lid
7	3205821 Frigidaire Clip
9	137513712 Frigidaire Striker
11	3204368 Frigidaire Screw-Strike
17	137360821 Frigidaire Protector
18	PAD, CUSHION
19	5304515731 Frigidaire Pad
20	3204374 Frigidaire Pin
24	134926600 Frigidaire Damper
32	5304500487 Frigidaire Bracket
33	5304515818 Frigidaire Washer Water Valve
33B	5304488479 Frigidaire Washer Hose Clamp
33A	FILL HOSE
40	5303309503 Frigidaire Clip
42	5304501141 Frigidaire Panel
43	131422200 Frigidaire P-1 Self Level Leg Pad
44	5304532058 Frigidaire Leg Levelling
45	131346401 Frigidaire Pin
48	5304523188 Frigidaire Screw
50	LID LOCK
52	131931202 Frigidaire Dampener
53	137190810 Frigidaire Panel
54	5304488476 Frigidaire Dispenser
55	134890500 Frigidaire Spring
57	134641100 Frigidaire Bracket
62	131302800 Frigidaire Drum Vane Screw
64	5304524476 Frigidaire Sound Insulator
68	5304524498 Frigidaire Zip Tie
80	131168200 Frigidaire Dryer Screw
