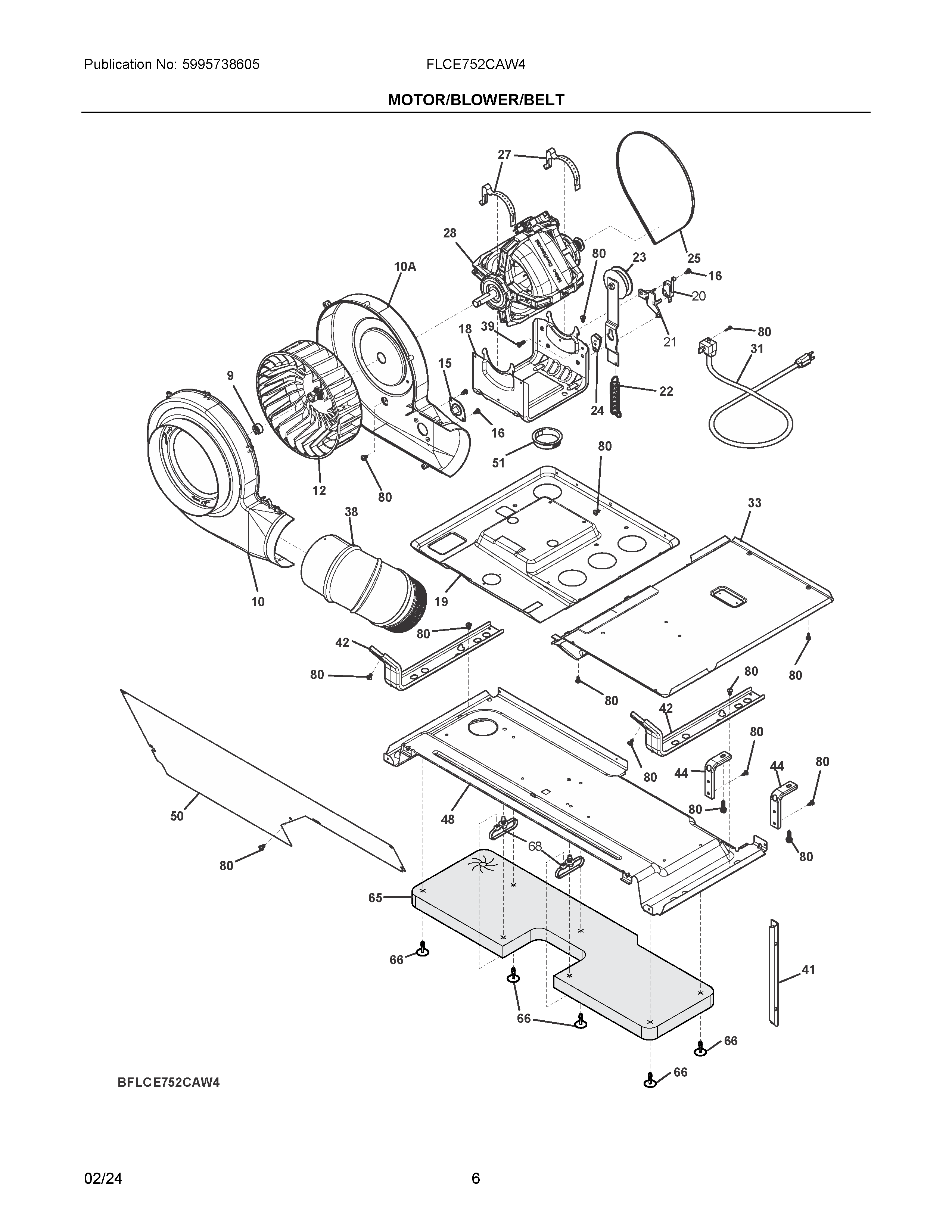

FLCE752CAW4 03 – MOTOR/BLOWER/BELT

Products

Position	Product
NI	134154100 Frigidaire Screw 10-32 x 0.375 Co
NI	134402900 Frigidaire Screw
NIA	137212300 Frigidaire Gasket
NIA	5304523159 Frigidaire Wiring Harness
NI	5304523188 Frigidaire Screw
9	5304488479 Frigidaire Washer Hose Clamp
10A	137551800 Frigidaire Housing
10	5304523176 Frigidaire Housing Assembly
12	BLOWER WHEEL
15	134587700 Frigidaire Washer Control Thermistor
16	131243700 Frigidaire Screw
18	WCI 131367101
19	137490900 Frigidaire Pan
20	5304521496 Frigidaire Limit Switch
21	5304521495 Frigidaire Bracket
22	3205241 Frigidaire Idler Spring
23	5304526204 Frigidaire Idler Arm Assembly
24	5304524456 Frigidaire Spacer
25	BELT-DRYER LC
27	134242400 Frigidaire Washer Clamp Assembly
28	134196602 Frigidaire Washer Dryer Motor
31	WCI 137110200
33	5304515828 Frigidaire Baffle
38	5304521383 Frigidaire Elbow
39	131205100 Frigidaire Screw
41	131091300 Frigidaire Bracket
42	137304710 Frigidaire Bracket
44	3204326 Frigidaire Bracket Assembly
48	Pan, LC Dryer, bottom
50	5304488478 Frigidaire Cover
51	131453000 Frigidaire Bushing
65	Sound Insulator, pack, top
66	CLIP, INSULATION, LONG, SINGLE
68	5304524498 Frigidaire Zip Tie
80	131168200 Frigidaire Dryer Screw
